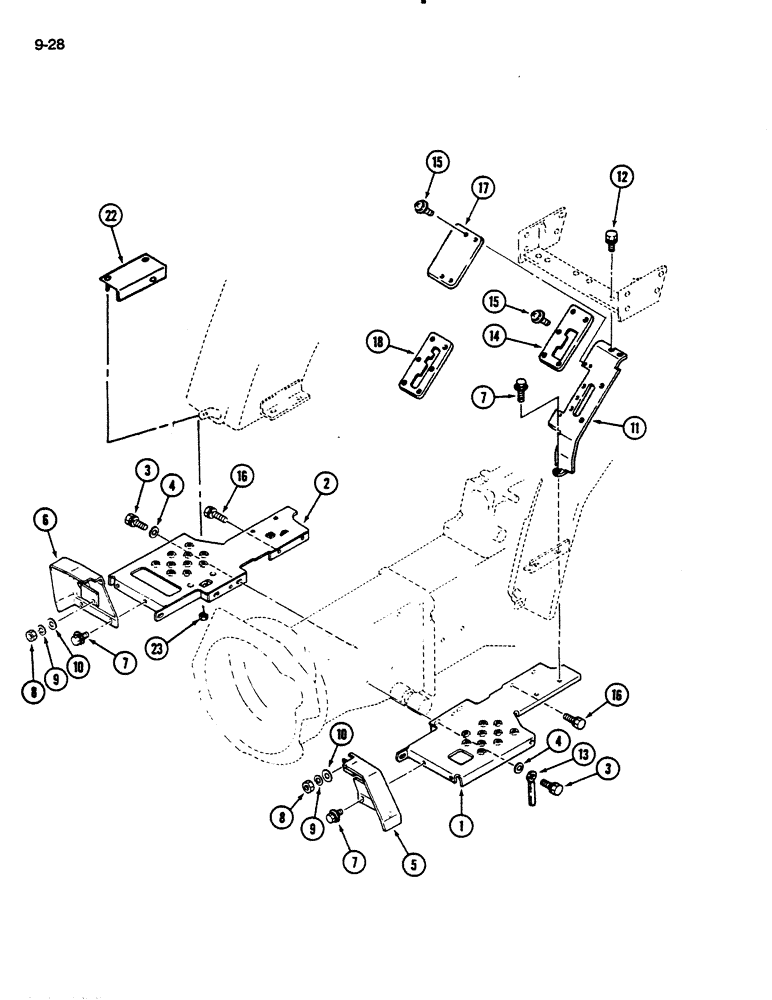

Запчасти Case IH 235 (9-28) - STEPS AND SUPPORTS, HYDROSTATIC TRANSMISSION (09) - CHASSIS/ATTACHMENTS

1

1269671C2

PLATE ASSY.

STEP - mounting, left

1шт.

2

1981390C1

STEP

- tractor, right (Replaces 1269671C2)

1шт.

3

1269790C1

BOLT,Hex M10 x 25mm

BOLT - hex, with washer, 25 mm long

6шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

5шт.

5

1273598C1

SUPPORT ASSY.

SUPPORT - step, left

1шт.

6

1269674C1

SUPPORT ASSY.

SUPPORT - step, right

1шт.

7

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

5шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- hardened, 9 x 17 x 2 mm

5шт.

8

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25

2шт.

9

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

11

1962645C1

COVER

- left

1шт.

12

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

13

1273580C1

CLAMP

- hanger

1шт.

14

1962647C1

PLATE ASSY.

PLATE - shift (Without mid PTO)

1шт.

15

30422R1

SCREW,Cross Pan Hd, M6 x 16

- pan head cross recess, M6 x 16 mm

9шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

9шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9шт.

16

1269789C1

BOLT,Hex M10 x 20mm

BOLT - hex with washer, 20 mm long

2шт.

17

1962585C1

COVER ASSY

COVER - side

1шт.

18

1962646C1

PLATE ASSY.

PLATE - shift (With mid PTO)

1шт.

22

1981389C1

COVER ASSY

COVER - step, right

1шт.

23

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.
