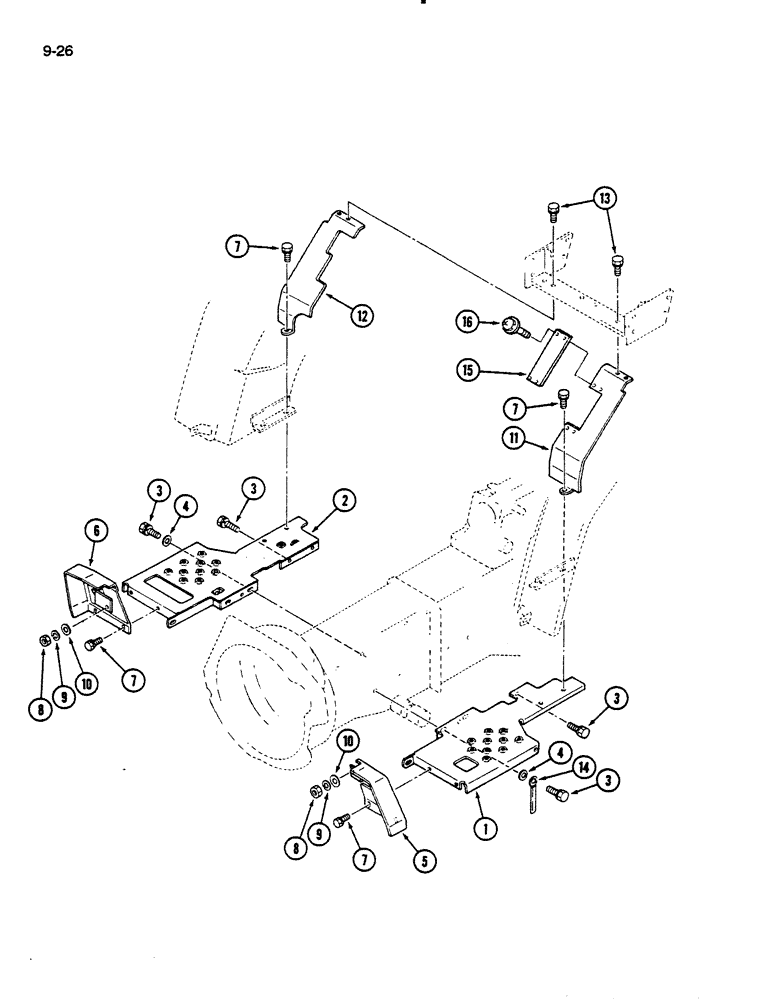

Запчасти Case IH 235 (9-26) - STEPS AND SUPPORTS, MECHANICAL TRANSMISSION (09) - CHASSIS/ATTACHMENTS

1

1269671C2

PLATE ASSY.

STEP - mounting, left

1шт.

2

1269672C2

PLATE ASSY.

STEP - mounting, right

1шт.

3

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

892-11010

LOCK WASHER,M10

8шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

5шт.

5

1273598C1

SUPPORT ASSY.

SUPPORT - step, left

1шт.

6

1269674C1

SUPPORT ASSY.

SUPPORT - step, right

1шт.

7

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm

6шт.

8

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12

2шт.

9

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

11

1962584C1

COVER ASSY

SUPPORT - rear fender, left

1шт.

12

1269676C1

SUPPORT ASSY.

SUPPORT - rear fender, right

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

1273580C1

CLAMP

- hanger

1шт.

15

1962585C1

COVER ASSY

COVER - side

1шт.

16

30422R1

SCREW,Cross Pan Hd, M6 x 16

- pan head cross recess, M6 x 16 mm

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.
