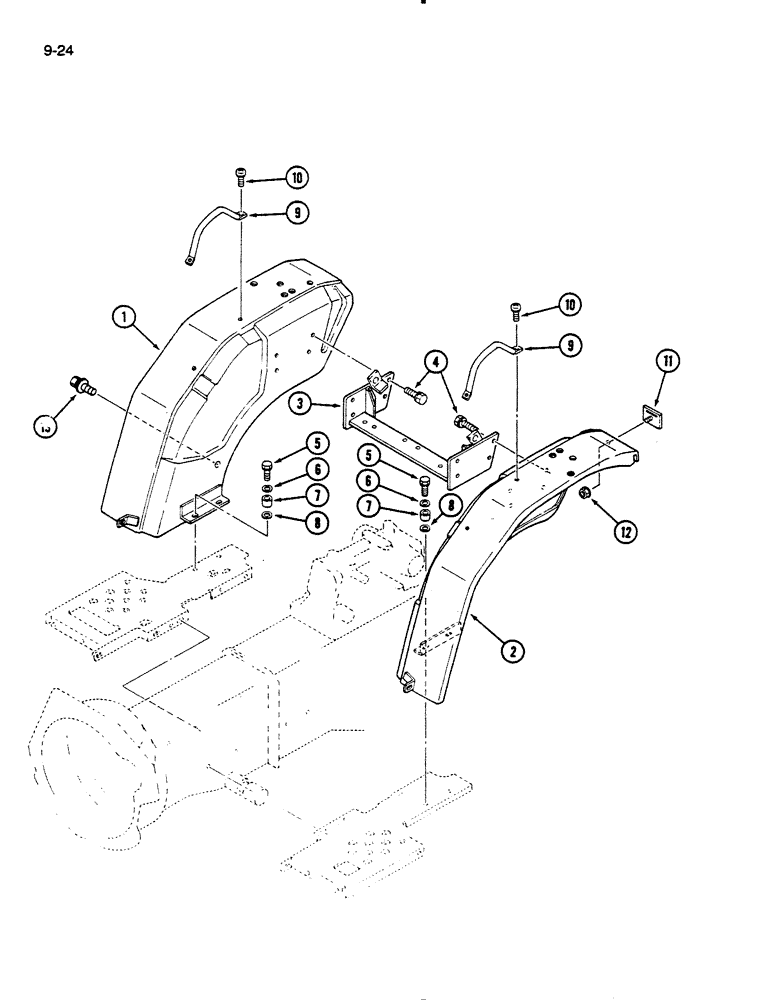

Запчасти Case IH 235 (9-24) - FENDERS (09) - CHASSIS/ATTACHMENTS

1

1269647C1

FENDER

- rear, right (Mechanical transmission)

1шт.

1

99134C2

FENDER ASSY.

FENDER - rear, right (Hydrostatic transmission)

1шт.

2

1269648C1

FENDER

- rear, left

1шт.

3

99135C1

BRACKET

SUPPORT - fender

1шт.

4

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

892-11010

LOCK WASHER,M10

8шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

8шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

6

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- hardened, 9 x 17 x 2 mm

6шт.

7

1269651C1

COLLAR CLAMP

COLLAR - fender mounting

4шт.

8

1269685C1

RING

- rubber

4шт.

9

1269686C1

HANDLE

- fender

1шт.

10

30422R1

SCREW,Cross Pan Hd, M6 x 16

- pan head, cross recess, M6 x 16 mm, Grade 4.8

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

11

1271744C1

REFLECTOR

- red

2шт.

12

825-1106

NUT,Hex, M6, Cl 8

- hex, M6, Grade 10

2шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm (Hydrostatic transmission)

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, (Hydrostatic transmission) M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm (Hydrostatic transmission)

1шт.
