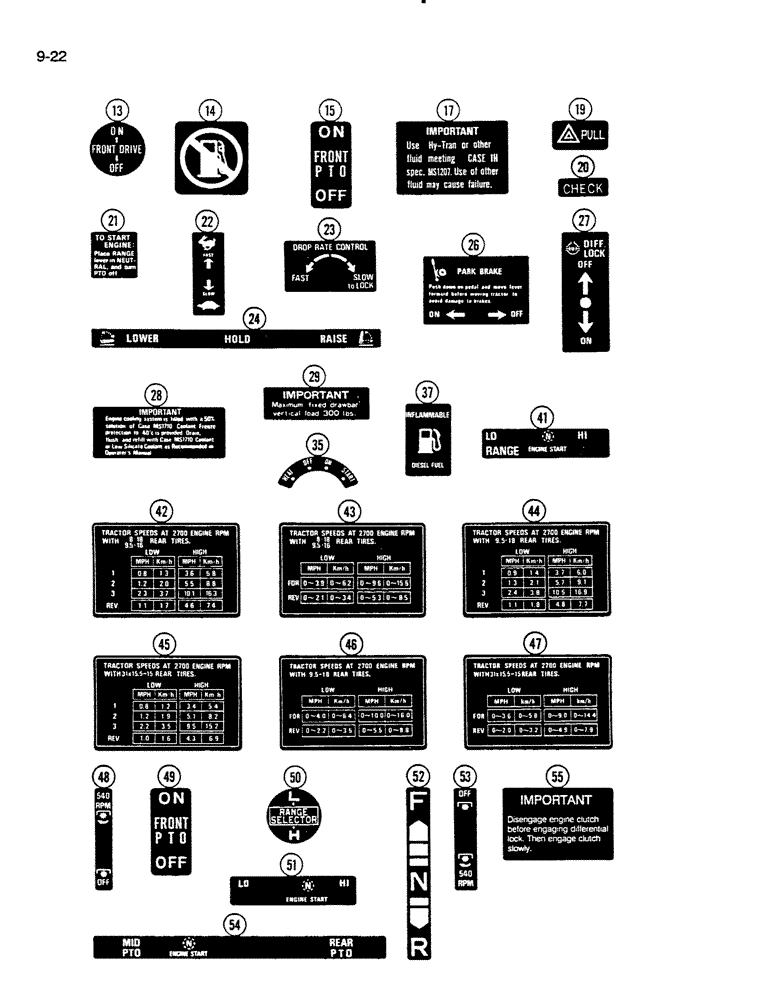

Запчасти Case IH 235 (9-22) - DECALS, INSTRUCTIONS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
13
99289C1
DECAL
- front drive (MFD)
1шт.
14
1962499C1
DECAL
- fuel shutoff
1шт.
15
99208C1
DECAL
- PTO (Hydrostatic Transmission)
1шт.
17
99290C1
DECAL
- fluid type
1шт.
19
99291C1
DECAL
- hazard lamp switch
1шт.
20
99292C1
DECAL
- check
1шт.
21
1961803C1
DECAL
- starting
1шт.
22
99293C1
DECAL
- throttle
1шт.
23
99294C1
DECAL
- drop rate control
1шт.
24
99295C1
DECAL
- draft
1шт.
26
99296C1
DECAL
- park brake
1шт.
27
99297C1
DECAL
- differential lock
1шт.
28
99298C1
DECAL
- engine coolant
1шт.
29
99299C1
DECAL
- important, drawbar
1шт.
35
99300C1
DECAL
- switch, key position
1шт.
37
99302C1
DECAL
- diesel fuel
1шт.
41
99272C1
DECAL
- range shift, engine start (Hydrostatic transmission)
1шт.
42
99204C1
DECAL
- speed (Mechanical transmission) (8-18 or 9.5-16 rear tire)
1шт.
43
99273C1
DECAL
- speed (Hydrostatic transmission) (8-18 or 9.5-16 rear tire)
1шт.
1962502C1
DECAL
KIT - speed (Mechanical transmission), Includes: Ref. 44 - 45
1шт.
44
NSS
NOT SOLD SEPARAT
DECAL - speed (9.5-18 rear tires)
1шт.
45
NSS
NOT SOLD SEPARAT
DECAL - speed (31 x 15.5-15 rear tires)
1шт.
1962503C1
DECAL
KIT - speed (Hydrostatic transmission), Includes: Ref. 46 - 47
1шт.
46
NSS
NOT SOLD SEPARAT
DECAL - speed (9.5-18 rear tires)
1шт.
47
NSS
NOT SOLD SEPARAT
DECAL - speed (31 x 15.5-15 rear tires)
1шт.
48
99207C1
DECAL
- PTO engage (Mechanical transmission)
1шт.
49
99208C1
DECAL
- front PTO engage (Mechanical transmission)
1шт.
50
99209C1
DECAL
- range selector (Mechanical transmission)
1шт.
51
99210C1
DECAL
- range shift, engine start (Mechanical transmission)
1шт.
52
99278C1
DECAL
- shift lever position (Hydrostatic transmission)
1шт.
53
99279C1
DECAL
- PTO engage, 2 wheel drive (Hydrostatic transmission)
1шт.
54
99276C1
DECAL
- PTO engage, MFD, (Hydrostatic transmission)
1шт.
55
1962500C1
DECAL
- differential lock
1шт.
Выбрано товаров: 33
