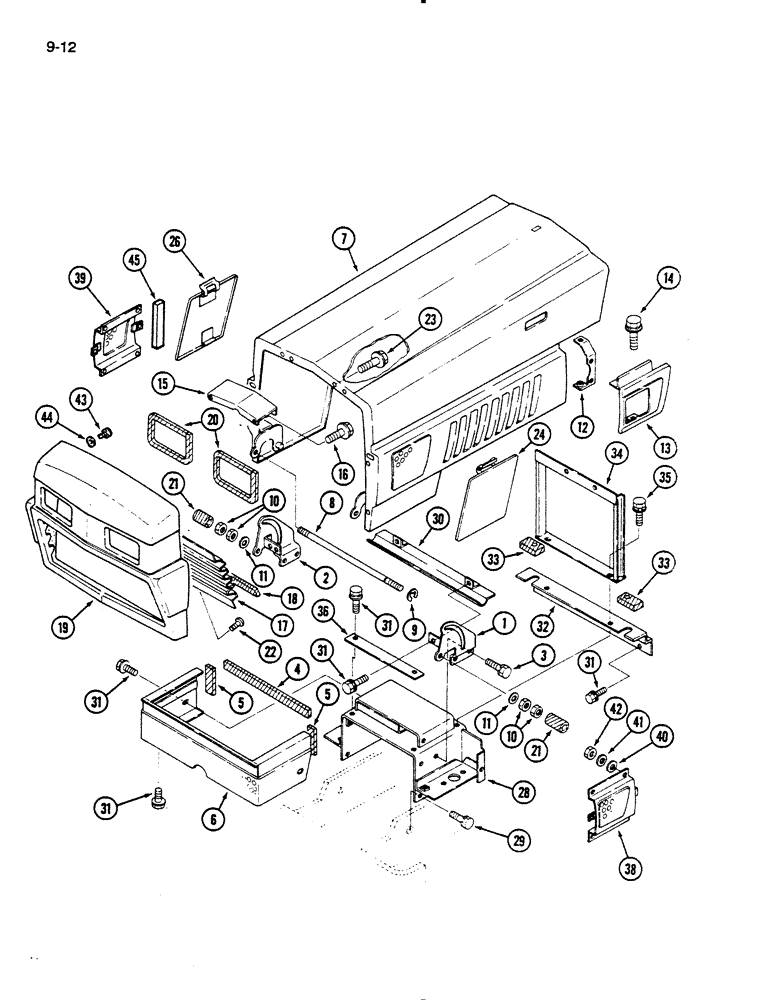

Запчасти Case IH 235 (9-12) - HOOD, PANELS, GRILLE AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

99150C1

BRACKET

- hinge, left

1шт.

2

99151C1

BRACKET

- hinge, right

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

4

NSS

NOT SOLD SEPARAT

CUSHION - front cover, 300 mm (Order 1264567C2, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

CUSHION - side cover, 800 mm long (Order 1264567C2, Serial Range: cut-length)

2шт.

6

99154C1

COVER

- front

1шт.

7

99155C1

HOOD

- tractor

1шт.

8

99161C1

BAR

ROD - hood pivot

1шт.

9

1271817C1

CIRCLIP,M9

RING - retaining

1шт.

10

1269793C1

NUT

- hex, jam, M10

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

12

1269709C1

SUPPORT ASSY.

SUPPORT - rear side cover

1шт.

13

1269710C1

COVER ASSY

COVER - rear side

1шт.

14

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

15

99162C1

BRACKET

- hood

1шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

99163C1

SCREEN

- grille

1шт.

18

99165C1

CUSHION ASSY.

CUSHION - screen

1шт.

19

99166C1

GRILLE

HOUSING - grille

1шт.

20

99164C1

CUSHION ASSY.

CUSHION - head lamp

2шт.

21

99167C1

CUSHION ASSY.

CUSHION - hood pivot

2шт.

22

1273616C1

SELF-TAP SCREW,Phil, M5 x 16mm

SCREW - tapping

5шт.

23

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

24

99168C1

COVER ASSY

COVER - left

1шт.

26

99169C1

COVER

- right

1шт.

28

99170C1

BRACKET

- battery

1шт.

29

514-700

BOLT,Hex, M10 x 1 x 16mm, Cl 8.8, Full Thd

- hex, M10 x 1.25 x 15 mm

4шт.

892-11010

LOCK WASHER,M10

4шт.

30

99171C1

COVER ASSY

COVER - hinge bracket

1шт.

31

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

10шт.

32

99357C1

PANEL ASSY.

COVER - rear (Mechanical transmission)

1шт.

32

99172C1

COVER ASSY

COVER - rear (Hydrostatic transmission)

1шт.

33

99173C1

CUSHION ASSY.

CUSHION - cooler bracket (Hydrostatic transmission)

2шт.

34

99174C1

BRACKET

- cooler (Hydrostatic transmission)

1шт.

35

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

(Hydrostatic transmission) Hex, M8 x 25, 8.8

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

36

99175C2

COVER ASSY

COVER - front

1шт.

38

1962578C1

COVER ASSY

COVER - left

1шт.

39

1962579C1

COVER ASSY

COVER - right

1шт.

40

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

41

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

12шт.

42

30208R1

NUT,M6, Cl 10

- hex, M6, Grade 10

12шт.

43

1962722C1

SELF-TAP SCREW

BOLT - grill housing retaining

2шт.

44

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

45

1962720C1

CUSHION ASSY.

CUSHION - cover

2шт.
