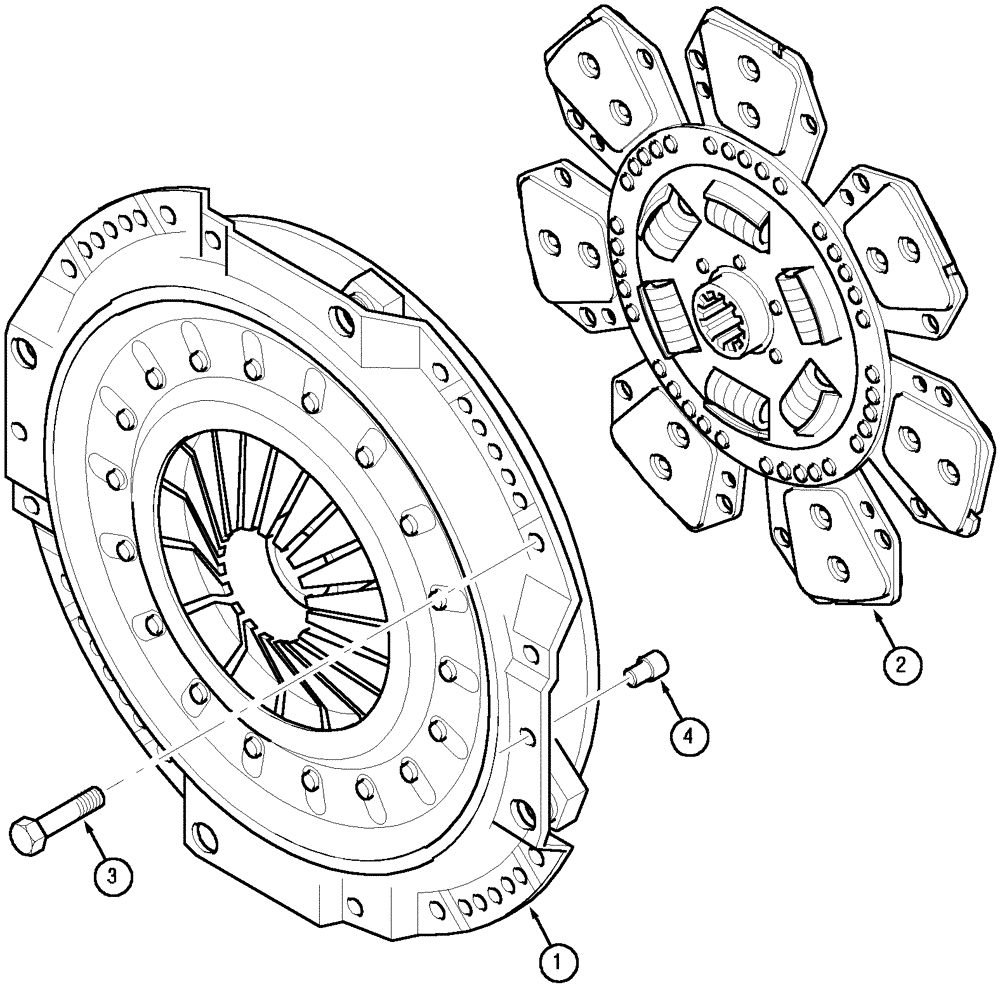

Запчасти Case IH C90 (06-01) - CLUTCH (06) - POWER TRAIN

1

223807A1

CLUTCH PLATE

Cover

1шт.

1

223807A1R

REMAN-CLUTCH PLATE

C70, C80, C90, C100

1шт.

1

223807A1C

CORE-CLUTCH PLATE

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Driven, Order Kit 341719A1, C70, Not Illustrated

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Driven, Order Kit 341723A1, C80, C90, C100

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

4

230869A1

PIN,7.92mm OD x 23mm L

2шт.
