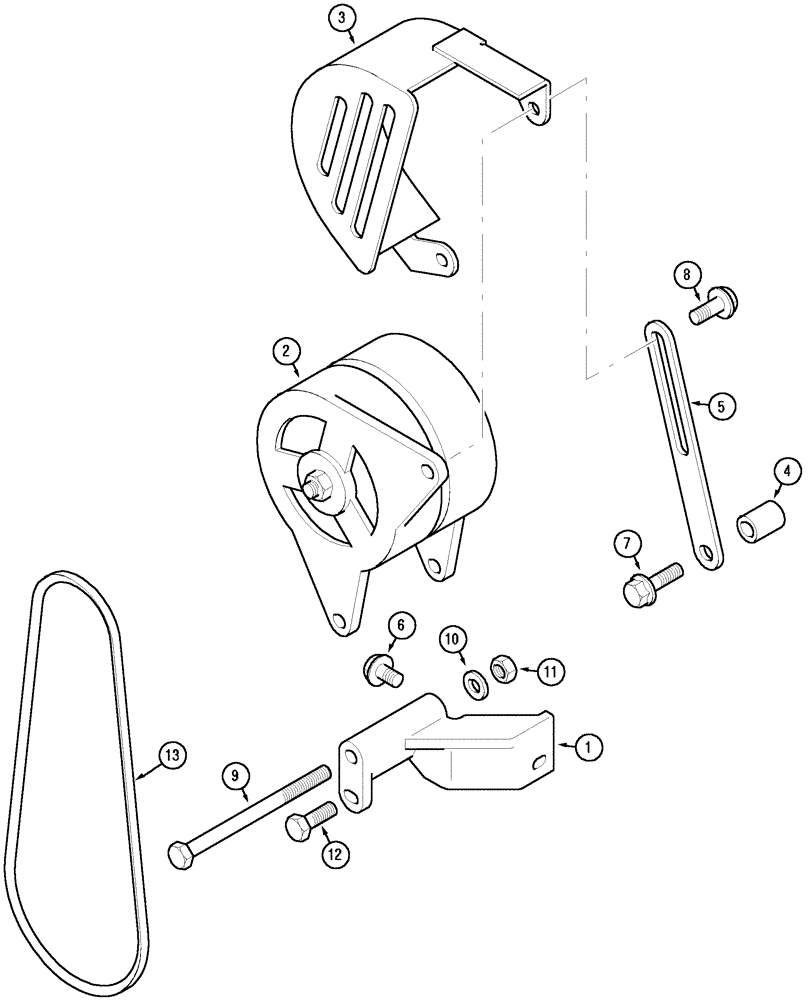

Запчасти Case IH C90 (04-16) - ALTERNATOR AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

248041A1

SUPPORT

1шт.

2

REF

INSTRUCTION

65 amp, Alternator, See Page(s) 4-41

1шт.

3

248036A2

GUARD

1шт.

4

250841A1

SPACER

1шт.

5

250840A1

TENSIONER

1шт.

6

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

7

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

M8 x 60; 8,8

1шт.

8

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

9

814-8130

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

M8 x 130; 8,8

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

11

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

12

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

1шт.

13

238990A1

BELT,13.00 mm W x 1450.00 mm L

1шт.
