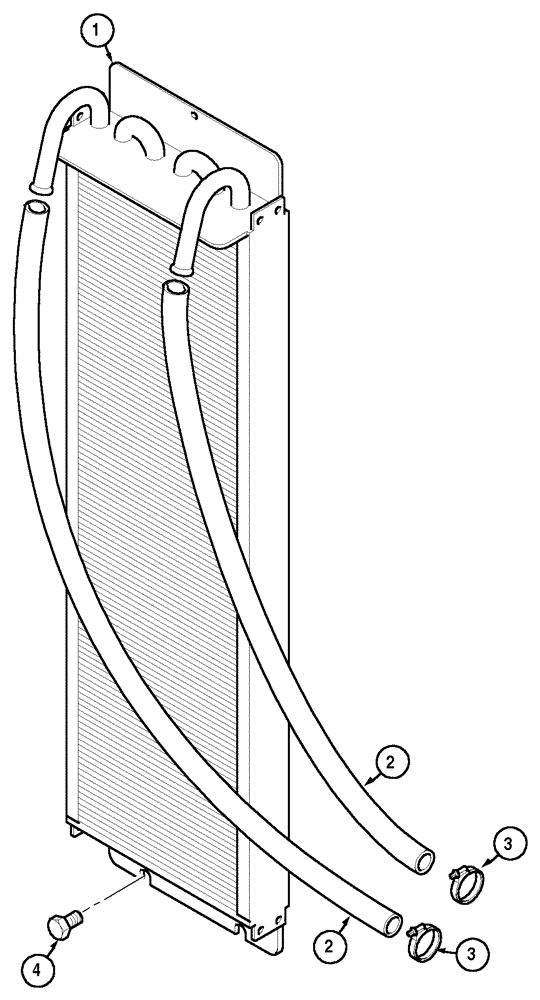

Запчасти Case IH C90 (03-04) - FUEL COOLER (03) - FUEL SYSTEM

C80, C90, C100

1шт.

1

275375A2

COOLER

1шт.

2

294290A1

FUEL HOSE

1150 mm

2шт.

3

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

4

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

3шт.

304905A1

PLUG

Not Illustrated, Used On Models Without Fuel cooler

1шт.
