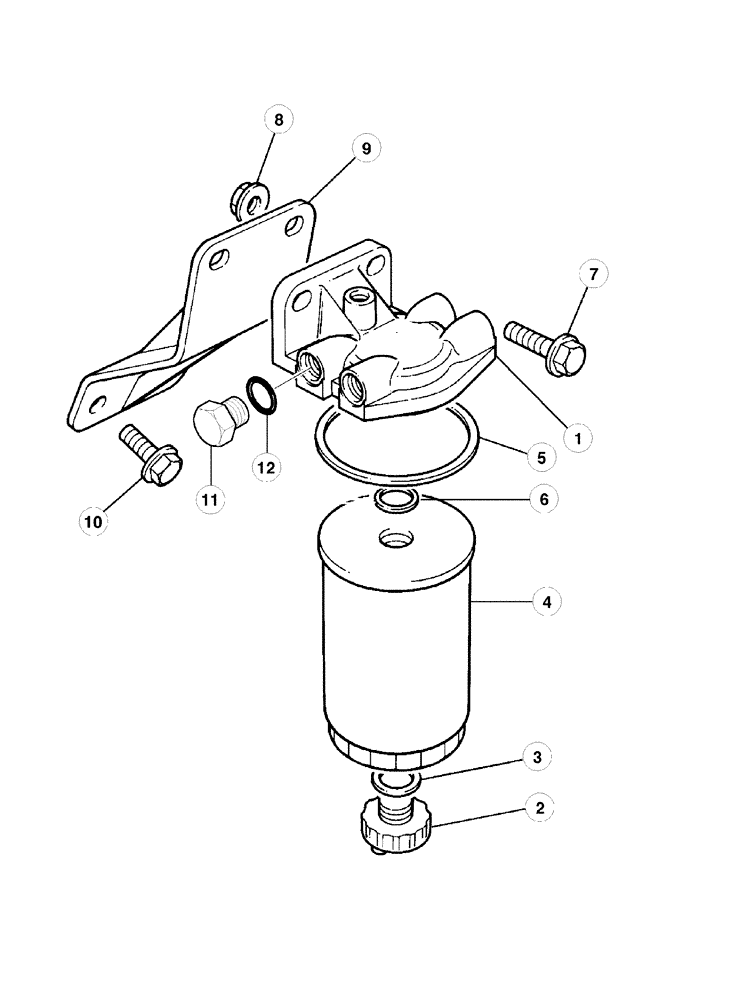

Запчасти Case IH C90 (03-01) - FUEL FILTER (03) - FUEL SYSTEM

293671A1

FILTER, FUEL

Consists Of 1 - 6

1шт.

1

314001A1

HEAD

1шт.

218100A1

FUEL FILTER

Consists Of 2 - 6

1шт.

2

293673A1

PLUG

1шт.

3

293674A1

WASHER

1шт.

4

NSS

NOT SOLD SEPARAT

Element

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

1шт.

7

218053A1

SCREW

2шт.

8

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

9

282126A1

SUPPORT

1шт.

10

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

11

3118391R1

PLUG

If So Equipped

1шт.

12

796109R1

SEALING WASHER

If So Equipped

1шт.
