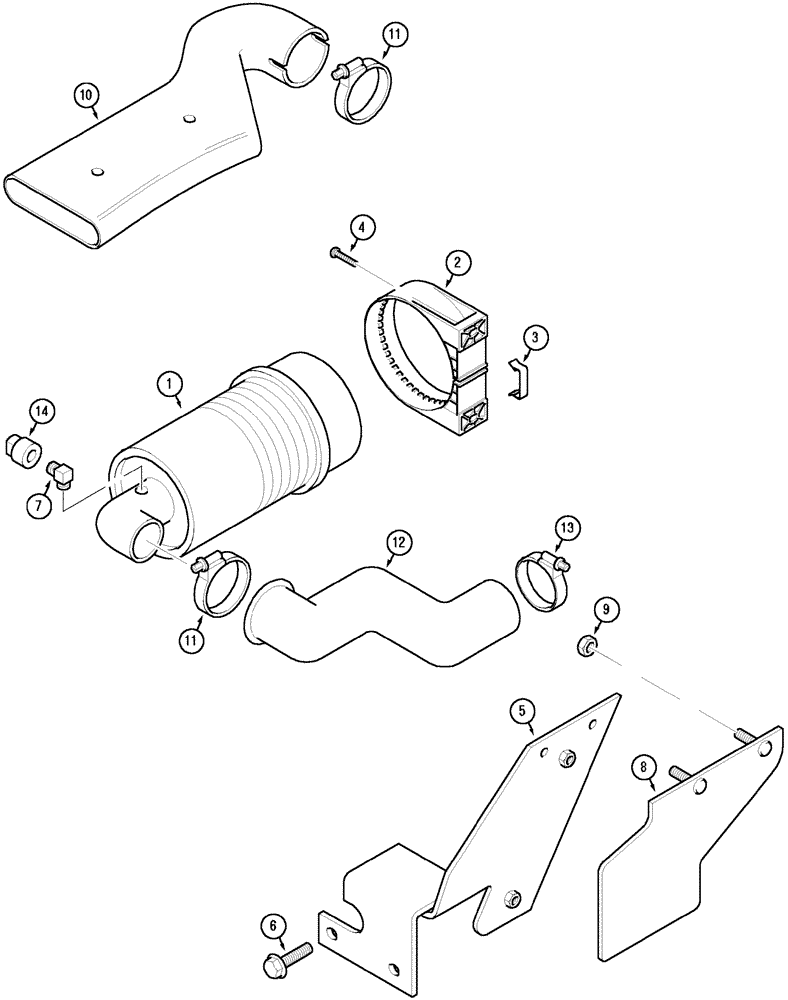

Запчасти Case IH C90 (02-14) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

Fixed Hood

1шт.

1

138940A4

AIR CLEANER

See Page(s) 2-33

1шт.

2

226500A1

SUPPORT

1шт.

3

281083A1

CLIP,ELECTRICAL

2шт.

4

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

5

228358A3

SUPPORT

1шт.

6

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

7

217-1227

ELBOW,90 Degree, 1/8"-27 Male

1шт.

8

256308A3

GUARD

Turbocharger, C80, C90, C100

1шт.

9

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

10

244347A2

DUCT

1шт.

11

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

2шт.

12

227266A3

INTAKE AIR HOSE,77.00 mm ID, 89.00 mm ID

Outlet, C70

1шт.

12

227268A4

INTAKE AIR HOSE,54.00 mm ID, 89.00 mm ID x 241.00 mm

Outlet, C80, C90, C100

1шт.

13

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

14

292740A1

RESTRICTION SWITCH

Restrictor, Serial No. - JJE1015145

1шт.

14

279492A1

RESTRICTION SWITCH

Restrictor, Serial No. JJE1015146 -

1шт.
