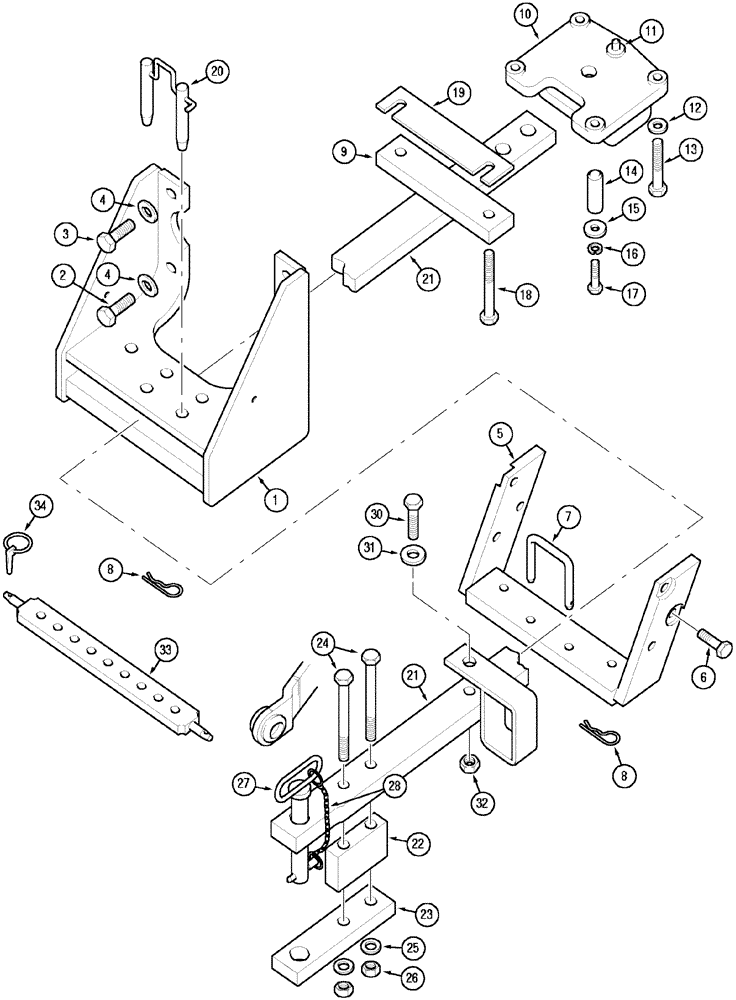

Запчасти Case IH C90 (09-24) - DRAWBARS (09) - CHASSIS/ATTACHMENTS

1

243292A4

SUPPORT

Standard

1шт.

2

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

2шт.

3

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

5

3129483R2

SUPPORT

Heavy Duty

1шт.

6

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

7

1502071C1

COTTER PIN,14.28mm OD

Standard

1шт.

8

198121A1

SPRING CLIP

2шт.

9

3121227R1

BAR

1шт.

10

406468R41

SUPPORT

Includes 11

1шт.

11

37-1820

DOWEL,1/2" x 1 1/4"

1/2 x 1-1/4

1шт.

12

3061325R1

WASHER

4шт.

13

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1/2 x 1-3/4; 8

1шт.

14

1502366C2

PIVOT PIN

1шт.

15

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

1шт.

16

92-11038

LOCK WASHER,3/8"

1шт.

17

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

18

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

19

242918A1

SHIM

1шт.

20

1534642C1

HITCH PIN,16mm OD x 94.8mm L

Heavy Duty

1шт.

21

277753A1

DRAWBAR

916 mm, Shiftable P.T.O.

1шт.

21

314736A1

DRAWBAR

878 mm, Straight, N.A. Only

1шт.

21

316657A1

DRAWBAR

916 mm, Heavy Duty, Offset, Europe Only

1шт.

22

123086A1

SUPPORT

1шт.

23

123085A1

CROSSMEMBER

1шт.

24

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

2шт.

25

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

26

829-1416

NUT,M16, Cl 10

2шт.

27

1974215C3

HITCH PIN,40mm OD x 185mm L

Includes 28

1шт.

28

1974219C1

CHAIN (AG)

1шт.

29

1973937C2

SUPPORT

N.A. Only

1шт.

30

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

1шт.

31

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

32

829-1416

NUT,M16, Cl 10

1шт.

33

3140007R2

DRAWBAR,952mm L x 80mm W x 30mm Thk

Short

1шт.

34

1328218C1

LINCH PIN,11mm OD

1шт.
