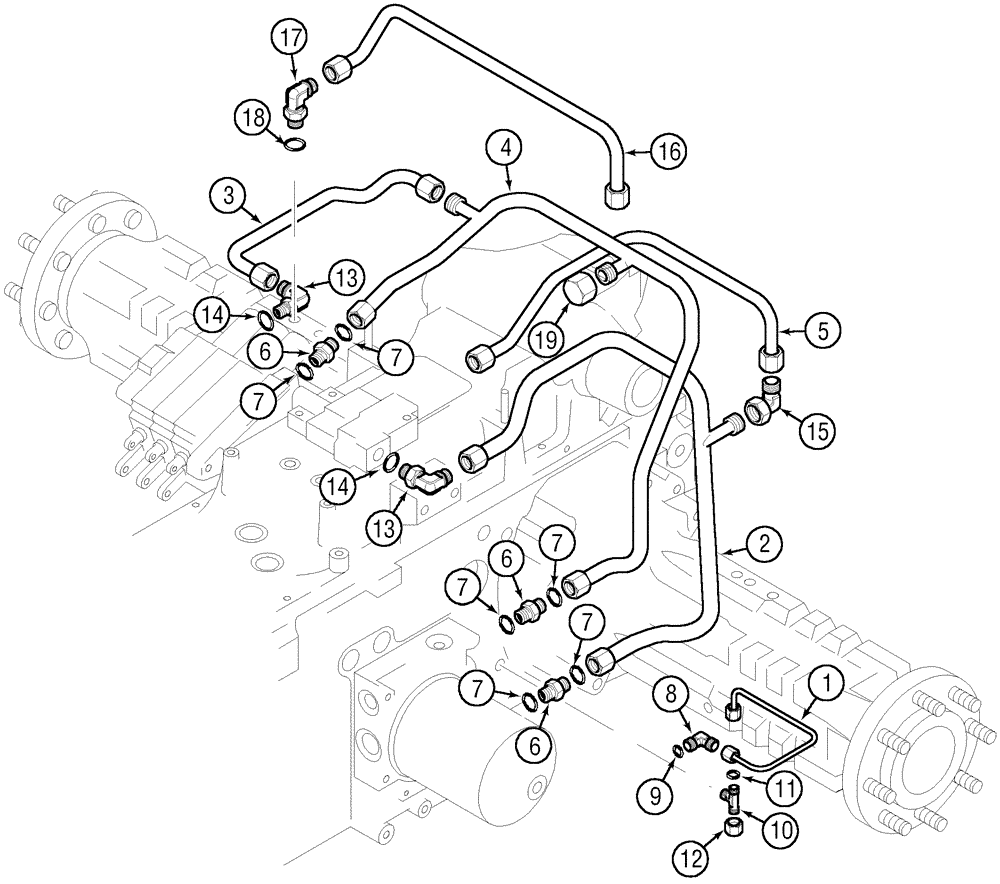

Запчасти Case IH C90 (08-18) - DRAFT CONTROL PIPING (08) - HYDRAULICS

1

258506A1

HYD TUBE,0.25" OD, 79.3, 69.1 mm Length

Pressure

1шт.

2

297612A2

HYD TUBE,0.625" OD, 475, 202 mm Length

Pressure

1шт.

3

1956743C1

HYD TUBE,0.625" OD

Return

1шт.

4

297079A2

PIPE

Return

1шт.

5

304477A1

HYD TUBE

Position Control

1шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 7

3шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj Or, Includes 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

218-5180

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

1/4 in, Includes 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

218-752

CAP,37 Degree, 7/16"-20

1шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj Or, Incl. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

16

297588A2

HYD TUBE

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

218-756

CAP,37 Degree, 7/8"-14

1шт.
