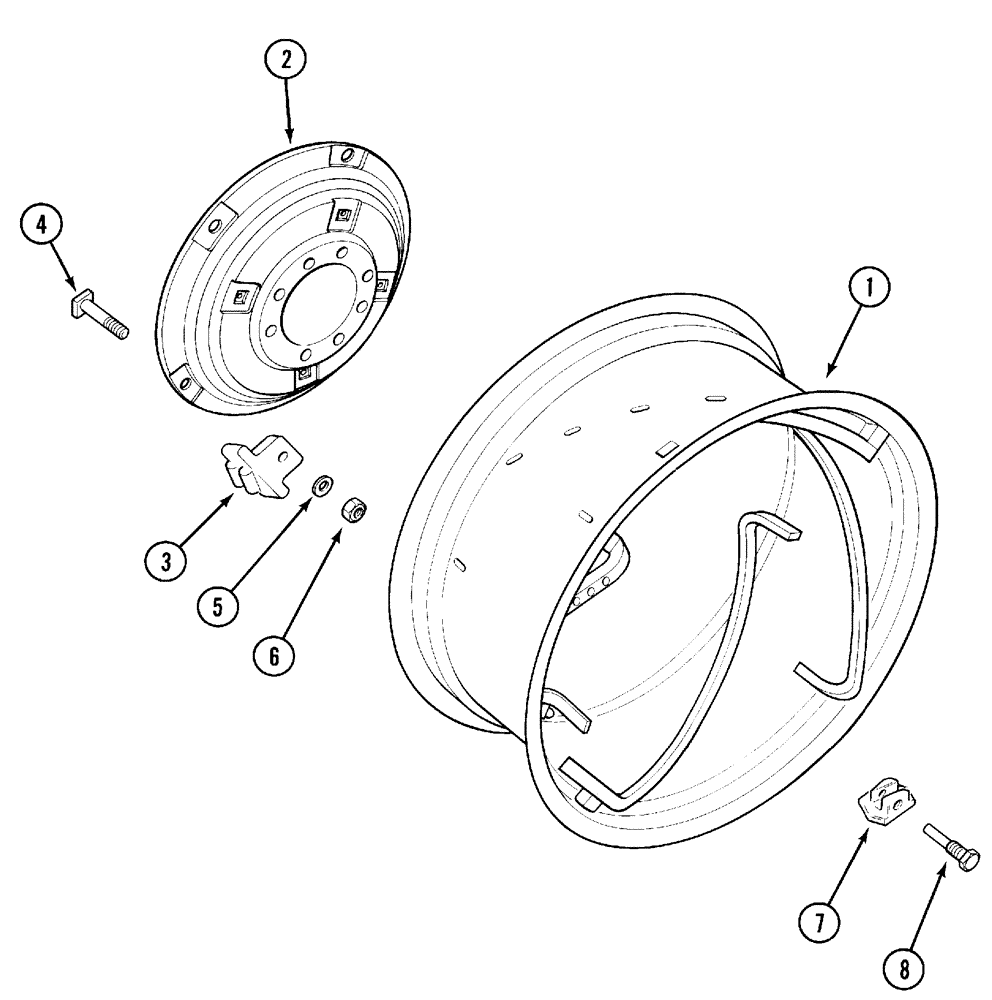

Запчасти Case IH C90 (06-47) - REAR WHEELS - POWER ADJUSTABLE (06) - POWER TRAIN

N.A. Only

1шт.

Wheels 28 inch

1шт.

1

A167901

RIM

WHEEL , For Tires 13.6,14.9 x 28

2шт.

2

1282567C1

DISC, WHEEL

2шт.

3

399004R1

SHIN

10шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

10шт.

5

399007R1

WASHER

10шт.

6

399006R1

WHEEL NUT

10шт.

7

A9406

STOP

4шт.

8

K200142

SCREW,Hex, 9/16" x 2 1/8"

Wheels 30 inch

4шт.

1

1282566C1

RIM

WHEEL , For Tires 16.9 x 30

2шт.

2

399002R1

DISC, WHEEL

2шт.

3

399004R1

SHIN

10шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

10шт.

5

399007R1

WASHER

10шт.

6

399006R1

WHEEL NUT

10шт.

7

A9406

STOP

4шт.

8

K200142

SCREW,Hex, 9/16" x 2 1/8"

4шт.

1

1343078C1

RIM

WHEEL , For Tires 18.4 x 30

2шт.

2

399002R1

DISC, WHEEL

2шт.

3

399004R1

SHIN

10шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

10шт.

5

399007R1

WASHER

10шт.

6

399006R1

WHEEL NUT

10шт.

7

A9406

STOP

4шт.

8

K200142

SCREW,Hex, 9/16" x 2 1/8"

4шт.
