Запчасти Case IH C90 (06-18) - TRANSMISSION RANGE (06) - POWER TRAIN

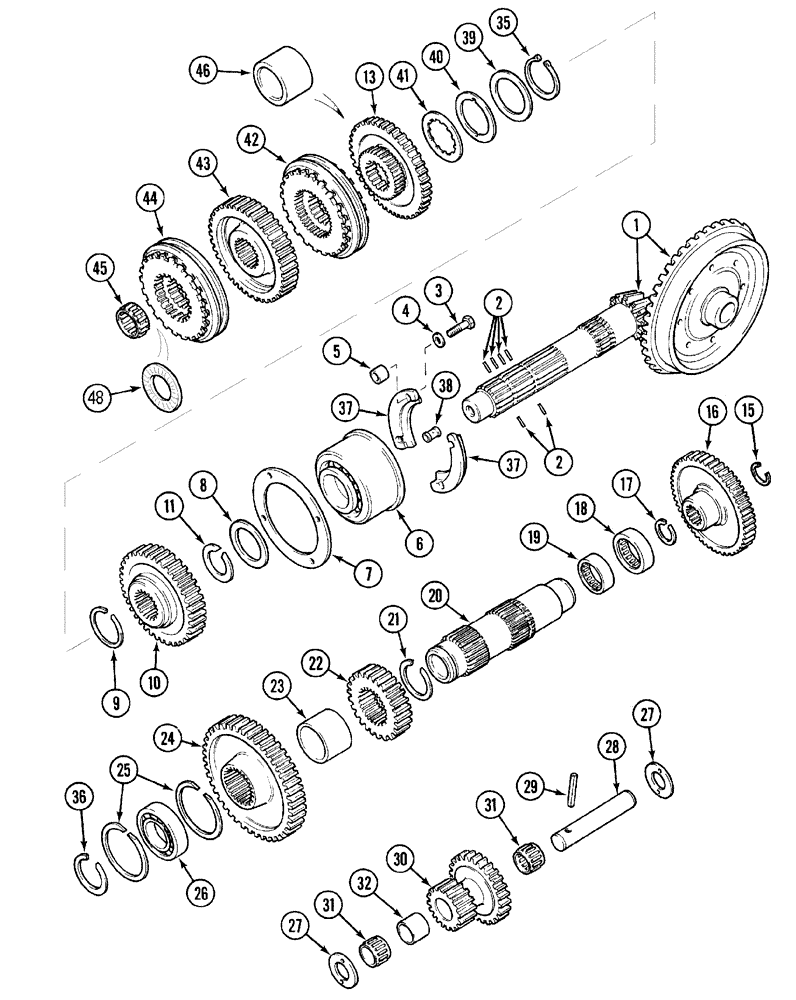

Схема запчастей Case IH C90 - (06-18) - TRANSMISSION RANGE (06) - POWER TRAIN
9
48
29
22
13
15
43
40
8
17
24
41
30
11
5
10
37
35
32
46
19
31
2
23
36
45
44
25
38
6
39
27
16
37
27
21
20
3
31
2
26
28
7
42
1
4
18

Артикул

Название

Примечание

Количество

1

116638A3

GEAR, BEVEL

BEVEL GEAR , 11/52T, Includes 2

1шт.

2

438-1611

LOCK PIN,3/32" x 11/16", Slotted

3/32" x 11/16", Slotted

6шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

5

94323C1

BUSHING

1шт.

6

1289706C91

BEARING,52.4mm ID x 116.84mm OD x 66.67mm W

4WD

1шт.

6

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

1шт.

65423C1

SHIM KIT

Consists Of 7

1шт.

7

399826R1

SHIM

.004 mm

2шт.

7

399827R1

SHIM

.007 mm

5шт.

8

65788C1

WASHER

1шт.

9

67573C1

SNAP RING,2.13mm Thk, Ext

2.1336 mm

1шт.

10

82354C1

GEAR

38T, 4WD

1шт.

11

67568C1

CIRCLIP

1.6764 mm

1шт.

11

67569C1

CIRCLIP

1.7526 mm

1шт.

11

67570C1

CIRCLIP

1.8288 mm

1шт.

11

67571C1

CIRCLIP

1.9050 mm

1шт.

11

66077C1

CIRCLIP

1.9812 mm

1шт.

11

67572C1

CIRCLIP

2.0574 mm

1шт.

11

67573C1

SNAP RING,2.13mm Thk, Ext

2.1336 mm

1шт.

11

67574C1

CIRCLIP

2.2098 mm

1шт.

11

67575C1

CIRCLIP

2.2860 mm

1шт.

11

67628C1

CIRCLIP

2.3622 mm

1шт.

13

116585A1

PINION

42T, Reverse, Driven

1шт.

15

533266R1

RING, SNAP

RING SNAP , 0.98 in

1шт.

16

94404C1

PINION

55T, Version Without Shiftable P.T.O., Trans No. - JKA0411115

1шт.

16

307831A1

PINION

55T, Version Without Shiftable P.T.O., Trans No. JKA0411116 -

1шт.

16

114581A1

PINION

61T, Version With Shiftable PTO, Trans No. - JKA0411115

1шт.

16

307832A1

PINION

61T, Version With Shiftable PTO, Trans No. JKA0411116 -

1шт.

17

101-11118

SNAP RING,#118, 1.121", Ext

1шт.

18

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

1шт.

19

158187C91

NEEDLE BEARING,47.62mm ID x 57.15mm OD x 25.27mm W

1шт.

20

116583A1

SHAFT

1шт.

21

101-11215

SNAP RING,#215, 2.026", Ext

1шт.

22

116581A1

PINION

24T

1шт.

23

116593A1

SPACER

39.35 mm

1шт.

23

116592A1

SPACER

48.61 mm, Forward-Reverse

1шт.

24

242204A1

PINION

45T, Driven

1шт.

25

399832R1

RING, SNAP

RING SNAP

2шт.

26

1201744C91

ROLLER BEARING

1шт.

27

3112846R1

THRUST WASHER

2шт.

28

116577A1

IDLE SHAFT

1шт.

29

38-22432

PIN,3/8" x 2", Coiled

3/8" x 2", Coiled

1шт.

30

116584A1

PINION

20/24T, Reverse, Idler

1шт.

31

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

1.313 in

2шт.

32

116591A1

SPACER

1шт.

35

101-11187

SNAP RING,#187, 1.759", Ext

1шт.

36

A27089

SNAP RING,2.36mm Thk, Ext

1шт.

37

83299C1

RETAINER

With 15 mm Hole, 4WD

1шт.

37

65784C2

RETAINER

4WD

1шт.

37

65784C2

RETAINER

2WD

2шт.

38

116598A1

TUBE

1шт.

39

116603A1

THRUST WASHER,47.6mm ID x 70mm OD x 2.25mm Thk

Trans No. - JKA0410361, Use With 40

1шт.

182970A1

SHIM KIT

Trans No. - JKA0410361, Consists Of 40

1шт.

40

116606A1

SHIM

0.813 mm

3шт.

40

116631A1

SHIM

0.1015 mm

3шт.

40

116627A1

SHIM

0.178 mm

4шт.

319798A1

PACKAGE

Trans No. JKA0410362 -, Consists Of 40A

1шт.

40b

303589A2

CIRCLIP

1.76 mm

1шт.

40b

303590A2

CIRCLIP

1.95 mm

1шт.

40b

303591A2

CIRCLIP

2.15 mm

1шт.

40b

303592A2

CIRCLIP

2.35 mm

1шт.

40b

303593A2

CIRCLIP

2.55 mm

1шт.

40b

303594A1

CIRCLIP

2.74 mm

1шт.

41

116604A1

WASHER

1шт.

42

116600A2

SYNCHRONIZER

Lo/rev

1шт.

43

116582A1

PINION

42T

1шт.

44

254538A1

SYNCHRONIZER

Hi, See Page(s) 6-53

1шт.

44

254540A1

SYNCHRONIZER

Hi/Lo, Forward-Reverse

1шт.

45

116589A1

BEARING, NEEDLE,37.3mm ID x 50.01mm OD x 28.5mm W

1шт.

46

116673A2

SPACER

Forward-Reverse

1шт.

48

1286466C1

BEARING, THRUST

1шт.

Выбрано товаров: 72
