Запчасти Case IH C90 (06-06) - SPEED TRANSMISSION - 2 SPEED POWER SHIFT (06) - POWER TRAIN

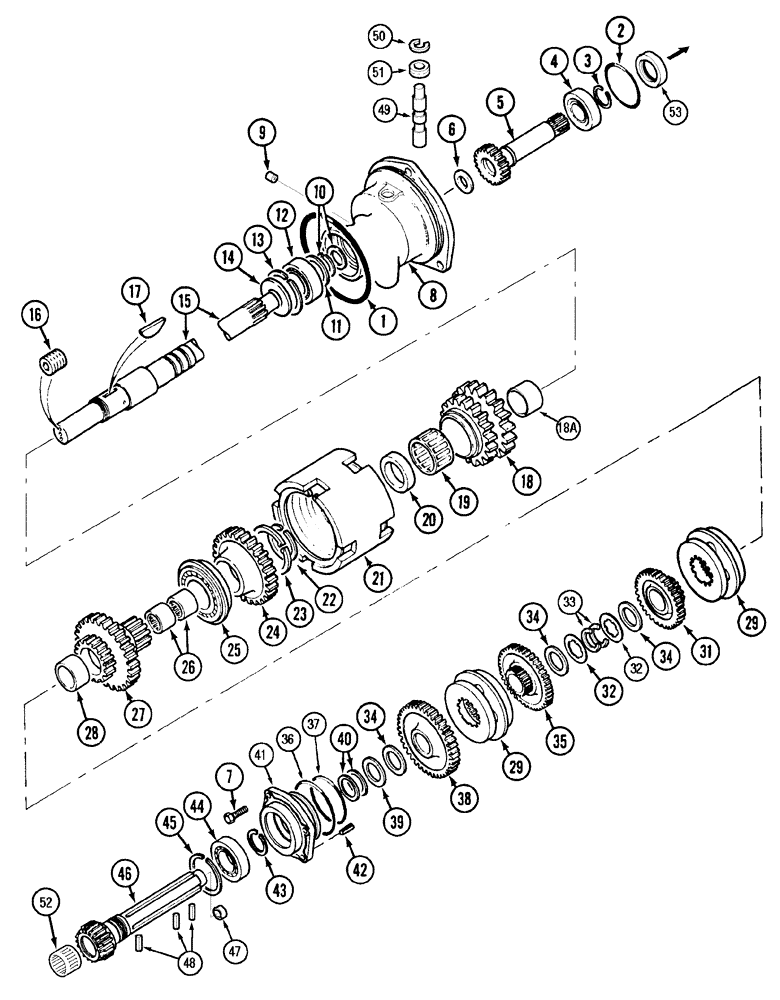

Схема запчастей Case IH C90 - (06-06) - SPEED TRANSMISSION - 2 SPEED POWER SHIFT (06) - POWER TRAIN
37
29
12
38
51
35
2
18a
44
34
36
21
10
40
25
28
39
13
43
8
50
22
9
33
6
18
42
5
1
24
32
3
31
11
20
41
34
45
48
17
23
53
26
32
16
14
34
19
15
27
47
46
4
52
7
49
29

Артикул

Название

Примечание

Количество

1

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

2

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

3

101-11196

SNAP RING,#196, 1.849", Ext

1шт.

4

237417A1

BEARING, BALL,49.99mm ID x 89.99mm OD x 19.94mm W

1шт.

5

242103A1

SHAFT

750rpm/22T

1шт.

5

242102A1

SHAFT

1000rpm/25T

1шт.

6

114321A1

OIL SEAL

1шт.

7

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

8

234507A1

BALL RACE

Includes 9

1шт.

9

1345889C1

PLUG

6,5 mm OD

1шт.

10

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING

2шт.

11

A21619

CIRCLIP

1шт.

12

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

13

377911R1

RING, SNAP

RING SNAP

1шт.

14

402562R1

THRUST WASHER

1шт.

15

225128A1

SHAFT

Includes 16

1шт.

16

1345890C1

PLUG

5 mm OD

1шт.

17

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

18

241700A1

SPROCKET ASSY.

25T, Includes 18A

1шт.

18a

402565R1

BUSHING,37.81mm ID x 41.41mm OD x 25.4mm L

1шт.

19

402566R1

BEARING ASSY

1шт.

20

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

1шт.

21

REF

INSTRUCTION

HOUSING ASSEMBLY, See Figure 06-08 for Components

1шт.

22

101-11125

SNAP RING,#125, 1.179", Ext

1шт.

23

101-11175

SNAP RING,#175, 1.640", Ext

No. 175

1шт.

24

404199R3

SPROCKET ASSY.

1шт.

25

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

26

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

2шт.

27

242185A2

PINION

28T

1шт.

28

A76557

BEARING,31.75mm ID x 41.3mm OD x 18.86mm W

1шт.

29

304844A1

SYNCHRONIZER

See Page(s) 6-53

1шт.

31

242188A2

PINION

24T, Driven

2шт.

32

245832A1

WASHER

3.2 mm

1шт.

33

398329R1

CIRCLIP

2.36 mm

1шт.

33

254509A1

CIRCLIP

1.85 mm

2шт.

33

254510A1

CIRCLIP

2.1 mm

2шт.

33

256519A1

CIRCLIP

2.62 mm

1шт.

34

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

3шт.

35

245208A1

PINION

33T, Driven

1шт.

36

638-54125

O-RING,3.55mm Thk x 125mm ID, Cl 5, 75 Duro

125 ID x 3,55

1шт.

37

638-54115

O-RING,3.55mm Thk x 115mm ID, Cl 5, 75 Duro

115 ID x 3,55

1шт.

38

245207A1

PINION

41T, Driven

1шт.

39

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

1шт.

40

116597A1

SEAL

2шт.

41

253944A2

BALL RACE

Includes 42

1шт.

42

38-1605

LOCK PIN,2.36mm OD x 7.92mm L, Slotted

3/32" x 5/16", Slotted

1шт.

43

A27089

SNAP RING,2.36mm Thk, Ext

1шт.

44

222113A1

BEARING, ROLLER,49.99mm ID x 89.99mm OD x 19.94mm W

1шт.

45

A32422

SNAP RING,2.36mm Thk, Int

1шт.

46

254508A2

SHAFT ASSY.

Main, Includes 47,48

1шт.

47

115583A1

PLUG

5/8 in dia

1шт.

48

38-1805

LOCK PIN,1/8" x 5/16", Slotted

1/8" x 5/16", Slotted

3шт.

49

536974R1

STEM

1шт.

50

100-3437

SNAP RING,#37, Ext

1шт.

51

531539R1

COLLAR

1шт.

52

116589A1

BEARING, NEEDLE,37.3mm ID x 50.01mm OD x 28.5mm W

1шт.

53

188931C1

OIL SEAL,47.63mm ID x 63.7mm OD x 8.41mm Thk

1шт.

Выбрано товаров: 57
