Запчасти Case IH C80 (05-07) - ADJUSTABLE FRONT AXLE - STRAIGHT (05) - STEERING

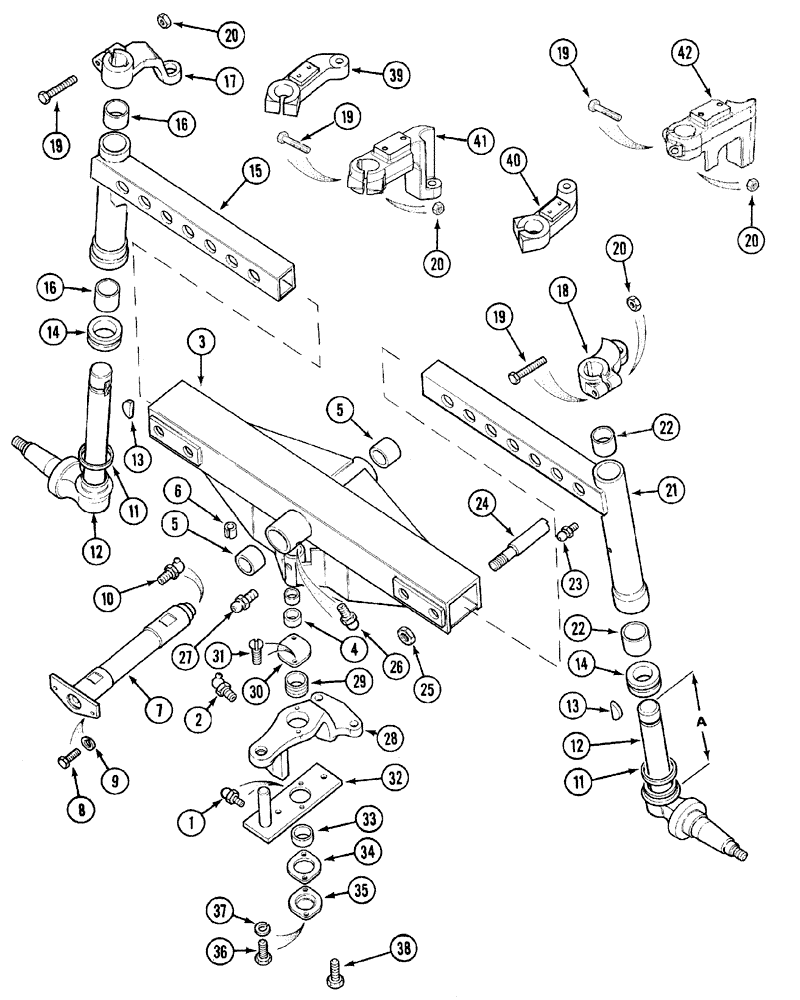

Схема запчастей Case IH C80 - (05-07) - ADJUSTABLE FRONT AXLE - STRAIGHT (05) - STEERING
22
41
28
37
21
34
15
9
7
19
31
36
17
1
19
23
14
14
19
13
5
20
11
26
27
10
25
40
16
13
29
12
12
8
3
30
19
35
18
20
6
20
33
32
2
11
5
22
16
24
38
39
42
20
4

Артикул

Название

Примечание

Количество

52 to 77 Inch Tread Widths

1шт.

1

219-13

LUBE NIPPLE,3/16" NPTF

19/32 in

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

3121242R93

CENTER AXLE

Width 56 - 76in, Includes 4 - 6

1шт.

3

377684A2

AXLE, FRONT

Width 60 - 80 in, Includes 4 - 6

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

2шт.

6

103925A1

BUSHING,20mm ID x 26.06mm OD x 25mm L

1шт.

7

99897C1

SHAFT

With Front Hydraulic Pump

1шт.

7

3121254R1

SHAFT ASSY.

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

9

892-11012

LOCK WASHER,M12

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1/8 in

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

2шт.

12

3121261R91

KNUCKLE,RH

ASSY. , A : 285 mm, Includes 13

2шт.

12

3121270R91

KNUCKLE

ASSY. , A : 212 mm, Includes 13

2шт.

13

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

1шт.

14

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

2шт.

15

3121257R91

EXTENSION ASSY.

Front, Right, Used With 3121261R91, Includes 16

1шт.

15

3121268R91

EXTENSION ASSY.

Front, Right, Used With 3121270R91, Includes 16

1шт.

16

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

2шт.

17

3121264R1

ARM

Right

1шт.

18

3121263R1

ARM

Left

1шт.

19

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

20

329-108

NUT,1/2"-13, G8

2шт.

21

3121256R91

EXTENSION ASSY.

Front, Left, Used With 3121261R91, Includes 22

1шт.

21

3121267R91

EXTENSION ASSY.

Front, Left, Used With 3121270R91, Includes 22

1шт.

22

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

2шт.

23

219-14

LUBE NIPPLE,1/4" NPTF

High Spindle

2шт.

23

219-405

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

1/4 in, Low Spindle

2шт.

24

379445A1

PIN

131.6 mm

4шт.

24

3121252R1

BOLT,3/4" - 16 x 1 27/32"

4шт.

25

3121253R1

SPECIAL NUT

4шт.

26

219-98

LUBE NIPPLE,1/4" NPTF

1/4 in

1шт.

27

219-405

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

1/4 in

1шт.

28

67499C94

STEERING ARM

Used With 3121243R93, Includes 29,30,31

1шт.

28

379323A1

STEERING ARM

Used With 377684A1, Includes 29,30,31

1шт.

29

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

1шт.

30

1536890C1

LARGE PLATE

PLATE, LARGE

1шт.

31

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

2шт.

32

405580R21

BAR ASSY.

Includes 33 - 37

1шт.

33

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

1шт.

34

1536919C1

GASKET

1шт.

35

1536892C1

LARGE PLATE

PLATE, LARGE

1шт.

36

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

1/4 x 5/8

2шт.

37

492-11025

LOCK WASHER,1/4"

2шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

39

175289A1

ARM

Right, With Front Splash Shields

1шт.

40

175288A1

ARM

Left, With Front Splash Shields

1шт.

41

330132A3

STEERING ARM

Utility, Right

1шт.

42

330131A3

STEERING ARM

Utility, Left

1шт.

Выбрано товаров: 51
