Запчасти Case IH C80 (05-05) - STEERING PIPES REAR (05) - STEERING

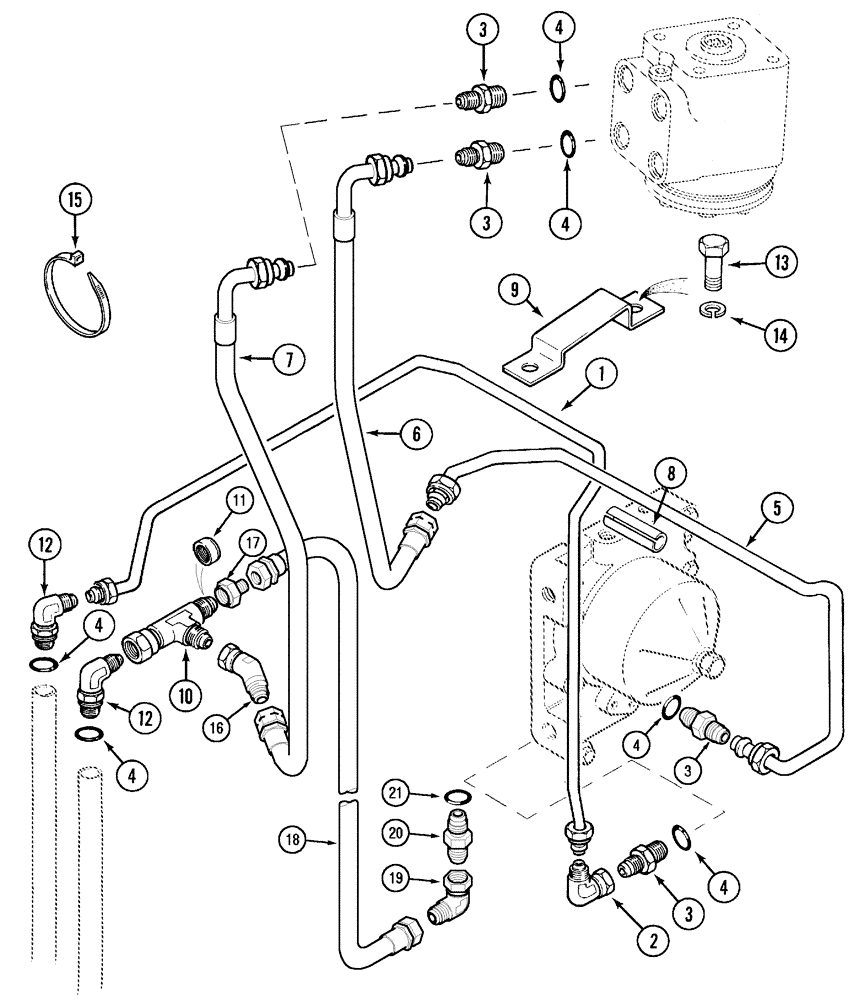

Схема запчастей Case IH C80 - (05-05) - STEERING PIPES REAR (05) - STEERING
4
12
21
5
20
4
8
7
10
3
4
14
6
3
4
1
12
3
17
4
3
13
4
15
9
16
2
18
11
19

Артикул

Название

Примечание

Количество

1

275296A2

HYD TUBE,0.5" OD, 471, 390 mm Length

With Powershift

1шт.

1

275297A4

HYD TUBE,1" OD, 380, 270 mm Length

2WD, Without Powershift

1шт.

1

280972A1

HYD TUBE

4WD, Without Powershift

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 4

3шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

275298A2

HYD TUBE,0.5" OD, 420, 358 mm Length

1шт.

6

275299A2

HOSE ASSY.

1шт.

7

291371A1

LARGE HOSE

HOSE,LARGE , 520 mm (20-1/2 in)

1шт.

8

536009R1

FUEL HOSE,0.31" ID x 2.50"

2шт.

9

275725A1

FIXING BRACKET

1шт.

10

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

With Powershift

1шт.

11

218-755

CAP,37 Degree, 3/4"-16

2WD, with Powershift

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

306132C1

CABLE TIE,14.5" L

CABLE STRAP , 14 in

2шт.

16

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

With Powershift

1шт.

4WD

1шт.

17

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

3/4 fl x fl

1шт.

18

302329A1

HOSE

1250 mm

1шт.

19

218-5229

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1/2 fl x sw

1шт.

20

123627A1

FITTING

1шт.

21

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 24
