Запчасти Case IH C80 (04-01) - HARNESS - FRONT (04) - ELECTRICAL SYSTEMS

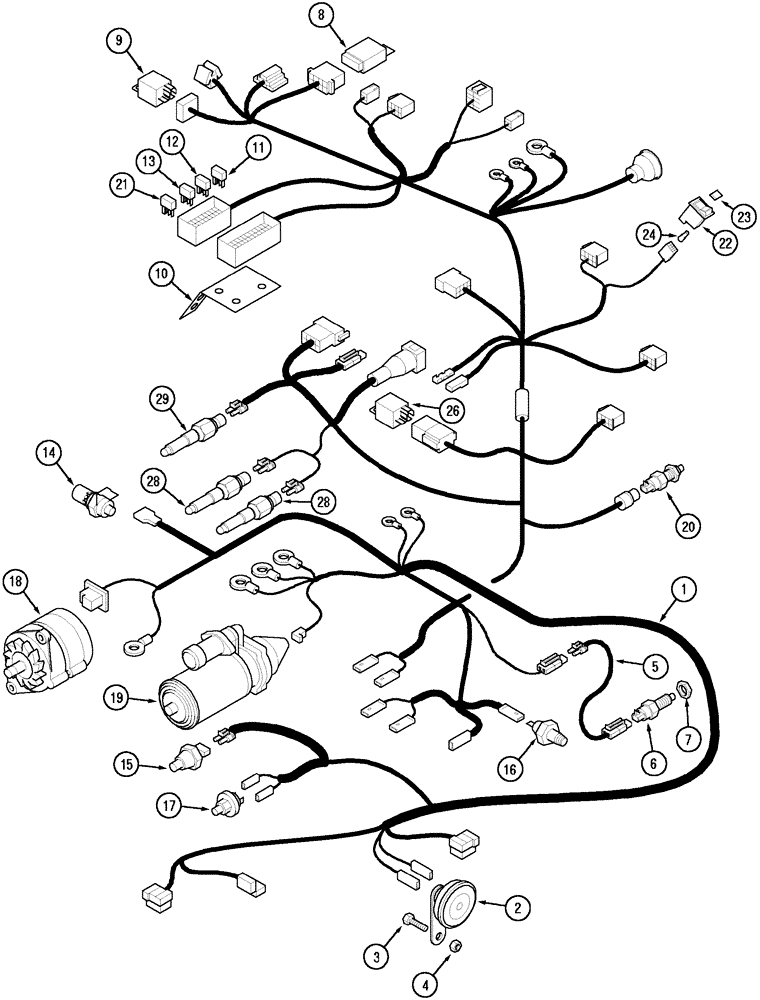

Схема запчастей Case IH C80 - (04-01) - HARNESS - FRONT (04) - ELECTRICAL SYSTEMS
26
13
17
19
5
24
12
8
14
15
18
3
28
2
23
1
21
7
20
6
29
28
11
9
16
22
10
4

Артикул

Название

Примечание

Количество

1

279122A2

HARNESS

Europe Only, Serial No. - JJE1014564

1шт.

1

381765A1

HARNESS

Europe Only, Serial No. JJE1014565 - JJE1015145

1шт.

1

392595A1

HARNESS

Europe Only, Serial No. JJE1015146 -

1шт.

1

279123A2

HARNESS

N.A. Only, Serial No. - JJE1015145

1шт.

1

392592A1

HARNESS

N.A. Only, Serial No. JJE1015146 -

1шт.

2

237582A1

HORN

12V

1шт.

3

615-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

5

279117A1

CABLE

1шт.

6

177499A2

LIMIT SWITCH

Brake Light, Europe Only, Includes 7

1шт.

7

188603A1

JAM NUT

M16

1шт.

8

1964535C2

FLASHER UNIT,12V

Europe Only, Serial No. - JJE1014564

1шт.

8

1987397C2

FLASHER UNIT,12V

Europe Only, Serial No. JJE1014565 -

1шт.

8

92389C2

FLASHER UNIT

N.A. Only

1шт.

9

1502351C1

RELAY

12V, Headlight

1шт.

10

233437A3

SUPPORT

1шт.

11

384114A1

RELAY

20 amp, Worklight

1шт.

12

384114A1

RELAY

20 amp, Powershift

1шт.

13

384114A1

RELAY

20 amp, Brake Light, Europe Only

2шт.

14

A77616

GLOW PLUG

Thermostart

1шт.

15

243803A1

TEMPERATURE SENDER

Coolant

1шт.

16

1534526C2

SWITCH, PRESSURE

PRESSURE SWITCH , Engine Oil Pressure

1шт.

17

292740A1

RESTRICTION SWITCH

Air Filter, Serial No. - JJE1015145

1шт.

17

279492A1

RESTRICTION SWITCH

Air Filter, Serial No. JJE1015146 -

1шт.

18

REF

INSTRUCTION

65 amp, Alternator, See Page(s) 4-41

1шт.

19

REF

INSTRUCTION

Starter Assy, See Page(s) 4-35,37

1шт.

20

177499A2

LIMIT SWITCH

Powershift

1шт.

21

384114A1

RELAY

20 amp, 4WD

1шт.

22

1964835C1

SWITCH ASSY

4WD

1шт.

23

1964651C1

SYMBOLS

SYMBOL

1шт.

24

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

279102A1

COVER

Fuse Box

1шт.

26

296541A1

RELAY

80 amp, Starter

1шт.

27

121410A1

FUSE,5A, Mini, Tan

Instrument Cluster

1шт.

27

121410A1

FUSE,5A, Mini, Tan

Tail-Light, N.A. Only

1шт.

27

121411A1

FUSE,7.5A, Mini, Brown

Instrument Cluster

1шт.

27

121411A1

FUSE,7.5A, Mini, Brown

Powershift

1шт.

27

121412A1

FUSE,10A, Mini, Red

Position Light, Europe Only

2шт.

27

121412A1

FUSE,10A, Mini, Red

Headlight, Low Beam, High Beam

4шт.

27

121412A1

FUSE,10A, Mini, Red

4WD

1шт.

27

121413A1

FUSE,15A, Mini, Blue

Horn

1шт.

27

121413A1

FUSE,15A, Mini, Blue

Rear Work Light

1шт.

27

121413A1

FUSE,15A, Mini, Blue

Fuel Shut Off

1шт.

27

121413A1

FUSE,15A, Mini, Blue

Turn Signal

1шт.

27

121413A1

FUSE,15A, Mini, Blue

Hazard Warning, Europe Only

1шт.

27

121414A1

FUSE,20A, Mini, Yellow

Ether Start, N.A. Only

1шт.

27

121414A1

FUSE,20A, Mini, Yellow

Thermostart, Europe Only

1шт.

27

121414A1

FUSE,20A, Mini, Yellow

Brake Light, Europe Only

1шт.

27

121415A1

FUSE,25A, Mini, Clear

Cigar Lighter

1шт.

27

121416A1

FUSE,30A, Mini, Green

Headlight, Switch

1шт.

28

244024A1

NEUTRAL START SWITCH

Neutral Start

1шт.

29

177500A2

NEUTRAL START SWITCH

Safety Start

1шт.

Выбрано товаров: 52
