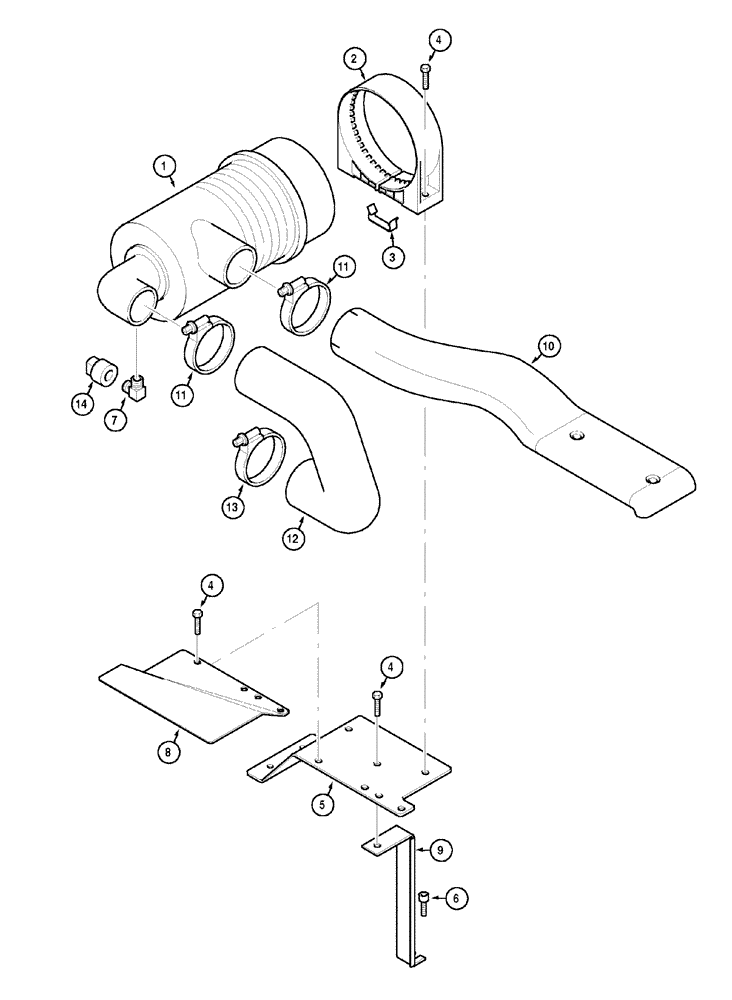

Запчасти Case IH C80 (02-13) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

C80, C90, C100

1шт.

Tilting Hood

1шт.

1

138940A4

AIR CLEANER

See Page(s) 2-33

1шт.

2

226500A1

SUPPORT

1шт.

3

281083A1

CLIP,ELECTRICAL

2шт.

4

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

9шт.

5

243433A2

SUPPORT

1шт.

6

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

1шт.

7

217-1227

ELBOW,90 Degree, 1/8"-27 Male

1шт.

8

294853A2

PROTECTION PLATE

Turbocharger

1шт.

9

245180A1

SUPPORT

1шт.

10

243182A2

DUCT

1шт.

11

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

2шт.

12

243435A2

INTAKE AIR HOSE,54.00 mm ID, 89.00 mm ID x 166.00 mm

1шт.

13

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3

1шт.

14

292740A1

RESTRICTION SWITCH

Restrictor, Serial No. - JJE1015145

1шт.

14

279492A1

RESTRICTION SWITCH

Restrictor, Serial No. JJE1015146 -

1шт.
