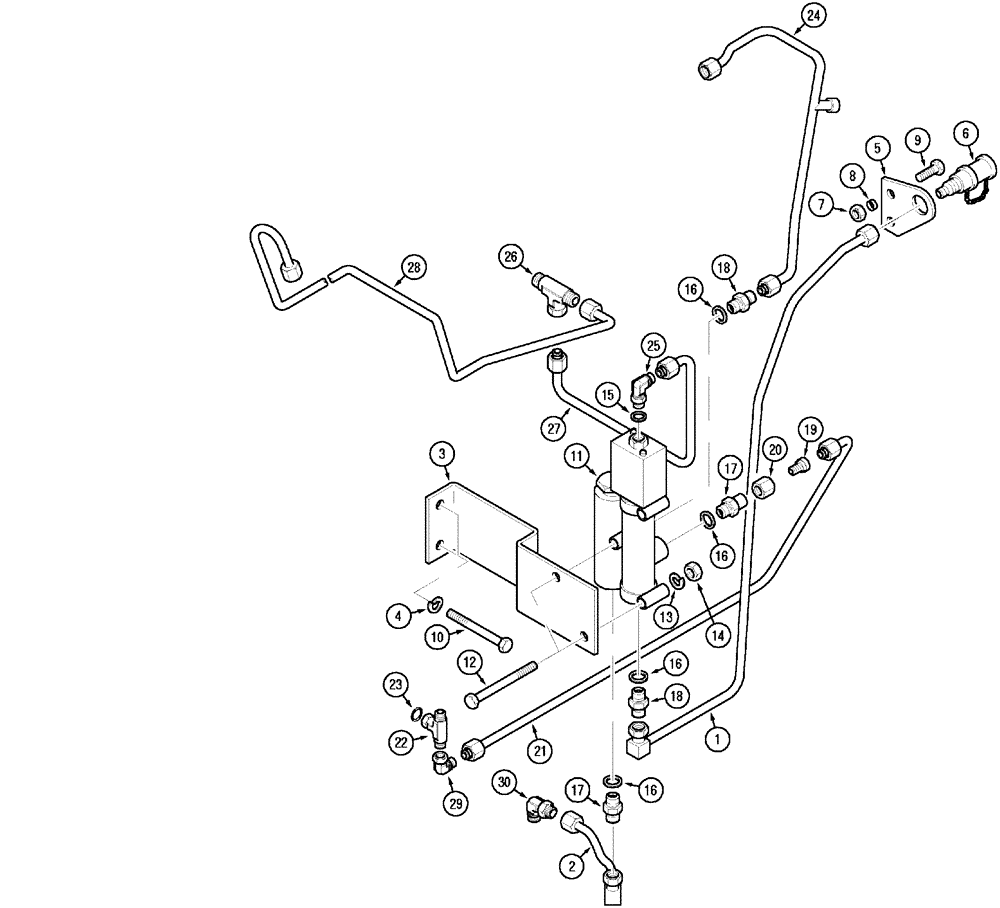

Запчасти Case IH C80 (08-26) - HYDRAULIC TRAILER BRAKE CIRCUIT (08) - HYDRAULICS

( - JJE1009644)

1шт.

1

292700A2

HYD TUBE

Coupling

1шт.

2

294183A1

HYD TUBE,0.625" OD, 133.8, 37.9 mm Length

Valve

1шт.

3

248273A1

SUPPORT ASSY.

1шт.

4

92-11038

LOCK WASHER,3/8"

2шт.

5

292745A1

LARGE PLATE

PLATE, LARGE

1шт.

6

3131463R91

QUICK MALE COUPLING

1шт.

7

1500671C1

NUT

M18

1шт.

8

1500670C1

SLEEVE

1шт.

9

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

10

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

11

258992A1

VALVE

1шт.

12

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

13

492-11031

LOCK WASHER,5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

2шт.

15

709803R1

SEALING WASHER

1шт.

16

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

4шт.

17

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

18x16 mm

2шт.

18

1500662C2

ADAPTER,M18 x 1.5 x 3/4"-16, 37º Fl

18x12 mm

2шт.

19

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

9/16 fl

1шт.

20

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

1/2

1шт.

21

258561A2

HYD TUBE

Dump

1шт.

22

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl, Includes 23

1шт.

24

299246A1

HYD TUBE

Draft Control

1шт.

25

1536544C1

ELBOW

1шт.

26

1500687C2

TEE

1шт.

27

291856A2

HYD TUBE

Pilot

1шт.

28

291373A1

BRAKE LINE,8 mm OD, 900, 289 mm Length

1шт.

29

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

30

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
