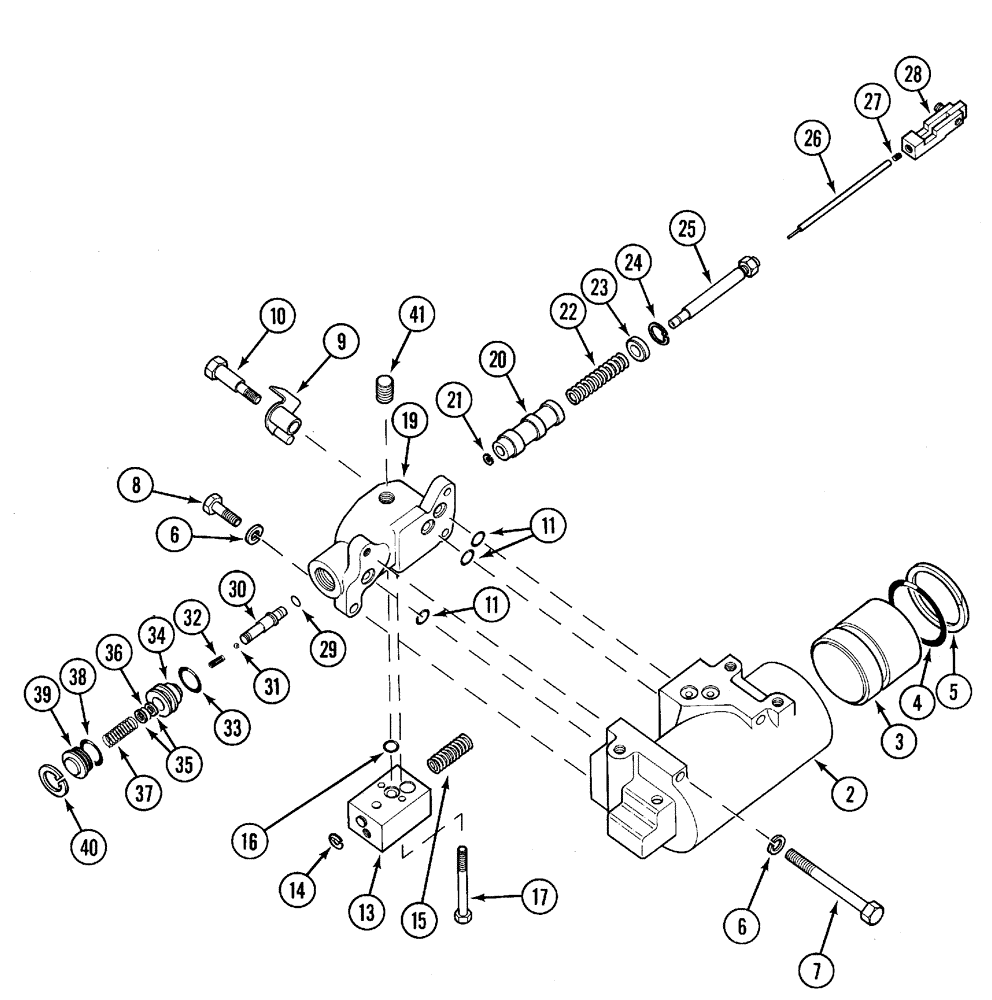

Запчасти Case IH C80 (08-20) - DRAFT CONTROL CYLINDER AND VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
303616A1
CYLINDER ASSY.
Includes 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
Cylinder
1шт.
3
399886R1
PISTON ASSY.,88.87mm Bore, 43.78mm Rod, 71.12mm W
1шт.
4
238-6338
O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro
Trans No. - JKA403126
1шт.
5
375936R1
BACK-UP RING
Trans No. - JKA403126
1шт.
5
295075A1
SEAL
Trans No. JKA403127 -
1шт.
6
92-11038
LOCK WASHER,3/8"
2шт.
7
413-672
BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5
3/8 x 4-1/2
2шт.
8
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
1шт.
9
399889R1
ARM ASSY.
1шт.
10
399892R1
BOLT,Shldr, Hex, 3/8" - 16 x 2.25"
1шт.
11
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
3шт.
60651C91
VALVE
Consists Of 13,14,15
1шт.
13
NSS
NOT SOLD SEPARAT
Body
1шт.
14
100-3431
SNAP RING,#31, Ext, E-Type
1шт.
15
547499R1
SPRING
1шт.
17
413-432
BOLT,Hex, 1/4" - 20 x 2", Gr 5
2шт.
399893R92
VALVE
Draft Control, Consists Of 19 - 40
1шт.
19
399894R1
BODY
Includes 20
1шт.
20
NSS
NOT SOLD SEPARAT
Spool
1шт.
21
376771R1
RING, SNAP
RING SNAP
1шт.
22
395005R2
SPRING
1шт.
23
376759R1
RETAINER
1шт.
24
100-21100
SNAP RING,1.00", Int, #100
1шт.
25
376756R12
HYD CYL SLEEVE
1шт.
26
376763R1
ROD
1шт.
27
178-897
SET SCREW,Hex Soc, #8-36 x 1/4"
1шт.
28
527617R1
ARM ASSY.
1шт.
29
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
30
392041R2
VALVE
1шт.
31
211-1006
BALL,3/16" Dia
1шт.
32
376765R1
SPRING
1шт.
34
376766R1
VALVE POPPET
1шт.
35
376767R1
BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk
1шт.
36
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
37
376768R1
SPRING
1шт.
38
238-6024
O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro
1шт.
39
376770R1
PLUG
1шт.
40
100-21131
SNAP RING,1.312", Int, #131
1шт.
41
217-436
PLUG,Hex Soc, 3/8" - 18 NPTF
1шт.
404810R91
GASKET KIT
Consists Of 4,5,11,16,29,33,35,36,38
1шт.
Выбрано товаров: 43
