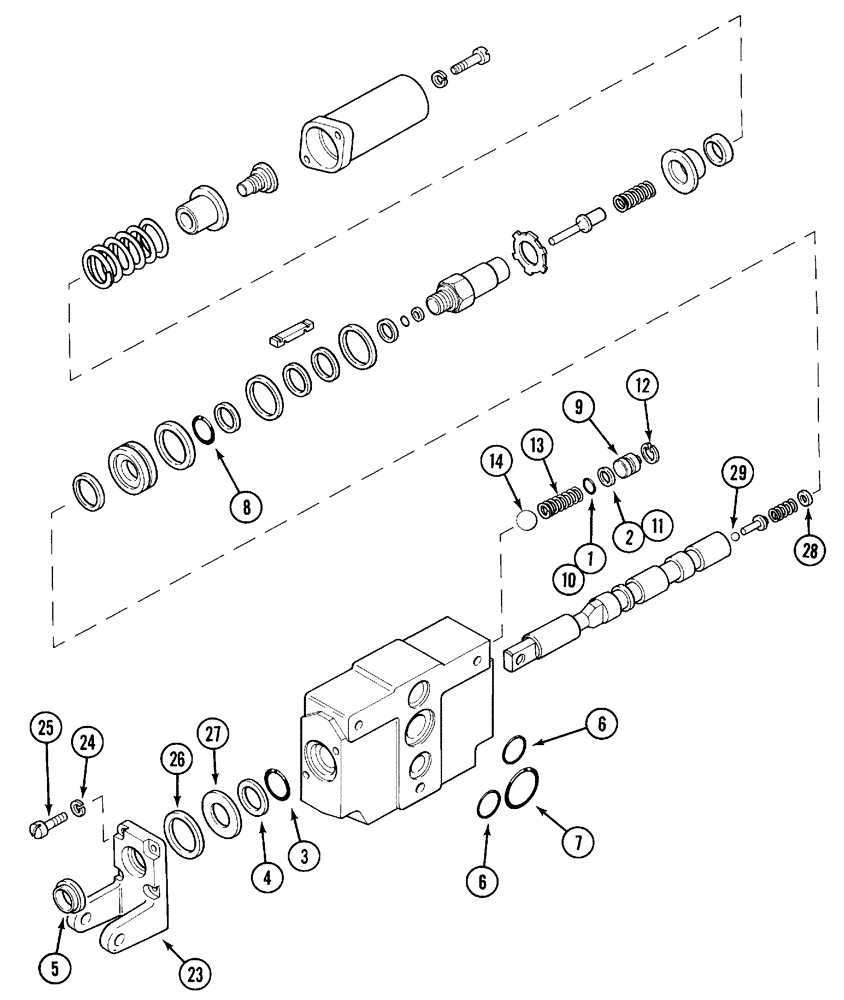

Запчасти Case IH C80 (08-15) - HYDRAULIC REMOTE VALVE ASSEMBLY (08) - HYDRAULICS

1287379C91

VALVE

Double Acting W/O Check Valve

1шт.

1328394C1

SEAL KIT

Consists Of 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

2

NSS

NOT SOLD SEPARAT

Ring

2шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Wiper

1шт.

6

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 ID x 2.5

2шт.

7

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 ID x 2.5

1шт.

8

NSS

NOT SOLD SEPARAT

Seal

1шт.

1958016C1

REPAIR KIT

Check Valve, Consists Of 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

Plug

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

11

NSS

NOT SOLD SEPARAT

Ring

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

2шт.

13

NSS

NOT SOLD SEPARAT

Spring

1шт.

14

NSS

NOT SOLD SEPARAT

Ball

1шт.

23

1958026C2

SUPPORT

1шт.

24

892-11006

LOCK WASHER,M6

2шт.

25

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

For Support Holes With Recess

1шт.

25

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

For Support Holes without Recess

1шт.

26

122964A1

WASHER

1шт.

27

122963A1

BACK-UP RING

1шт.

28

1328389C1

SHIM

0.3 mm

1шт.

28

1328390C1

SHIM

0.4 mm

1шт.

28

1328388C1

SHIM

0.5 mm

1шт.

28

1328391C1

SHIM KIT

0.8 mm

1шт.

29

511-1040

BALL,4mm Dia

1шт.
