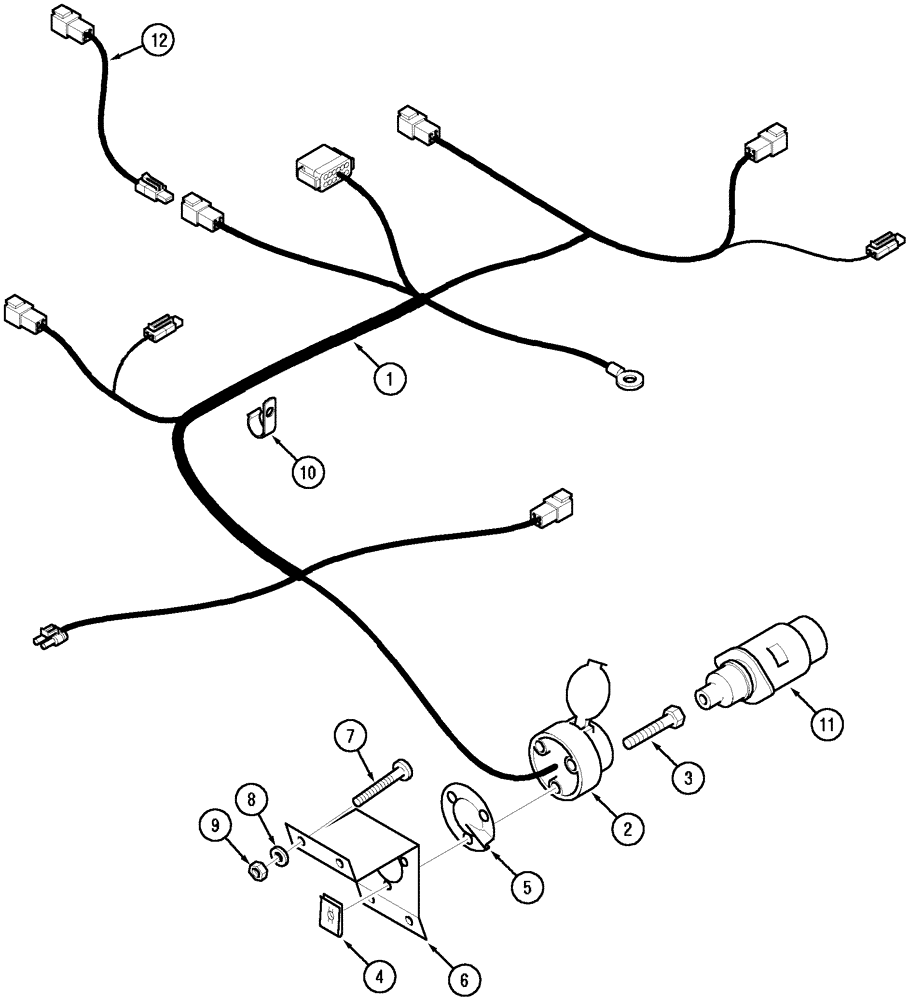

Запчасти Case IH C70 (04-02) - HARNESS - REAR FENDER (04) - ELECTRICAL SYSTEMS

Europe Only

1шт.

1

279800A2

HARNESS

Not Illustrated

1шт.

1

346568A1

HARNESS

Use With, Plastic, Fuel Tank

1шт.

2

3142496R1

SOCKET/RECEPTACLE,A7

7 Pin

1шт.

3

260-14520

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/4"

No.10 x 1-1/4

3шт.

4

3123171R2

NUT

3шт.

5

3131909R1

CAP

1шт.

6

3123184R1

BRACKET

1шт.

7

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

8

492-11010

LOCK WASHER,#10

4шт.

9

225-14110

NUT,#10-24

4шт.

10

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

6шт.

11

3118929R1

SOCKET/RECEPTACLE

7 Pin

1шт.

12

253110A1

CABLE ASSY.

Number Plate Light

1шт.
