Запчасти Case IH C70 (02-40) - CRANKSHAFT (02) - ENGINE

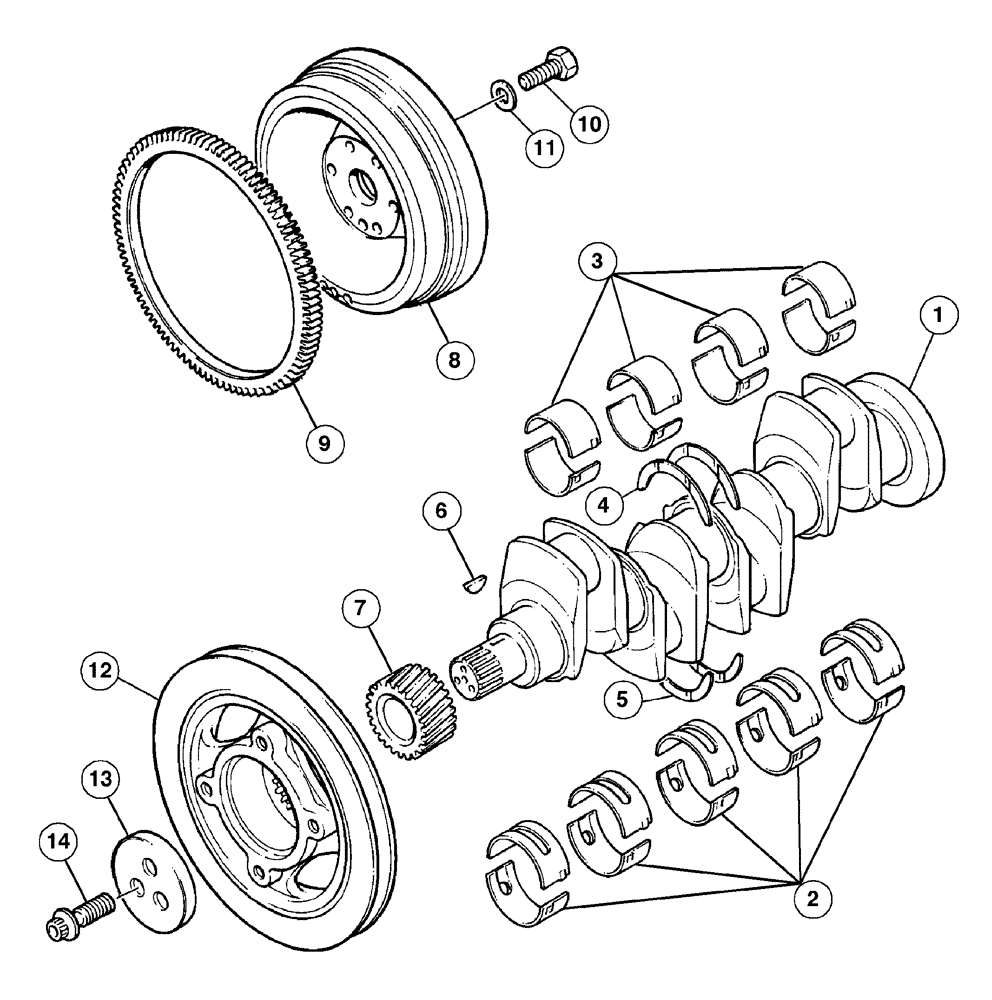

Схема запчастей Case IH C70 - (02-40) - CRANKSHAFT (02) - ENGINE
9
5
2
10
8
14
7
4
13
12
11
6
3
1

Артикул

Название

Примечание

Количество

291956A1

CRANKSHAFT

Consists Of 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Crankshaft

1шт.

2

3118150R1

BEARING SET

Standard, Set Of 5

1шт.

2

3118151R1

BEARING SET

Undersize 0.25mm, Set Of 5

1шт.

2

3118152R1

BEARING SET

Undersize 0.50mm, Set Of 5

1шт.

2

3118153R1

BEARING SET

Undersize 0.75mm, Set Of 5

1шт.

3

REF

INSTRUCTION

Bearing, Con. Rod, Standard, Set Of 4, See Page(s) 2-93,95

1шт.

4

218292A1

THRUST WASHER

Standard

2шт.

4

F62448

WASHER, THRUST

Oversize 0.19mm

2шт.

5

218294A1

THRUST WASHER

Standard

2шт.

5

F62450

WASHER, THRUST

Oversize 0.19mm

2шт.

6

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

7

3118217R1

PINION

1шт.

8

293169A2

FLYWHEEL

Includes 9

1шт.

9

3118310R1

SLEWING RING

1шт.

10

291980A1

SCREW

6шт.

11

218499A1

WASHER

6шт.

12

313065A1

PULLEY

C70

1шт.

12

281577A1

PULLEY

C80 ( - U892101D), C90 ( - U892341D), C100 ( - U892347D)

1шт.

12

313065A1

PULLEY

C80 (U892102D - ), C90 (U892342D - ), C100 (U892348D - )

1шт.

13

281575A1

WASHER, THRUST

1шт.

14

281576A1

SCREW

3шт.

Выбрано товаров: 22
