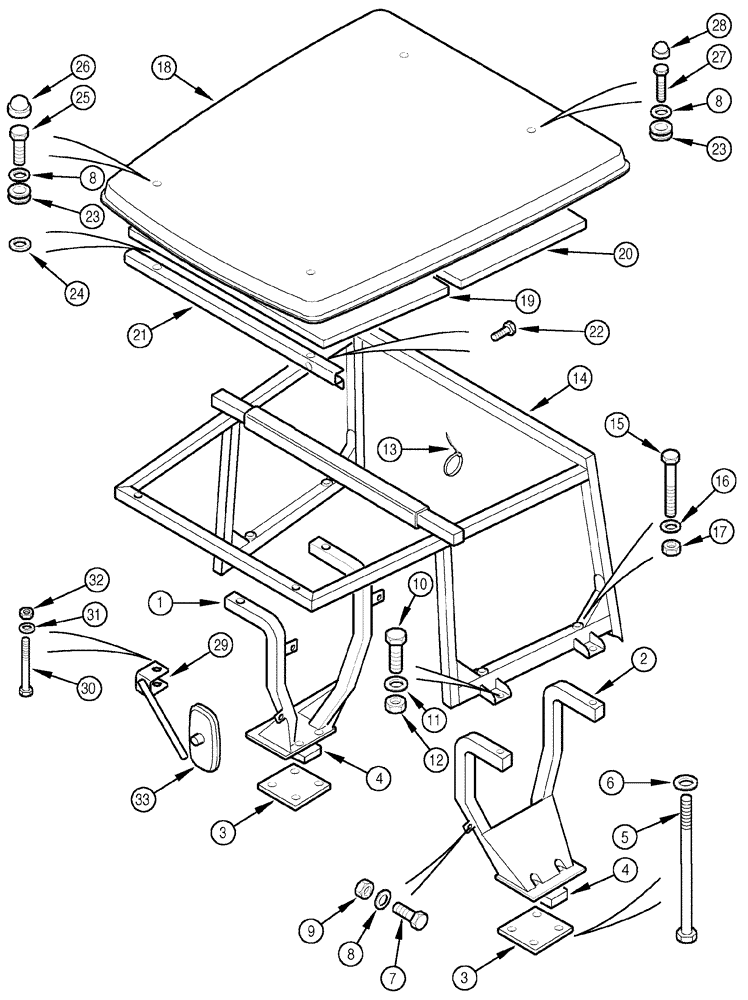

Запчасти Case IH C70 (09-34) - ROLL OVER PROTECTION FRAME (09) - CHASSIS/ATTACHMENTS

Europe Only

1шт.

1

143065A1

SUPPORT

Lower Right

1шт.

2

143066A1

SUPPORT

Lower Left

1шт.

3

143068A1

LARGE PLATE

PLATE, LARGE , High Fender

2шт.

4

143067A1

LARGE PLATE

PLATE, LARGE , High Fender

2шт.

5

814-16210

BOLT,Hex, M16 x 2 x 210mm, Cl 8.8

8шт.

5

814-16260

BOLT,Hex, M16 x 2 x 260mm, Cl 8.8

High Fender

8шт.

6

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

8шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

9

825-1408

NUT,M8, Cl 8

6шт.

10

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

11

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

12

829-1412

NUT,M12, Cl 10.9

4шт.

13

306132C1

CABLE TIE,14.5" L

CABLE STRAP

4шт.

14

143069A2

ARCH

Upper

1шт.

15

614-14100

BOLT,Hex, M14 x 2 x 100mm, Cl 8.8, Full Thd

Hex, M14 x 100, 8.8, Full Thd

4шт.

16

895-11014

WASHER,M14 x 28 x 2.5

8шт.

17

825-1414

NUT,M14, Cl 8

4шт.

18

143070A1

ROOF

1шт.

19

143071A1

LINING

Front

1шт.

20

143072A1

LINING

Rear

1шт.

21

1332530C1

SUPPORT

4шт.

22

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

4шт.

23

143074A1

GROMMET

6шт.

24

1332526C1

WASHER

4шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

26

3221592R1

CAP

4шт.

27

779-14625

SELF-TAP SCREW,Hex Hd, M6.3 x 25

2шт.

28

3221725R1

CAP

2шт.

29

178596A1

SUPPORT

1шт.

30

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

32

825-1408

NUT,M8, Cl 8

1шт.

33

3141916R92

MIRROR

1шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

18шт.
