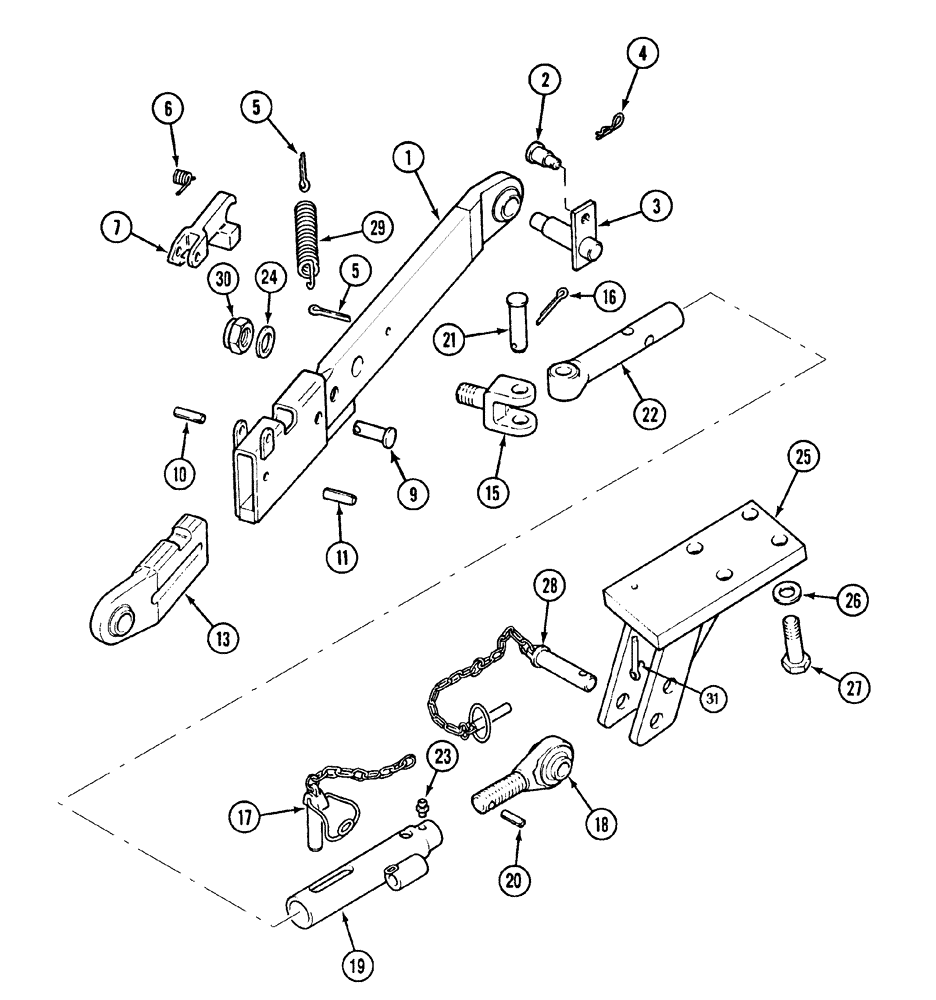

Запчасти Case IH C70 (09-22) - LOWER LINKS - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

Telescopic

1шт.

1

124888A1

LOWER LINK

CBM, Front, Left

1шт.

1

124889A1

LOWER LINK

CBM, Front, Right

1шт.

2

3118063R2

PIN,28.57mm OD x 48.3mm L

2шт.

3

3118060R1

PIN

2шт.

4

538406R1

COTTER PIN

2шт.

5

432-2028

COTTER PIN,5/16" x 1 3/4"

5/16" x 1 3/4"

4шт.

6

403024R1

SPRING

2шт.

7

403023R1

LATCH

2шт.

9

NSS

NOT SOLD SEPARAT

Pin

2шт.

10

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

3/8" x 2 1/8", Slotted

2шт.

11

38-33228

PIN,12.7mm OD x 44.45mm L, Coiled

1/2" x 1 3/4", Coiled

2шт.

13

124891A1

TRACK ROD END ASSY

CBM, Rear, Left

1шт.

13

124892A1

END FITTING

CBM, Rear, Right

1шт.

224249A2

UPPER LINK

Consists Of 15 - 23

2шт.

15

128825A3

CLEVIS,7/8" - 14

1шт.

16

733-5040

COTTER PIN,M5 x 40

1шт.

17

128829A1

HITCH PIN

1шт.

18

226077A1

LIFT LINK END ASSY,M24 x 3

1шт.

19

226078A2

COLUMN JACKET,M24 x 3

1шт.

20

838-5526

LOCK PIN,M5 x 26, Slotted

1шт.

21

128824A1

PIN,24mm OD x 70mm L

1шт.

22

226079A1

STEM

1шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

24

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

15/16 x 1-3/4 x 1/8

2шт.

25

119304A1

SUPPORT

Left

1шт.

25

119306A1

SUPPORT

Right

1шт.

26

492-11062

BEARING WASHER,5/8"

8шт.

27

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

8шт.

28

122407A1

HITCH PIN

2шт.

29

1332053C2

SPRING

2шт.

30

232-46114

LOCK NUT,7/8"-14, GC

2шт.

31

733-5040

COTTER PIN,M5 x 40

2шт.
