Запчасти Case IH C70 (09-12) - REAR FENDERS - FLAT TOP (09) - CHASSIS/ATTACHMENTS

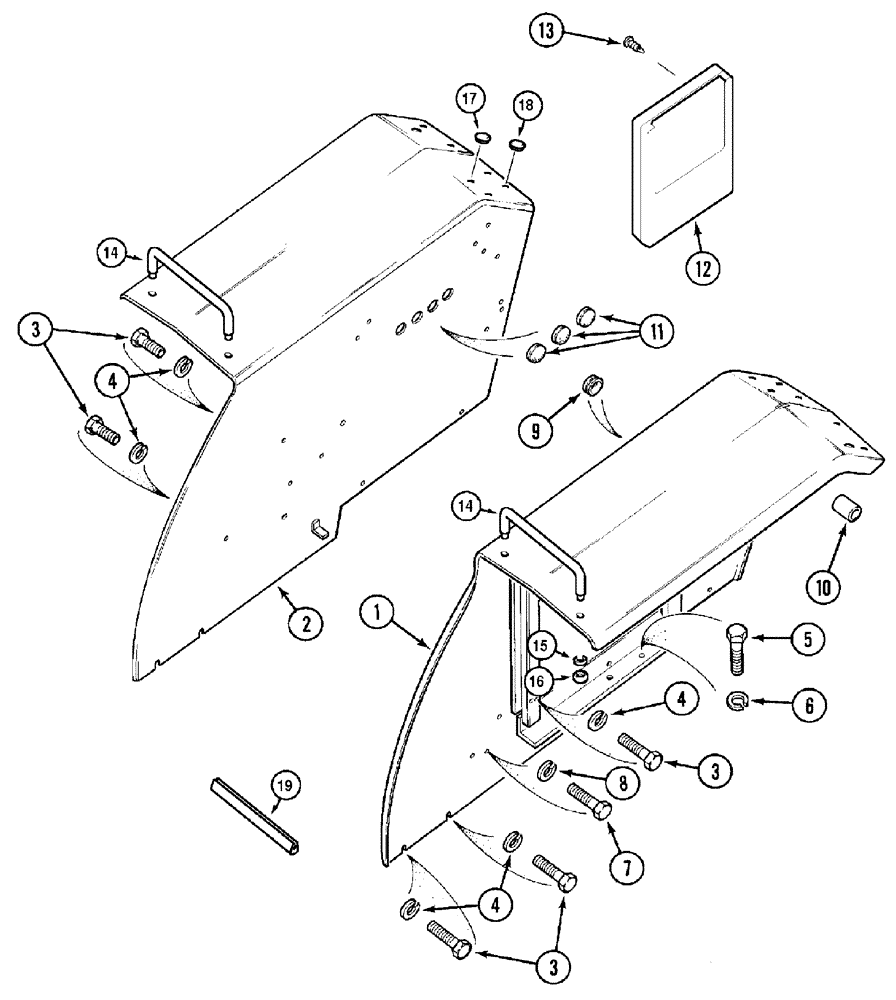

Схема запчастей Case IH C70 - (09-12) - REAR FENDERS - FLAT TOP (09) - CHASSIS/ATTACHMENTS
4
13
7
4
3
12
9
3
17
4
1
2
5
16
11
6
19
10
14
15
14
18
8
3

Артикул

Название

Примечание

Количество

Europe Only A

1шт.

1b

255483A1

FENDER ASSY.

Extra High, Left

1шт.

1b

255481A1

FENDER ASSY.

High, Left

1шт.

1b

255485A1

FENDER ASSY.

Low, Left

1шт.

1

302429A1

FENDER ASSY.

High, Left, 2 Post ROPS Frame

1шт.

1

302427A1

FENDER ASSY.

Low, Left, 2 Post ROPS Frame

1шт.

1

302431A1

FENDER ASSY.

Extra High, Left, 2 Post ROPS Frame

1шт.

1

275441A1

FENDER ASSY.

High, Left, 4 Post ROPS Frame

1шт.

1

275439A1

FENDER ASSY.

Low, Left, 4 Post ROPS Frame

1шт.

Europe Only A

1шт.

2b

255484A1

FENDER ASSY.

Extra High, Right

1шт.

2b

255482A1

FENDER ASSY.

High, Right

1шт.

2b

255486A1

FENDER ASSY.

Low, Right

1шт.

2

302430A1

FENDER ASSY.

High, Right, 2 Post ROPS Frame

1шт.

2

302428A1

FENDER ASSY.

Low, Right, 2 Post ROPS Frame

1шт.

2

302432A1

FENDER ASSY.

Extra High, Right, 2 Post ROPS Frame

1шт.

2

275443A1

FENDER ASSY.

High, Right, 4 Post ROPS Frame

1шт.

2

275440A1

FENDER ASSY.

Low, Right, 4 Post ROPS Frame

1шт.

3

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16 x 1/2

6шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

4

492-11031

LOCK WASHER,5/16"

8шт.

5

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

4шт.

6

492-11062

BEARING WASHER,5/8"

4шт.

7

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

7

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

3шт.

9

3112888R1

PLUG

13 mm, Plough Lamp

1шт.

10

3125820R1

SLEEVE

1шт.

11

99964C1

PLUG

6шт.

12

223935A1

BOX

1шт.

13

A162364

FASTENER

3шт.

14

1533074C2

HANDLE

Not Used With 275439/40/41/43A1

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

825-1408

NUT,M8, Cl 8

4шт.

17

3112888R1

PLUG

13 mm

1шт.

18

3113430R1

PLUG

1/2 in

1шт.

19

144297A1

GASKET

1310 mm

2шт.

19

175643A1

GASKET

1375 mm

2шт.

Выбрано товаров: 38
