Запчасти Case IH C70 (09-01) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS

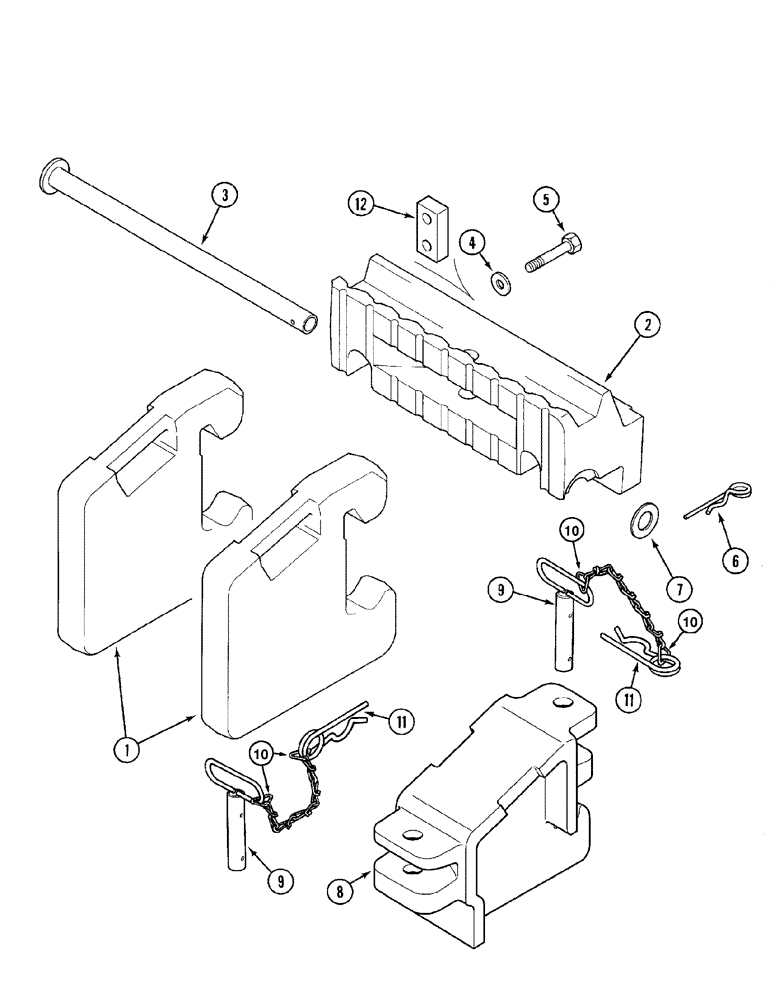

Схема запчастей Case IH C70 - (09-01) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS
10
7
1
10
9
5
9
12
4
3
10
6
11
11
2
8

Артикул

Название

Примечание

Количество

Europe Only

1шт.

81814C1

WEIGHT

Machine Application Consists Of 6 Weights Max.

1шт.

81817C1

SET

Machine Application Consists Of 9 Weights Max.

1шт.

1

3223250R2

WEIGHT

47 kg

1шт.

2

1537210C1

SUPPORT

92 kg

1шт.

3

T100545

TUBE,562.5 mm L

1шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

5

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

5

827-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

Row Crop

4шт.

6

1328360C1

SPRING CLIP

1шт.

7

1328361C1

WASHER

1шт.

8

T101136

WEIGHT

1шт.

9

368197A1

CLEVIS PIN,31mm OD x 337mm L

Zinc, Includes 10,11

1шт.

9

3147825R92

PIN,32mm OD x 508.85mm L

Includes 10,11

1шт.

10

3057366R1

HOOK,Knotter Chain

2шт.

11

1328260C1

PIPE

1шт.

12

182331A1

LARGE PLATE

PLATE, LARGE , If So Equipped

2шт.

Выбрано товаров: 17
