(02-09) - COOLANT RECOVERY SYSTEM

Запчасти Case IH C70 (02-09) - COOLANT RECOVERY SYSTEM (02) - ENGINE

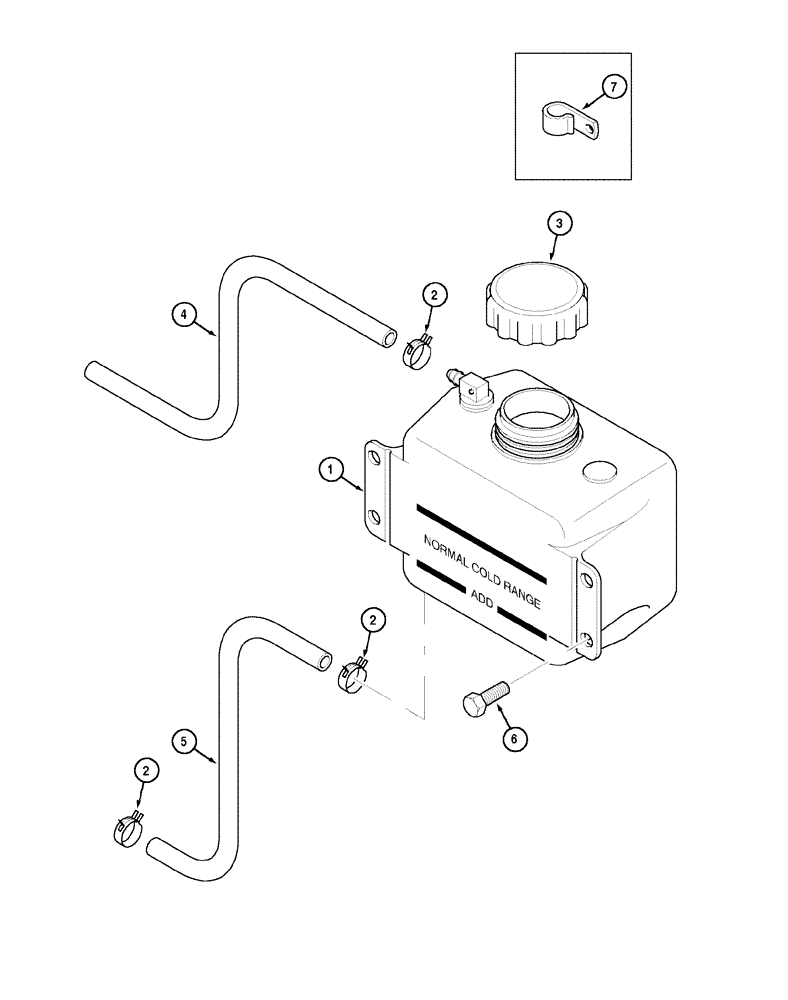

Схема запчастей Case IH C70 - (02-09) - COOLANT RECOVERY SYSTEM (02) - ENGINE
7
2
5
3
6
2
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

258621A2

RESERVOIR,2L

Includes 3

1шт.

2

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

3

1547924C1

CAP

1шт.

4

253927A1

A/C HOSE,914.00 mm

Cut from 194881A1

1шт.

5

238879A2

HOSE,1400.00 mm

Cut From 194881A1

1шт.

6

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

7

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

3шт.

194881A1

HOSE,7.929mm ID x 305mm L, SAE 30R7

25 ft, Bulk Length

1шт.
