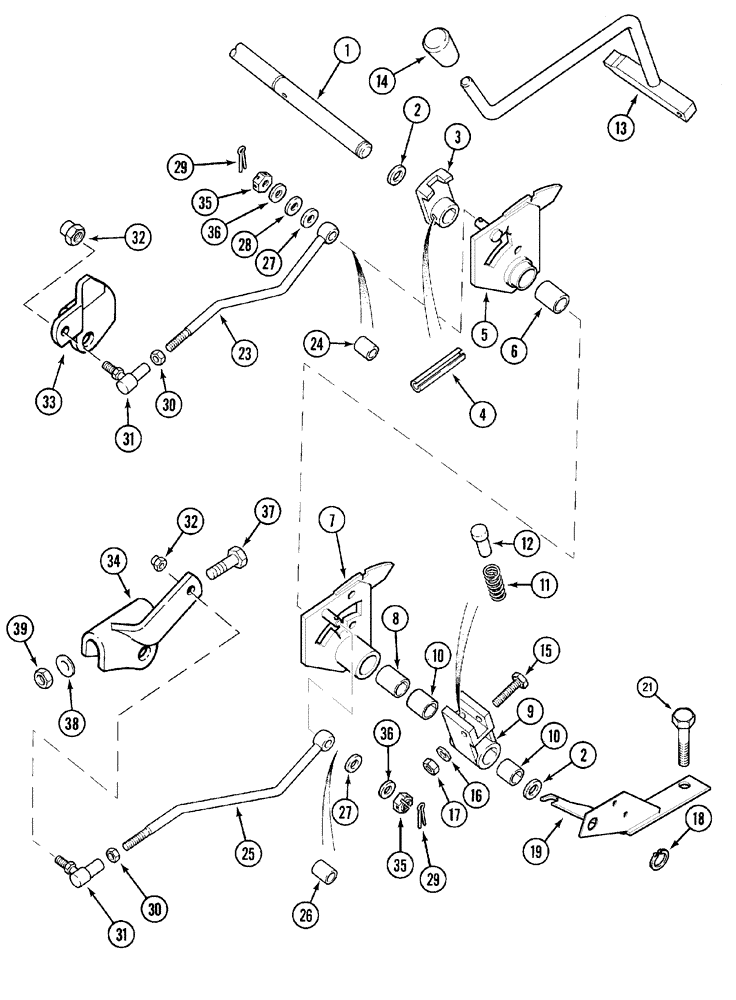

Запчасти Case IH C70 (06-24) - RANGE SHIFT CONTROLS (06) - POWER TRAIN

Without Forward And Reverse

1шт.

1

3129155R3

SHAFT

333.5 mm, See Page(s) 6-61

1шт.

2

495-81048

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

13/32 x 1-1/4 x 1/32

1шт.

3

98573C1

LEVER

1шт.

4

38-32028

PIN,7.92mm OD x 44.45mm L

5/16" x 1 3/4", Coiled

1шт.

5

292763A2

LEVER ASSY.

Range L - R, Includes 6

1шт.

6

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

7

292764A2

LEVER ASSY.

Range H - N, Includes 8

1шт.

8

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

9

3129214R93

HOUSING ASSY.

Includes 10

1шт.

10

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

11

71486C1

SPRING

1шт.

12

439-158

HEADED PIN,5/16" x 1/2"

5/16 x 1/2

1шт.

13

318809A1

LEVER ASSY.

1шт.

14

1265216C1

BALL KNOB

L, H, R

1шт.

15

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

1шт.

16

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16)

1шт.

17

231-4116

NUT,3/8"-16, GB

3/8

1шт.

18

100-1187

SNAP RING,#87, Ext

1шт.

19

256743A3

SUPPORT

See Page(s) 6-67,69

1шт.

21

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

23

1536646C1

ROD ASSY.

Range L - R, Includes 24

1шт.

23

341851A1

LEVER

C90, C100 Mexico, Range L - R, Includes 24

1шт.

24

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

25

1536648C1

ROD ASSY.

Range H - N, Includes 26

1шт.

25

341850A1

LEVER

C90, C100 Mexico, Range H - N, Includes 26

1шт.

26

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

27

83723R1

WAVE WASHER

2шт.

29

32-612

COTTER PIN,3/32" x 3/4"

2шт.

30

1500536C1

JAM NUT

7/16

2шт.

31

1500497C1

BALL JOINT

2шт.

32

274841

BEARING CONE,2.9528" ID x 0.9843"

7/16 in

2шт.

33

179143A3

LEVER ASSY.

Range L - R

1шт.

33

341947A1

LEVER ASSY.

C90, C100 Mexico, Range L - R

1шт.

34

179140A3

LEVER ASSY.

Range H - N

1шт.

34

341946A1

LEVER ASSY.

C90, C100 Mexico, Range H - N

1шт.

35

425-126

SLOTTED NUT,3/8"-16, G5

3/8; 5

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

37

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

2шт.

38

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

39

829-1312

NUT,M12 x 1.75, Cl 10

2шт.
