Запчасти Case IH C70 (06-23) - SPEED SHIFT CONTROL (06) - POWER TRAIN

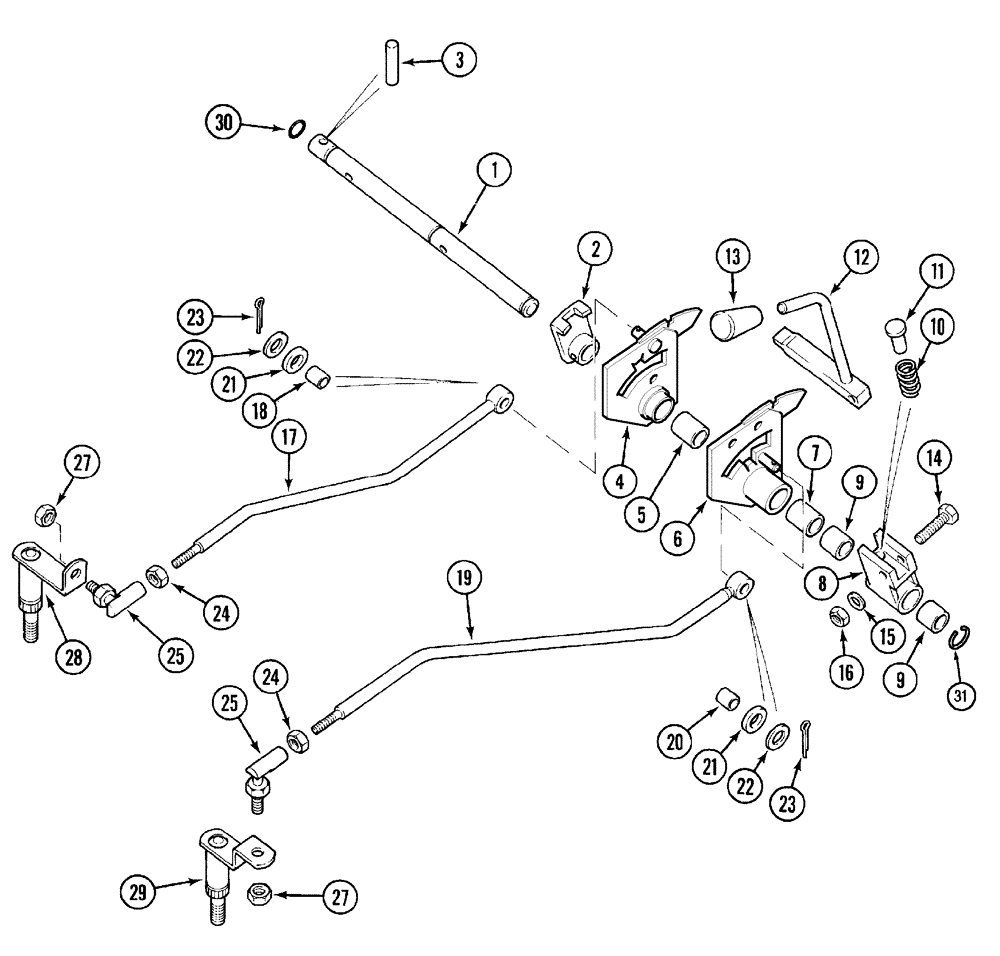

Схема запчастей Case IH C70 - (06-23) - SPEED SHIFT CONTROL (06) - POWER TRAIN
24
14
21
9
5
23
3
20
18
29
28
7
25
22
12
6
31
1
17
24
25
16
10
9
22
4
8
13
23
27
19
11
15
30
21
2
27

Артикул

Название

Примечание

Количество

1

3129155R3

SHAFT

333.5 mm, Without Forward And Reverse

1шт.

1

3129270R1

SHAFT

With Forward And Reverse

1шт.

2

3129218R2

PLATE

1шт.

3

38-32028

PIN,7.92mm OD x 44.45mm L

5/16" x 1 3/4", Coiled

2шт.

4

292767A2

LEVER ASSY.

1st and 2nd Speed, Includes 5

1шт.

5

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

6

292769A2

LEVER ASSY.

3rd and 4th Speed, Includes 7

1шт.

7

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

8

3129214R93

HOUSING ASSY.

Includes 9

1шт.

9

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

10

71486C1

SPRING

1шт.

11

439-158

HEADED PIN,5/16" x 1/2"

5/16 x 1/2

1шт.

12

3129265R5

LEVER

Speed

1шт.

13

1265215C1

BALL KNOB

1, 2, 3, 4

1шт.

14

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

1шт.

15

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16)

1шт.

16

231-4116

NUT,3/8"-16, GB

3/8

1шт.

17

302968A1

SPEED CHANGE LEVER

1st and 2nd Speed, Includes 18

1шт.

18

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

19

302970A1

SPEED CHANGE LEVER

3rd and 4th Speed, Includes 20

1шт.

20

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

21

83723R1

WAVE WASHER

2шт.

23

32-612

COTTER PIN,3/32" x 3/4"

2шт.

24

1500536C1

JAM NUT

7/16

2шт.

25

1500497C1

BALL JOINT

2шт.

27

231-4617

LOCK NUT,7/16"-20, GB

7/16 in

2шт.

28

3129166R1

ARM ASSY.

1st and 2nd Speed

1шт.

29

3129172R2

ARM ASSY.

3rd and 4th Speed

1шт.

30

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

31

100-1187

SNAP RING,#87, Ext

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

Выбрано товаров: 31
