Запчасти Case IH C70 (06-21) - REAR AXLE, CARRIER AND CONNECTIONS (06) - POWER TRAIN

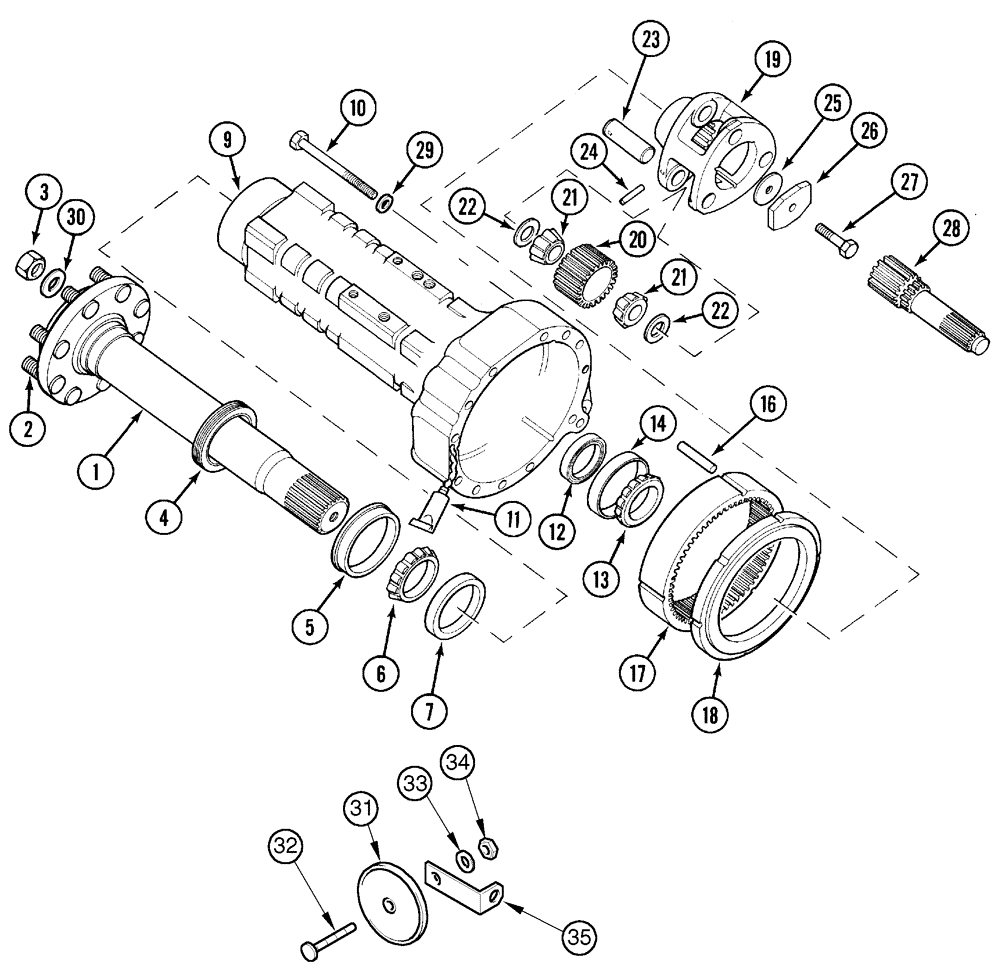

Схема запчастей Case IH C70 - (06-21) - REAR AXLE, CARRIER AND CONNECTIONS (06) - POWER TRAIN
27
25
35
10
24
20
1
22
12
21
30
22
6
32
26
28
4
33
2
17
3
29
31
19
16
21
23
14
18
34
9
5
11
13
7

Артикул

Название

Примечание

Количество

1

404345R14

HALF SHAFT

Includes 2

2шт.

1

527353R11

AXLE, REAR

AXLE REAR , Row Crop

2шт.

2

404341R4

STUD,5/8" - 18 x 55mm, Full Thd

8шт.

3

429-1110

NUT,5/8"-18, G8

16шт.

4

105471C1

OIL SEAL

2шт.

5

399796R1

SLEEVE

2шт.

6

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

2шт.

7

ST988

BEARING CUP,121.44mm OD x 17.46mm W

2шт.

9

119688A1

AXLE CARRIER

Left

1шт.

9

117635A1

AXLE CARRIER

Left, Row Crop

1шт.

9

119689A1

AXLE CARRIER

Right

1шт.

9

117636A1

AXLE CARRIER

Right, Row Crop

1шт.

10

326-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

22шт.

11

B17501

LOCTITE

6 ml

1шт.

12

399798R91

OIL SEAL

2шт.

13

ST2175

BEARING, CONE,79.25mm ID x 19.05mm W

2шт.

14

ST981

BEARING CONE,112.71mm OD x 19.05mm W

2шт.

16

529686R1

DOWEL

6шт.

17

535317R1

GEAR, RING

RING, GEAR , 66T

2шт.

18

114620C1

RING,260mm OD

2шт.

19

1110429C1

PINION CARRIER

GEAR CARRIER

2шт.

20

66128C3

PINION

25T

6шт.

21

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

1-5/16 ID

12шт.

22

139256A1

SHIM KIT

1шт.

23

399812R1

SHAFT

6шт.

24

38-32018

PIN,5/16" x 1 1/8", Coiled

6шт.

25

399749R1

SHIM,17mm ID x 55.9mm OD x 0.18mm Thk

0.007 in

3шт.

25

399750R1

SHIM,17mm ID x 55.9mm OD x 0.31mm Thk

0.012 in

3шт.

25

399751R1

SHIM,17mm ID x 55.9mm OD x 0.76mm Thk

0.0299 in

2шт.

26

399748R1

SPACER

2шт.

27

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8 x 1-1/2; 8

2шт.

28

404343R1

SHAFT

Right

1шт.

28

404342R1

SHAFT

Left

1шт.

29

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

21/32 x 1-5/16 x 3/32

22шт.

30

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

21/32 x 1-5/16 x 3/32

16шт.

31

3118665R2

REFLECTOR

2шт.

32

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.

33

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

34

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

35

107483C2

SUPPORT

2шт.

Выбрано товаров: 40
