Запчасти Case IH C70 (06-12) - REAR FRAME (06) - POWER TRAIN

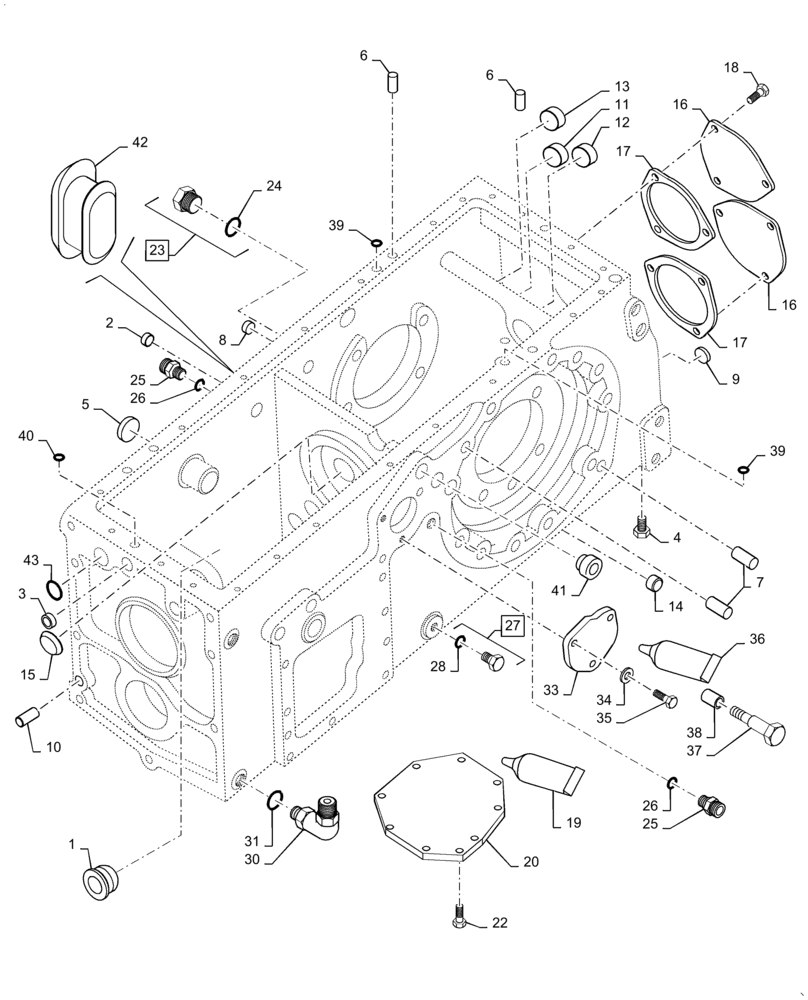

Схема запчастей Case IH C70 - (06-12) - REAR FRAME (06) - POWER TRAIN
33
28
39
14
15
24
18
11
4
27
17
26
2
20
42
37
16
3
43
38
8
41
5
19
26
7
23
17
6
30
12
6
25
25
10
16
39
13
1
31
35
34
9
36
22
40

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Without Independent Power Take Off A

1шт.

322750A1

HOUSING ASSY.

Version Without Shiftable P.T.O., Includes 1,2,3,4,6,7,10

1шт.

322754A1

HOUSING ASSY.

Version With Shiftable PTO, Includes 1,2,3,4,6,7,10

1шт.

1

527748R2

PLUG

Oil Reservoir

1шт.

2

930342R1

PLUG,M16, Conical

16 mm dia, With Forward And Reverse

1шт.

3

41-1013

PLUG,Cup, 13/16"

13/16 in dia

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

5

41-1620

PLUG,Cup, 1 1/4", Stainless

1-1/4

1шт.

6

37-1816

DOWEL,1/2" x 1"

1/2 x 1

2шт.

7

37-11024

DOWEL,5/8" x 1 1/2"

5/8 x 1-1/2

4шт.

8

41-1612

PLUG,Cup, 3/4", Stainless

Without Differential Lock

2шт.

9

41-1036

PLUG,Cup, 2 1/4"

Without Dual Independent Power Take Off

1шт.

10

37-1820

DOWEL,1/2" x 1 1/4"

1/2 x 1-1/4

1шт.

11

41-1040

PLUG,Cup, 2 1/2"

2-1/2 in dia

1шт.

12

41-1622

PLUG,Cup, 1 3/8", Stainless

1-3/8 in dia

1шт.

13

3142063R1

PLUG

52 mm dia

1шт.

14

41-1622

PLUG,Cup, 1 3/8", Stainless

1-3/8 in dia

1шт.

15

41-1034

PLUG,Cup, 2 1/8"

2-1/8 in dia

1шт.

16

399842R1

COVER

Dual Speed

2шт.

16

399842R1

COVER

Single Speed

1шт.

17

1970891C1

GASKET

Rear Frame

1шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

19

B17501

LOCTITE

6 ml

1шт.

20

94293C2

COVER

2WD

1шт.

22

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

9шт.

23

273916

PLUG,Hex, 1-5/16" - 12 ORB

Auxiliary Hydraulic Pump, Includes Ref. 24

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

3129671R1

FITTING

Brake

2шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

27

9672438

PLUG,7/16" - 20 ORB

Incl. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

30

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 31

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

116599A2

COVER

4WD

1шт.

33

119248A1

SUPPORT

2WD, See Page(s) 7-15

1шт.

34

492-11038

LOCK WASHER,3/8"

4WD

2шт.

35

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4WD

2шт.

36

B17501

LOCTITE

6 ml

1шт.

37

135925A1

BOLT,Hex, 3/8" - 16 - 14.22 - 14.30mm x 56mm L

4WD

1шт.

38

135951A1

SPACER

4WD

1шт.

39

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

2шт.

40

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

7/8 ID x 1/8

1шт.

41

282992A1

ADAPTER

1шт.

42

315473A1

PLUG

1шт.

43

86629540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

Выбрано товаров: 45
