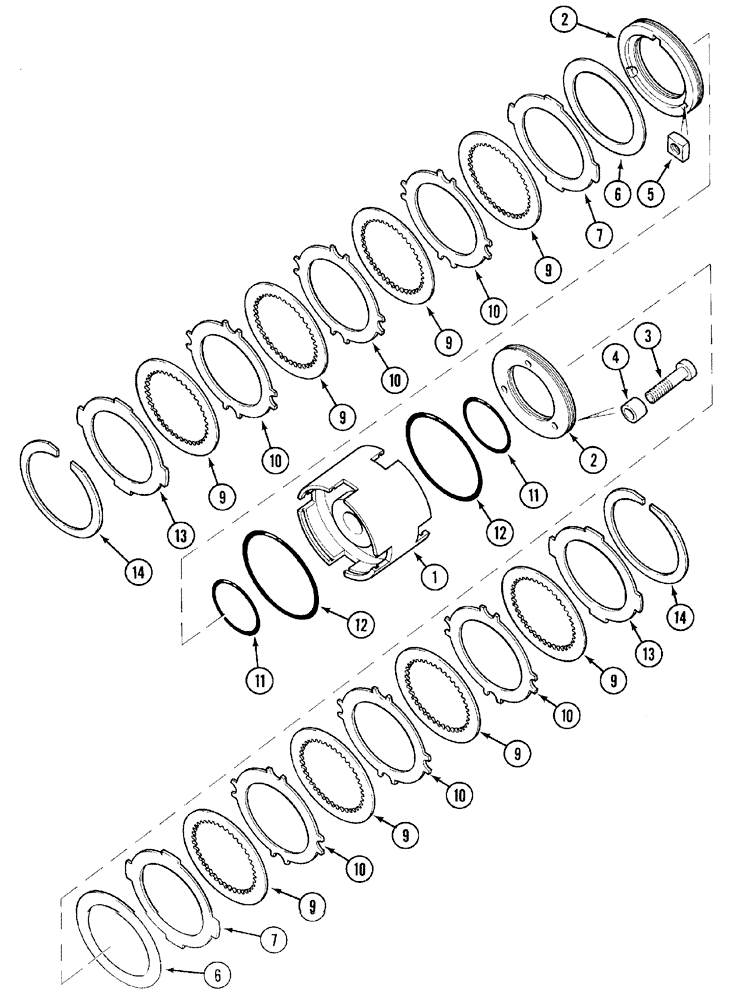

Запчасти Case IH C70 (06-10) - SPEED TRANSMISSION - FORWARD AND REVERSE (06) - POWER TRAIN

1

70015C1

CAGE

Clutch, Direct Drive, See Page(s) 6-29

1шт.

2

70017C1

PISTON

2шт.

3

1536134C1

HEX SOC SCREW,1/4" - 28 x 1-1/32", Gr 5

3шт.

4

527769R2

SPACER

3шт.

5

65240C1

SQUARE NUT

1/4

3шт.

6

70021C1

SHIM

0.014 in

2шт.

6

70022C1

SHIM,98.6mm ID x 125.98mm OD x 0.64mm Thk

0.024 in

2шт.

6

70023C1

SHIM,98.6mm ID x 125.98mm OD x 0.89mm Thk

0.036 in

2шт.

7

402572R1

PLATE

2шт.

534937R92

PACKAGE, REPAIR

Clutch Plate

1шт.

9

3125322R2

DISC

8шт.

10

401717R1

PLATE

6шт.

11

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

Inner

2шт.

12

401724R1

SEAL,0.551" ID x 0.07" Width

Outer

2шт.

13

70016C1

PLATE

Clutch

2шт.

14

401720R1

CIRCLIP

2шт.
