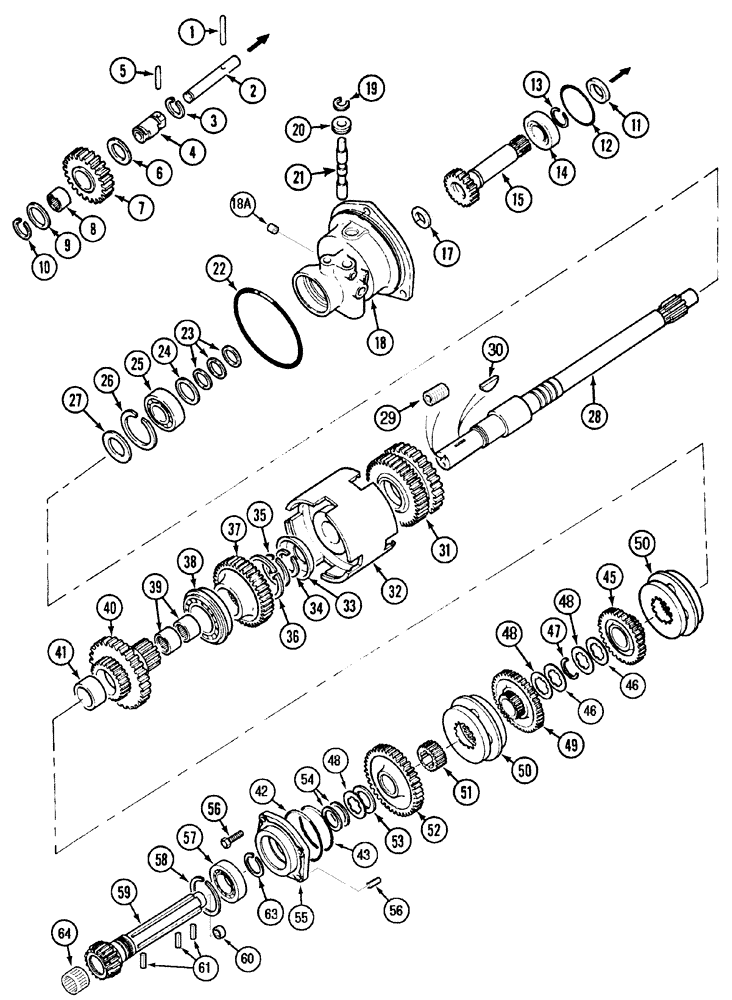

Запчасти Case IH C60 (06-11) - SPEED TRANSMISSION - FORWARD AND REVERSE (06) - POWER TRAIN

1

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

3/16" x 1 1/4", Coiled

1шт.

2

527774R1

SHAFT

Forward/Reverse Idler

1шт.

3

362260R1

RING, SNAP

RING SNAP

1шт.

4

527775R2

SLEEVE

1шт.

5

38-11416

LOCK PIN,7/32" x 1", Slotted

7/32" x 1", Slotted

1шт.

6

527772R1

WASHER

1шт.

7

527776R1

PINION

23T

1шт.

8

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

1шт.

9

527772R1

WASHER

1шт.

10

362260R1

RING, SNAP

RING SNAP

1шт.

11

188931C1

OIL SEAL,47.63mm ID x 63.7mm OD x 8.41mm Thk

1шт.

12

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

13

101-11196

SNAP RING,#196, 1.849", Ext

1шт.

14

237417A1

BEARING, BALL,49.99mm ID x 89.99mm OD x 19.94mm W

1шт.

15

242102A1

SHAFT

1000rpm/25T, Independent Power Take Off

1шт.

15

242103A1

SHAFT

750rpm/22T, Independent Power Take Off

1шт.

17

114321A1

OIL SEAL

1шт.

18

291829A1

BALL RACE

Includes 18A

1шт.

18b

1345889C1

PLUG

6,5 mm OD

4шт.

19

100-3437

SNAP RING,#37, Ext

1шт.

20

531539R1

COLLAR

1шт.

21

536974R1

STEM

1шт.

22

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

23

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING

3шт.

24

A21619

CIRCLIP

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

26

377911R1

RING, SNAP

RING SNAP

1шт.

27

291833A1

THRUST WASHER

1шт.

28

291831A1

SHAFT

Includes 30

1шт.

29

1345890C1

PLUG

5 mm OD

2шт.

30

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

31

527763R3

PINION

28T, Drive

1шт.

32

70015C1

CAGE

1шт.

33

70020C1

SLINGER

1шт.

34

101-11125

SNAP RING,#125, 1.179", Ext

1шт.

35

101-11175

SNAP RING,#175, 1.640", Ext

No. 175

1шт.

36

70244C1

RING, SNAP

RING SNAP

1шт.

37

404199R3

SPROCKET ASSY.

Direct Drive

1шт.

38

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

39

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

1шт.

40

242185A2

PINION

28T, Direct Drive

1шт.

41

A76557

BEARING,31.75mm ID x 41.3mm OD x 18.86mm W

1шт.

42

638-54125

O-RING,3.55mm Thk x 125mm ID, Cl 5, 75 Duro

125 ID x 3,55

1шт.

43

638-54115

O-RING,3.55mm Thk x 115mm ID, Cl 5, 75 Duro

115 ID x 3,55

1шт.

45

242188A2

PINION

24T, Driven, 3rd Speed

1шт.

46

245832A1

WASHER

3.2 mm

1шт.

47

398329R1

CIRCLIP

2.36 mm

1шт.

47

254510A1

CIRCLIP

2.1 mm

1шт.

47

256519A1

CIRCLIP

2.62 mm

1шт.

47

254509A1

CIRCLIP

1.85 mm

1шт.

48

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

3шт.

49

245208A1

PINION

33T, Driven, 2nd Speed

1шт.

50

304844A1

SYNCHRONIZER

See Page(s) 6-53

2шт.

52

245207A1

PINION

41T, Driven, 1st Speed

1шт.

53

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

2шт.

54

116597A1

SEAL

2шт.

55

253944A2

BALL RACE

Includes 56

1шт.

56

38-1605

LOCK PIN,2.36mm OD x 7.92mm L, Slotted

3/32" x 5/16", Slotted

1шт.

57

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

58

A32422

SNAP RING,2.36mm Thk, Int

1шт.

59

254508A2

SHAFT ASSY.

Includes 60,61

1шт.

60

115583A1

PLUG

5/8 in dia

1шт.

61

38-1805

LOCK PIN,1/8" x 5/16", Slotted

1/8" x 5/16", Slotted

3шт.

62

222113A1

BEARING, ROLLER,49.99mm ID x 89.99mm OD x 19.94mm W

1шт.

63

A27089

SNAP RING,2.36mm Thk, Ext

1шт.

64

116589A1

BEARING, NEEDLE,37.3mm ID x 50.01mm OD x 28.5mm W

1шт.
