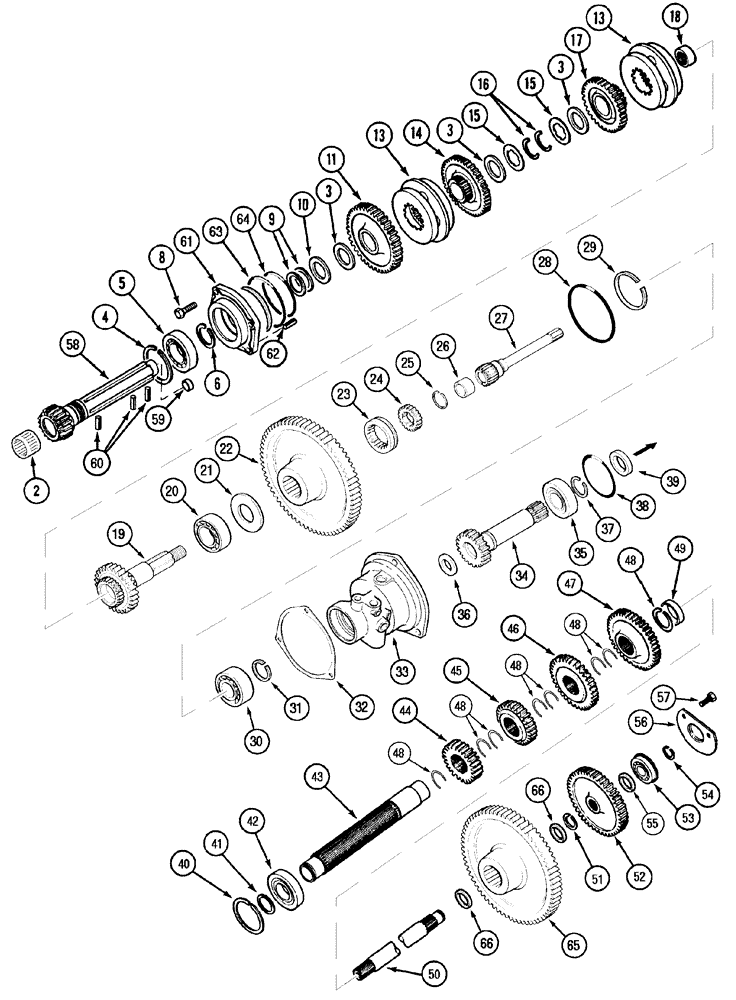

Запчасти Case IH C60 (06-05) - SPEED TRANSMISSION - WITH CREEP SPEED (06) - POWER TRAIN

2

116589A1

BEARING, NEEDLE,37.3mm ID x 50.01mm OD x 28.5mm W

1шт.

3

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

3шт.

4

A32422

SNAP RING,2.36mm Thk, Int

1шт.

5

222113A1

BEARING, ROLLER,49.99mm ID x 89.99mm OD x 19.94mm W

Main Shaft

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

1шт.

8

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

9

116597A1

SEAL

2шт.

10

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

1шт.

11

245207A1

PINION

41T, Driven, 1st Speed

1шт.

13

304844A1

SYNCHRONIZER

See Page(s) 6-53

2шт.

14

245208A1

PINION

33T, Driven, 2nd Speed

1шт.

15

245832A1

WASHER

3.2 mm

2шт.

16

398329R1

CIRCLIP

2.36 mm

2шт.

16

254509A1

CIRCLIP

1.85 mm

2шт.

16

254510A1

CIRCLIP

2.1 mm

2шт.

16

256519A1

CIRCLIP

2.62 mm

1шт.

17

242188A2

PINION

24T, Driven, 4th Speed

1шт.

18

A76557

BEARING,31.75mm ID x 41.3mm OD x 18.86mm W

1шт.

19

248343A2

SHAFT

28T, Creep Speed

1шт.

20

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

21

1343162C1

THRUST WASHER

1шт.

22

1343155C3

GEAR

67T

1шт.

23

1343159C3

COLLAR

1шт.

24

1343160C3

HUB

1шт.

25

1343169C1

SNAP RING

1шт.

26

1349002C1

BEARING, NEEDLE

1шт.

27

224569A1

SHAFT

1шт.

28

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

29

101-21334

SNAP RING,#334, 3.590", Int

1шт.

30

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

31

101-11177

SNAP RING,#177, 1.657", Ext

1шт.

32

1343292C1

SHIM

1шт.

33

234514A1

BALL RACE

Clutch Shaft

1шт.

34

242102A1

SHAFT

1000rpm/25T

1шт.

34

242103A1

SHAFT

750rpm/22T

1шт.

35

237417A1

BEARING, BALL,49.99mm ID x 89.99mm OD x 19.94mm W

1шт.

36

114321A1

OIL SEAL

Independent Power Take Off

1шт.

37

101-11196

SNAP RING,#196, 1.849", Ext

1шт.

38

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

39

188931C1

OIL SEAL,47.63mm ID x 63.7mm OD x 8.41mm Thk

1шт.

40

574964R1

RING, SNAP

RING SNAP

1шт.

41

101-11177

SNAP RING,#177, 1.657", Ext

1шт.

42

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

43

258456A1

SHAFT

1шт.

44

258445A1

PINION

26T, Drive, 1st Speed

1шт.

45

258447A1

PINION

34T, Drive, 2nd Speed

1шт.

46

258451A1

PINION

43T, Drive, 4th Speed

1шт.

47

258449A1

PINION

39T

1шт.

48

258444A1

SNAP RING

8шт.

49

112822R91

NEEDLE BEARING,Needle, 50.78mm ID x 60.31mm OD x 25.4mm W

1шт.

50

135986A2

SHAFT

1шт.

51

101-11118

SNAP RING,#118, 1.121", Ext

1шт.

52

241693A1

PINION

1000rpm/50T

1шт.

52

241695A2

PINION

750rpm/59T

1шт.

53

135990A1

BEARING, BALL,19.99mm ID x 71.99mm OD x 18.94mm W

1шт.

54

800-1120

SNAP RING,M20, Ext

1шт.

55

244076A1

SPACER

1шт.

56

143944A1

FLANGE

1шт.

57

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

3шт.

58

254508A2

SHAFT ASSY.

Main, Includes 59,60

1шт.

59

115583A1

PLUG

5/8 in dia

1шт.

60

38-1805

LOCK PIN,1/8" x 5/16", Slotted

1/8" x 5/16", Slotted

3шт.

61

253944A2

BALL RACE

Includes 62

1шт.

62

38-1605

LOCK PIN,2.36mm OD x 7.92mm L, Slotted

3/32" x 5/16", Slotted

1шт.

63

638-54125

O-RING,3.55mm Thk x 125mm ID, Cl 5, 75 Duro

125 ID x 3,55

1шт.

64

638-54115

O-RING,3.55mm Thk x 115mm ID, Cl 5, 75 Duro

115 ID x 3,55

1шт.

65

1342933C1

PINION

28/75T

1шт.

66

1343156C2

THRUST WASHER,44.63mm ID x 63mm OD x 2.38mm Thk

2шт.
