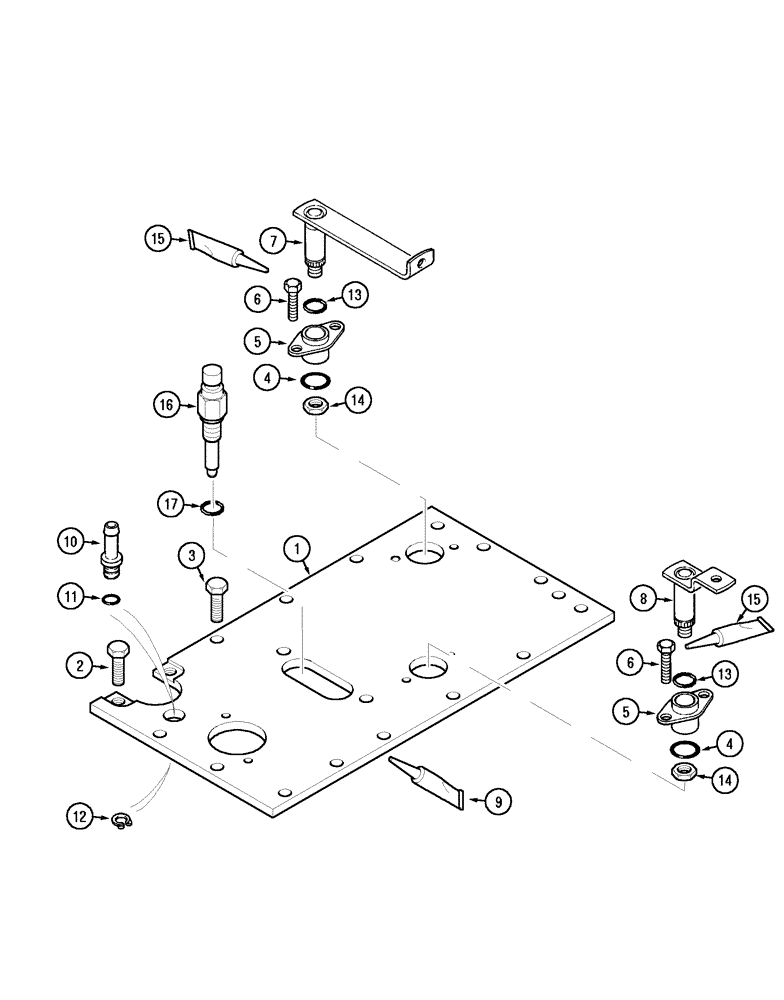

Запчасти Case IH C60 (06-03) - CLUTCH HOUSING TOP COVER (06) - POWER TRAIN

1

259394A1

COVER

Standard, Powershift

1шт.

1

259396A1

COVER

Creep Speed

1шт.

1

259395A1

COVER

Forward-Reverse, Illustrated

1шт.

2

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

3

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

16шт.

3

615-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

With Creep Speed

18шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

2шт.

5

3129165R2

HOUSING

2шт.

6

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

4шт.

7

243467A1

ARM ASSY.

1st and 2nd Speed, See Page(s) 6-71

1шт.

8

243468A1

ARM ASSY.

3rd and 4th Speed, See Page(s) 6-71

1шт.

9

B17501

LOCTITE

6 ml

1шт.

10

3129200R1

ADAPTER

Brake

1шт.

11

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

12

100-1168

SNAP RING,#68, Ext

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

832-10312

NUT,M12 x 1.75, Cl8

2шт.

15

K965162

LOCTITE

3 ml

1шт.

15

B501076

LOCTITE

24 ml

1шт.

16

244024A1

NEUTRAL START SWITCH

2шт.

17

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.
