Запчасти Case IH C60 (05-10) - WHEEL HUBS AND CAPS (05) - STEERING

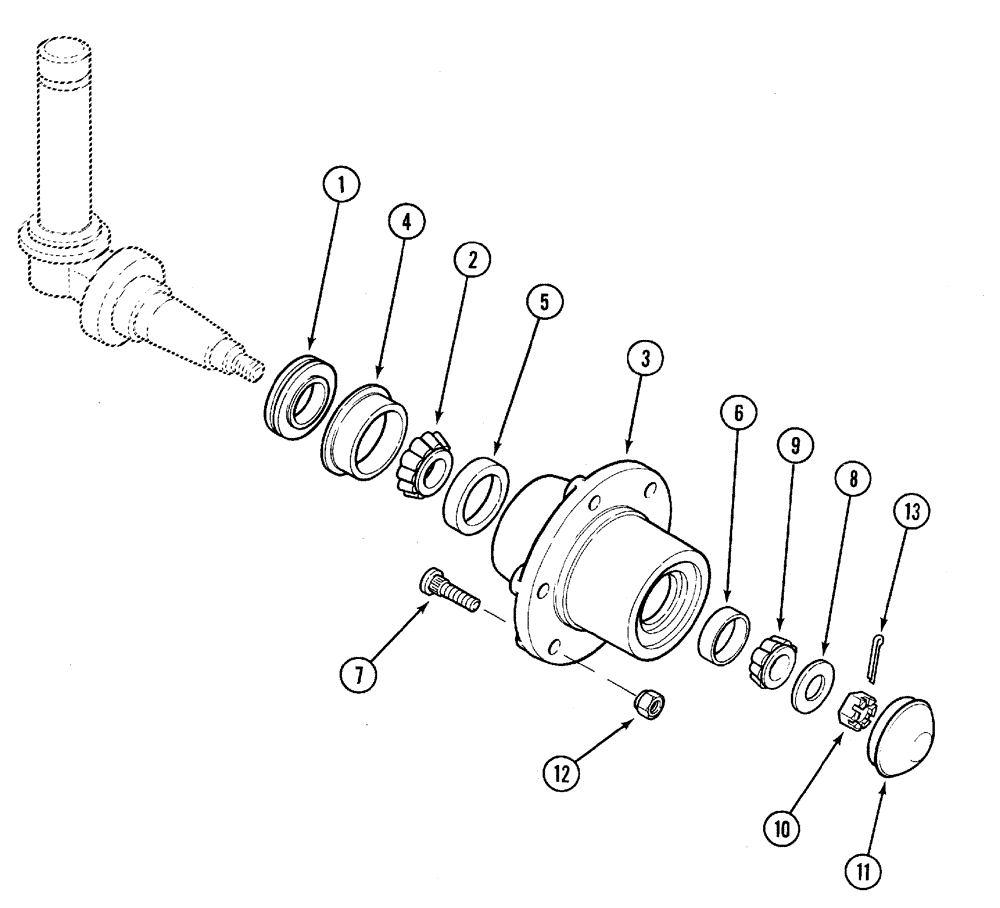

Схема запчастей Case IH C60 - (05-10) - WHEEL HUBS AND CAPS (05) - STEERING
12
6
3
2
8
5
9
4
1
10
7
13
11

Артикул

Название

Примечание

Количество

1

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

2шт.

2

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

1-25/32 ID

2шт.

3

67527C92

HUB

Includes 4 - 7

2шт.

4

67328C1

SEALING RING

SEALRING

2шт.

5

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

2-7/8 OD

2шт.

6

536054R1

BEARING CUP,60mm OD x 11.94mm W

2шт.

7

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

6шт.

8

3118706R1

WASHER

2шт.

9

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

2шт.

10

1332751C1

SLOTTED NUT

3/4

2шт.

11

612884R1

HUB CAP

2шт.

12

453770R1

WHEEL NUT

12шт.

13

32-1022

COTTER PIN,5/32" x 1 3/8"

(4 x 35 mm)

2шт.

Выбрано товаров: 13
