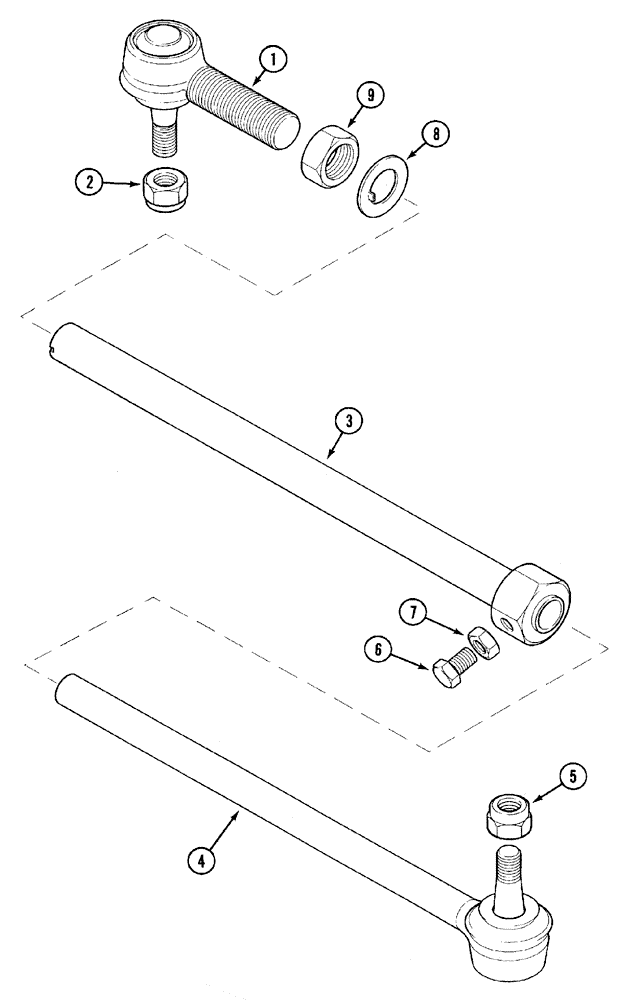

Запчасти Case IH C60 (05-09) - ADJUSTABLE TIE ROD (05) - STEERING

1538016C1

STEERING TIE-ROD

Consists Of 1 - 8

2шт.

1

1537872C1

BALL JOINT

Includes 2

1шт.

2

231-2409

LOCK NUT,9/16"-18, GB

9/16; 5

1шт.

3

111526A1

STEERING TIE-ROD,20.75 mm ID, 28 mm OD, 412 mm Length

412 mm (16.22 in) Long

1шт.

4

1332805C2

BALL JOINT

Includes 5

1шт.

5

231-2409

LOCK NUT,9/16"-18, GB

9/16; 5

1шт.

6

111527A1

SET SCREW

1шт.

7

425-107

NUT,7/16"-14, G5

1шт.

8

111528A1

WASHER

1шт.

9

111529A1

LOCK NUT

1шт.
