Запчасти Case IH C60 (05-02) - POWER STEERING CYLINDER AND TUBES, 2WD (05) - STEERING

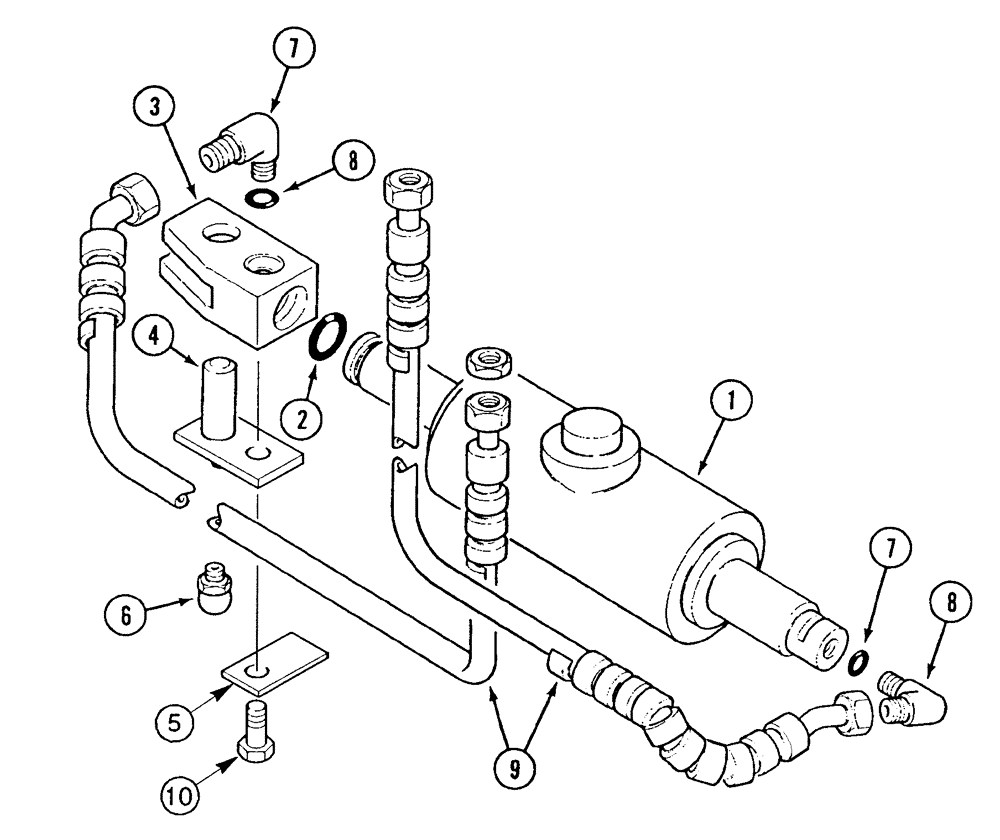

Схема запчастей Case IH C60 - (05-02) - POWER STEERING CYLINDER AND TUBES, 2WD (05) - STEERING
8
7
7
9
3
8
6
4
2
10
1
5

Артикул

Название

Примечание

Количество

1

188842A1

STEERING CYLINDER

See Page(s) 5-9

1шт.

84336125R

REMAN-HYD CYLINDER

C50, C60 , Reman for New P/N 188842A1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

103924A1

CLEVIS,3/4" - 16

1шт.

4

103921A1

PIN,19.98mm OD x 70mm L

1шт.

5

103926A1

WASHER

1шт.

6

219-17

LUBE NIPPLE,3/16" NPTF

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 8

2шт.

9

3121235R2

HOSE,6.35mm ID x 483mm L, SAE 100R1

483 mm (19 in)

2шт.

10

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

Выбрано товаров: 12
