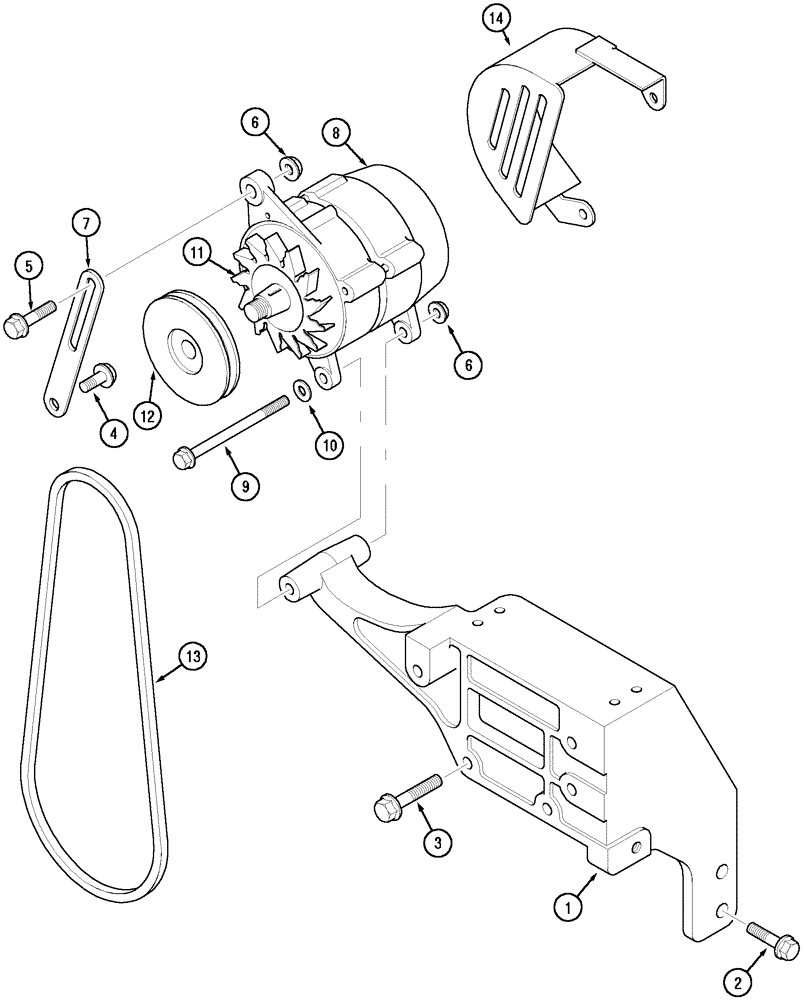

Запчасти Case IH C60 (04-16) - ALTERNATOR AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

235939A3

SUPPORT

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

3

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

4

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

5

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

7

236212A1

SUPPORT

1шт.

8

REF

INSTRUCTION

65 amp, Alternator, See Page(s) 4-41

1шт.

9

814-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

M8 x 120

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

11

299365A1

FAN

1шт.

12

REF

INSTRUCTION

Pulley, See Page(s) 4-41

1шт.

13

259289A1

BELT,10.00 mm W x 1000.00 mm L

1шт.

14

248036A2

GUARD

1шт.
