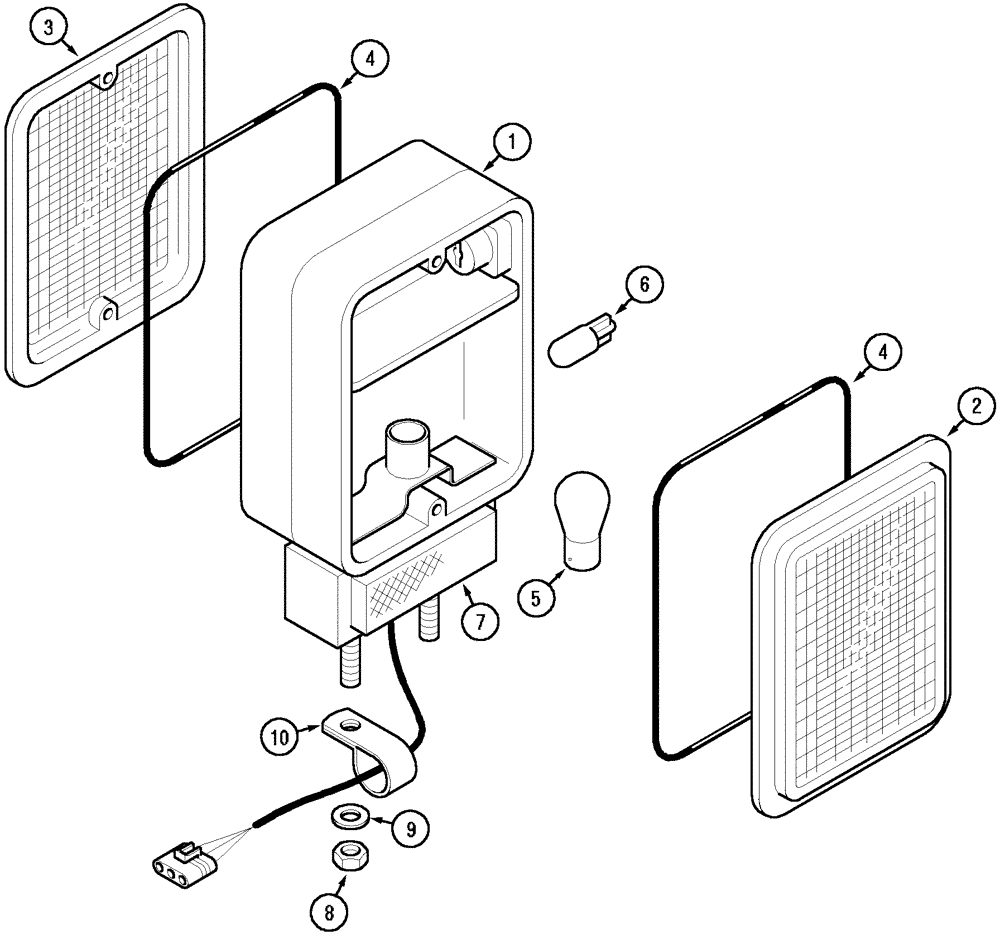

Запчасти Case IH C60 (04-09) - REAR LIGHTS, N.A. ONLY (04) - ELECTRICAL SYSTEMS

1

231553A1

HEADLIGHT

Includes 2 - 7

2шт.

2

232213A1

LENS

Rear, Amber, Red

1шт.

3

232212A1

LENS,135.8mm L x 90mm W, Amber

Front, Amber

1шт.

4

233561A1

O-RING,0.07" Thk x 4379" ID, -48, 70 Duro

2шт.

5

D71346

TAIL LAMP,12V

No. 168

1шт.

6

A41264

BULB,#1156, 12V

1шт.

7

NSS

NOT SOLD SEPARAT

Reflector

4шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

10

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

2шт.

1536628C1

ELECTRICAL WIRE

WIRE , Extra High Fenders, Not Illustrated

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR , Extra High Fenders, Not Illustrated

2шт.
