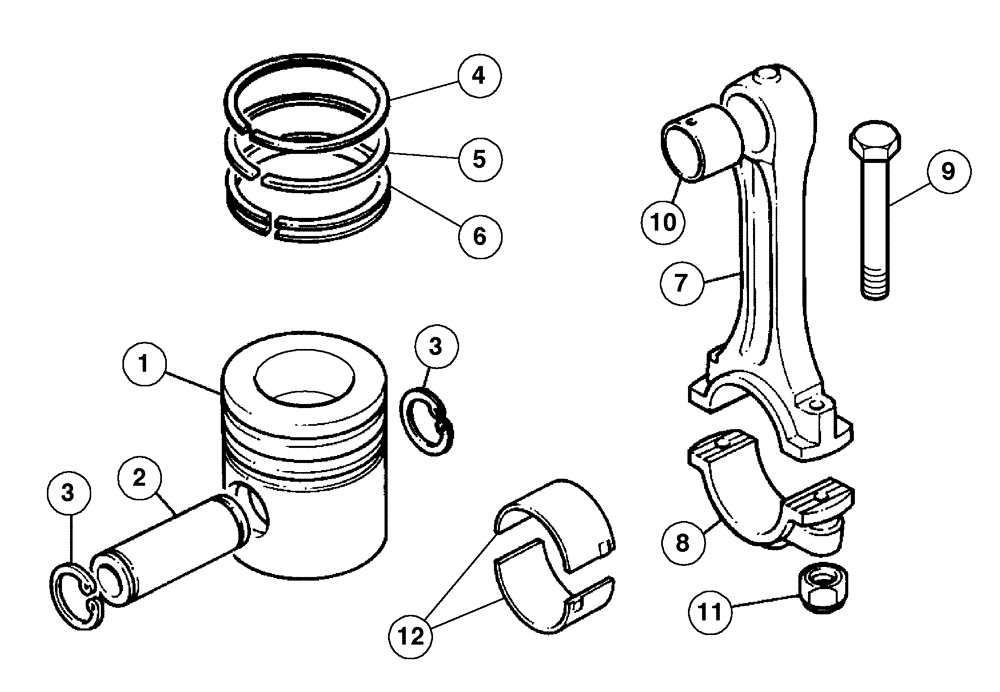

Запчасти Case IH C60 (02-28) - PISTONS AND CONNECTING RODS (02) - ENGINE

356695A1

PISTON ASSY.

C50, Stamped H, Consists Of 1 - 3

3шт.

296259A1

PISTON ASSY.

C50, Stamped L, Consists Of 1 - 3

3шт.

296640A1

PISTON ASSY.

C60, Consists Of 1 - 3

3шт.

1

NSS

NOT SOLD SEPARAT

Piston

1шт.

2

NSS

NOT SOLD SEPARAT

Pin

1шт.

3

295522A1

CIRCLIP

2шт.

296244A1

PISTON RING SET

C50, Consists Of 4,5,6

3шт.

296641A1

PISTON RING SET

C60, Consists Of 4,5,6

3шт.

4

NSS

NOT SOLD SEPARAT

Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Ring

1шт.

296266A1

ROD, CONNECTING

Consists Of 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

Rod

1шт.

8

NSS

NOT SOLD SEPARAT

Cap

1шт.

9

296080A1

BOLT

2шт.

10

296149A1

BUSHING

1шт.

11

296198A1

NUT

2шт.

12

296245A1

BEARING SET

C50, Standard, Set Of 3

1шт.

12

296260A1

BEARING SET

C60, Standard, Set Of 3

1шт.

12

296531A1

SET

C50, Undersize 0.25mm, Set Of 3

1шт.

12

296261A1

BEARING SET

C60, Undersize 0.25mm, Set Of 3

1шт.

12

296532A1

SET

C50, Undersize 0.50mm, Set Of 3

1шт.

12

296262A1

BEARING SET

C60, Undersize 0.50mm, Set Of 3

1шт.

12

296533A1

SET

C50, Undersize 0.75mm, Set Of 3

1шт.

12

296263A1

BEARING SET

C60, Undersize 0.75mm, Set Of 3

1шт.
