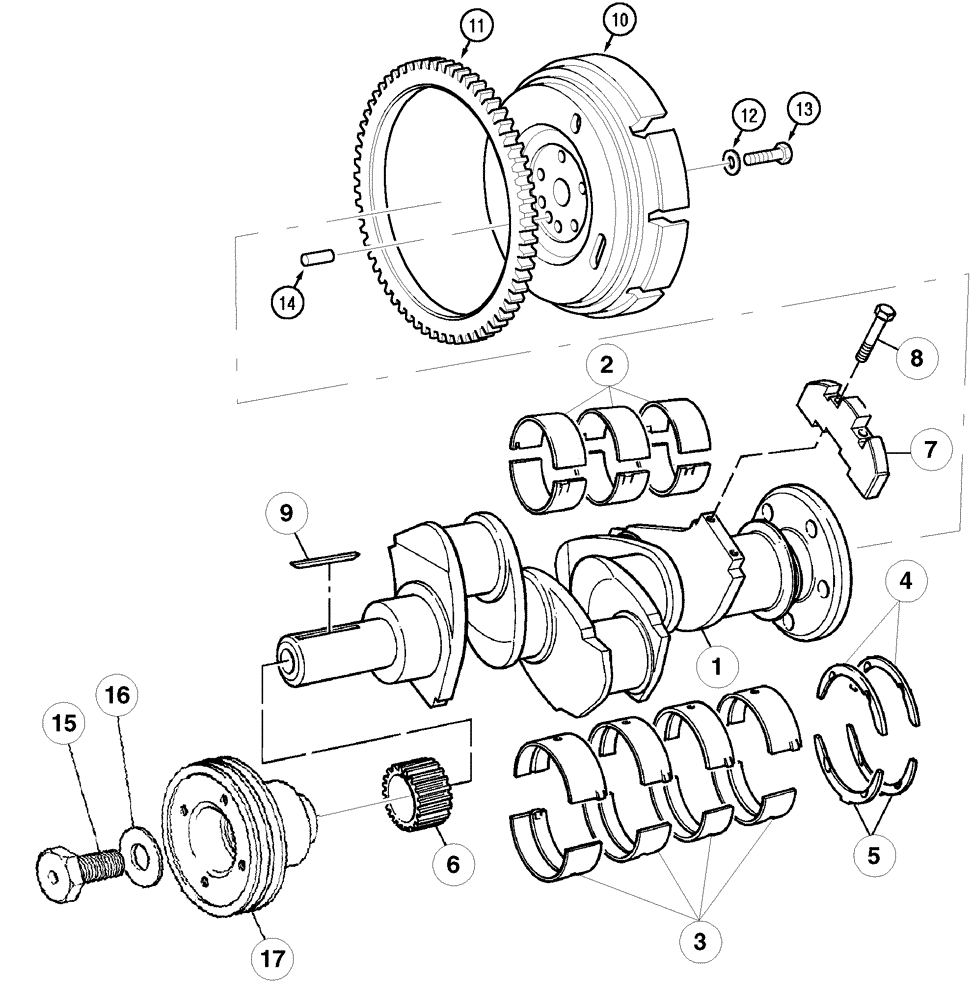

Запчасти Case IH C60 (02-27) - CRANKSHAFT (02) - ENGINE

295515A1

CRANKSHAFT

C50, Standard, Consists Of 1 - 5

1шт.

296639A1

CRANKSHAFT

C60, Standard, Consists Of 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Crankshaft

1шт.

2

REF

INSTRUCTION

Bearing, Con. Rod, Standard, Set Of 3, See Page(s) 2-61,63

1шт.

3

304892A1

BEARING SET

Set Of 4, Standard

1шт.

3

295877A1

BEARING SET

Set Of 4, Undersize 0.25

1шт.

3

295878A1

CRANKSHAFT BEARING

Undersize 0.50

1шт.

3

295879A1

CRANKSHAFT BEARING

Undersize 0.75mm

1шт.

4

296150A1

THRUST WASHER

Standard

2шт.

4

E115333

SEGMENT

Oversize 0.19mm

2шт.

5

296151A1

THRUST WASHER

Standard

2шт.

5

3105937R1

WASHER

Oversize 0.19 mm

1шт.

6

296152A1

PINION

1шт.

7

296156A1

BALANCER

2шт.

8

E115070

BOLT

4шт.

9

296208A1

BUCKET TOOTH KEY

1шт.

10

295509A2

FLYWHEEL

Includes 11

1шт.

11

3118310R1

SLEWING RING

1шт.

12

218499A1

WASHER

6шт.

13

291980A1

SCREW

6шт.

14

F62298

DOWEL

1шт.

15

295819A1

SCREW

1шт.

16

295826A1

WASHER

1шт.

17

295855A1

PULLEY

1шт.
