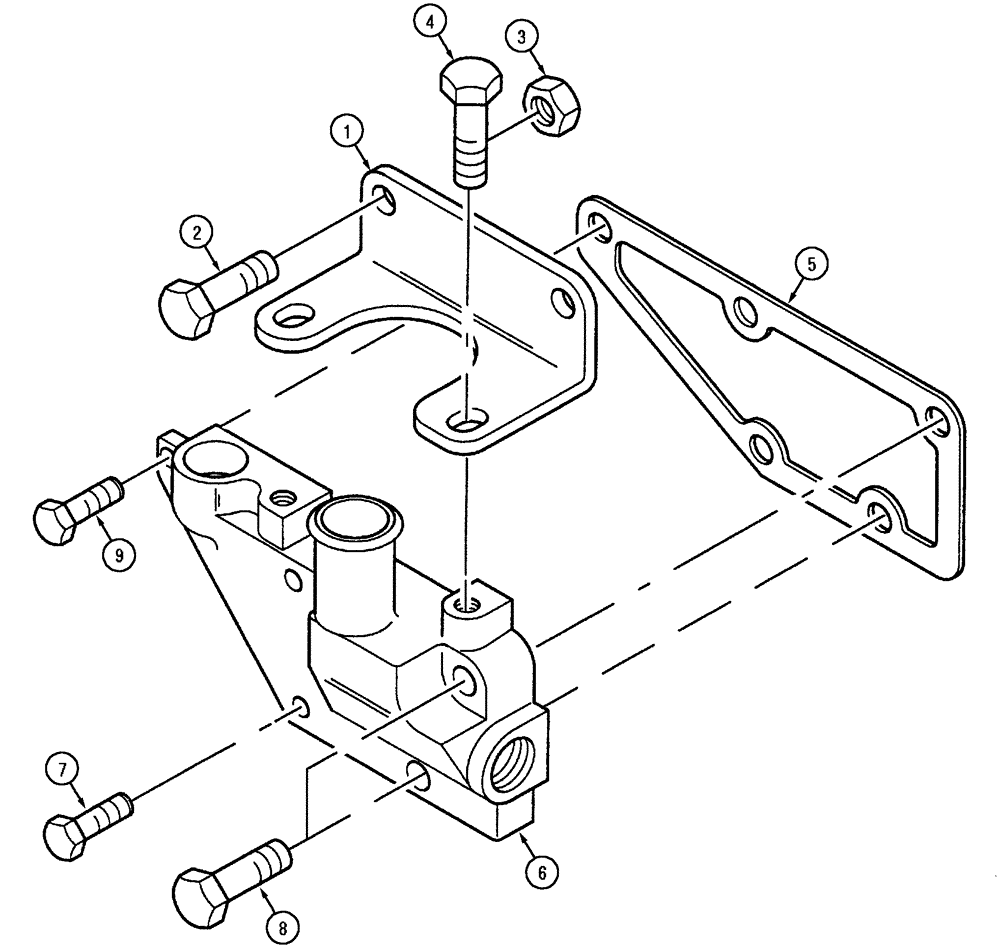

Запчасти Case IH C60 (02-14) - THERMOSTAT HOUSING (02) - ENGINE

1

334968A1

SUPPORT

Engine No. U324042D -

1шт.

1

295868A1

SUPPORT

Engine No. - U324041D

1шт.

2

217919A1

SCREW,Hex Flg, M10 x 25mm

Engine No. U324042D -

2шт.

2

218053A1

SCREW

Engine No. - U324041D

2шт.

3

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

4

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

5

296220A1

GASKET

1шт.

6

322591A1

FITTING

1шт.

7

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

8

281652A1

SCREW

2шт.

9

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

217-4

ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male

Not Illustrated

1шт.

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Not Illustrated

2шт.
