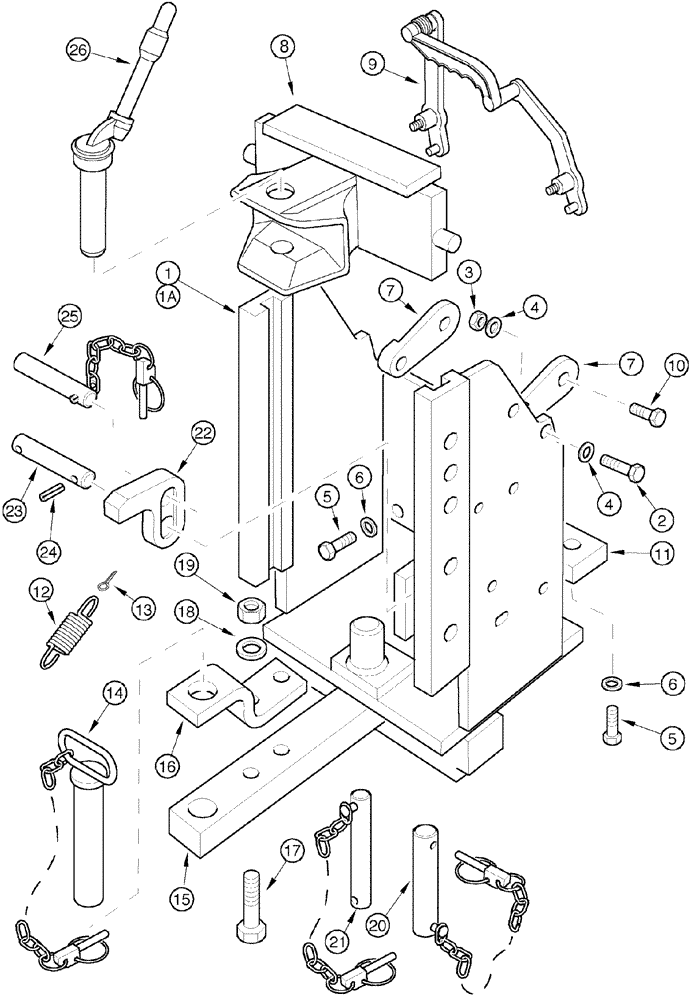

Запчасти Case IH C60 (09-28) - TRAILER HITCH - PITON FIXE (09) - CHASSIS/ATTACHMENTS

136203A1

HITCH ASSY

Version Without Shiftable P.T.O., Includes 1,7,8,9,11,14,15,20 - 26

1шт.

136202A1

HITCH ASSY

Version With Shiftable PTO, Includes 1A,7,8,9,11,14,15,20 - 26

1шт.

1

141032A1

FRAME, HITCH

1шт.

1b

141033A1

FRAME, HITCH

1шт.

2

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

3/4 x 2-1/4; 8

2шт.

3

429-1012

NUT,3/4"-10, G8

2шт.

4

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

4шт.

5

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

8шт.

6

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

21/32 x 1-5/16 x 3/16

8шт.

7

125706A2

LARGE PLATE

PLATE, LARGE

2шт.

8

141039A1

TRAILER HITCH

See Page(s) 9-65

1шт.

9

141015A1

HANDLE

See Page(s) 9-65

1шт.

10

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

3/4 x 1-1/2; 8

2шт.

11

139333A1

BAR

1шт.

12

1332053C2

SPRING

If So Equipped

2шт.

13

32-2024

COTTER PIN,5/16" x 1 1/2"

2шт.

14

1974215C3

HITCH PIN,40mm OD x 185mm L

2шт.

15

141034A1

DRAWBAR

Includes 16 - 19

1шт.

16

139127A1

DRAWBAR

1шт.

17

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

18

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

19

829-1416

NUT,M16, Cl 10

2шт.

20

139128A1

PIVOT PIN,30mm OD x 102mm L

1шт.

21

139129A2

HITCH PIN,19mm OD x 136mm L

2шт.

22

141035A2

LATCH

1шт.

23

141036A1

PIN

Includes 24

1шт.

24

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

2шт.

25

141038A1

PIN

1шт.

26

1974073C1

CLEVIS PIN

1шт.
