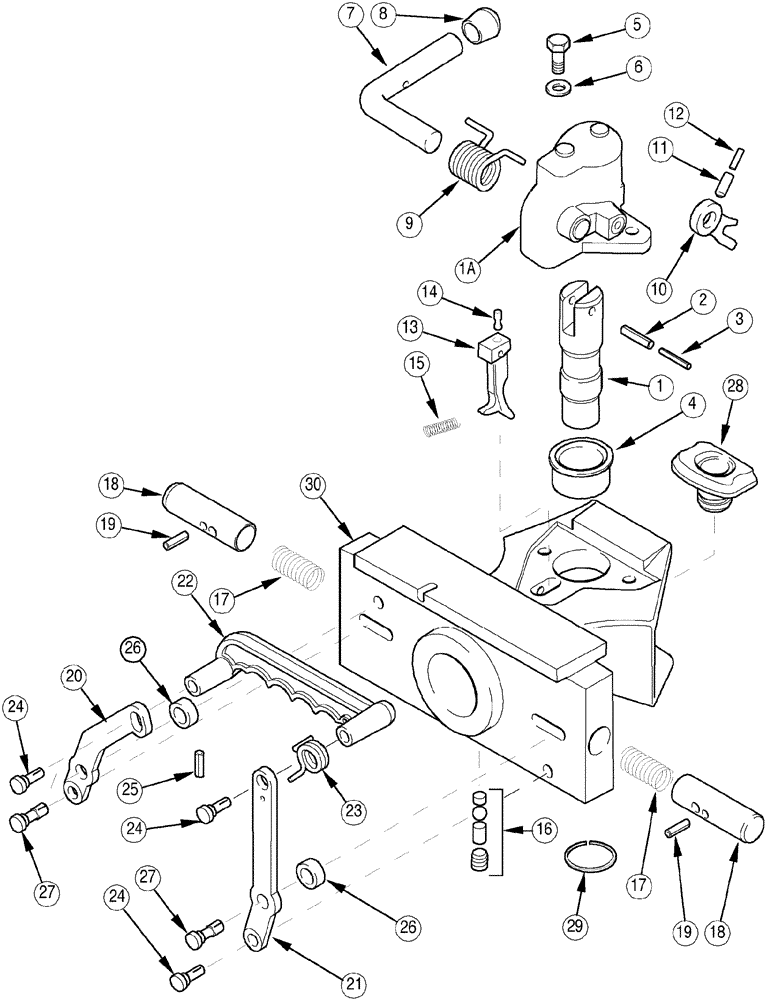

Запчасти Case IH C60 (09-26) - TRAILER HITCH - AUTOMATIC, AUTOMATIC CLEVIS (09) - CHASSIS/ATTACHMENTS

141011A1

TRAILER HITCH

Consists Of 1A - 30

1шт.

141025A1

LATCH ASSY.

Consists Of 1A - 15

1шт.

1b

NSS

NOT SOLD SEPARAT

Housing

1шт.

1

141026A1

PIN,32mm OD x 126mm L

32 mm, Includes 2,3

1шт.

2

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

3

932738R1

LOCK PIN,3.5mm OD x 30mm L, Slotted

1шт.

4

141028A1

BUSHING,32mm ID x 48mm OD x 28mm L

32 mm, Upper

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

892-11010

LOCK WASHER,M10

2шт.

141029A1

HANDLE

Includes 7 - 12

1шт.

7

141030A1

HANDLE,18mm OD

1шт.

8

1348109C1

COVER

1шт.

9

1348110C2

SPRING

1шт.

10

141031A1

CAM

1шт.

11

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

1шт.

12

Q5164

ROLL PIN,5mm OD x 36mm L, Slotted

1шт.

13

1530921C1

LEVER ASSY.

Includes 14,15

1шт.

14

1530932C1

CLEVIS PIN

1шт.

15

1348121C1

SPRING

1шт.

16

1534047C1

KIT

1шт.

17

141013A1

SPRING

2шт.

18

141014A1

PIN

2шт.

19

738-5520

LOCK PIN,5mm OD x 20mm L, Slotted

2шт.

141015A1

HANDLE

Consists Of 20 - 27

1шт.

20

141016A1

BAR

1шт.

21

141017A1

BAR

1шт.

22

141018A1

LEVER

1шт.

23

141019A1

SPRING

1шт.

24

141020A1

HEADED PIN

4шт.

25

738-1516

LOCK PIN,M5 x 16, Slotted

1шт.

26

141021A1

SPACER,10.5mm ID x 18mm OD x 8mm L

1шт.

27

141022A1

HEADED PIN

2шт.

28

141023A1

BUSHING

1шт.

29

800-5140

SNAP RING,M40, Ext, Hvy

(2.5mm Thk)

1шт.

30

NSS

NOT SOLD SEPARAT

Clevis

1шт.
