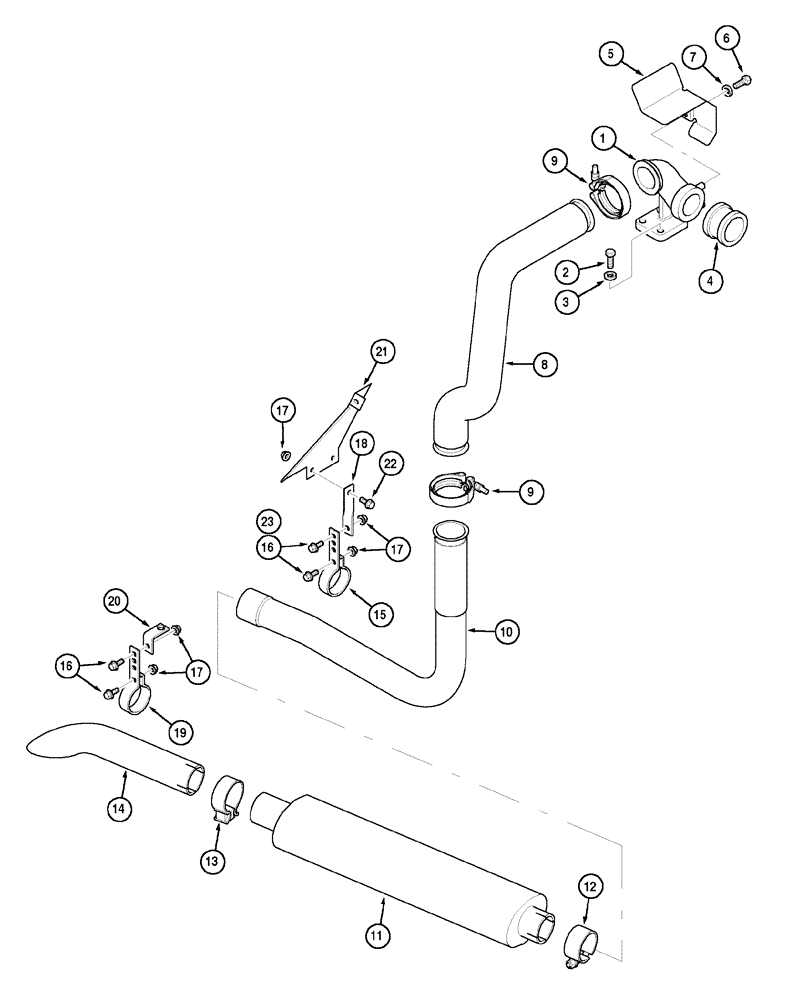

Запчасти Case IH C60 (02-12) - UNDERSLUNG EXHAUST, C60 (02) - ENGINE

1

251919A1

ADAPTER

1шт.

2

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

4

252006A1

ADAPTER

1шт.

5

292038A2

GUARD

1шт.

6

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

7

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

8

282253A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , Front

1шт.

9

A170467

CLAMP,72mm ID

2шт.

10

284167A1

PIPE

1шт.

11

282084A2

MUFFLER

Includes 12

1шт.

12

283249A1

COLLAR

1шт.

13

283250A2

CLAMP

1шт.

14

283509A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , 420 mm, Rear

1шт.

15

1536736C1

SUPPORT

Serial No. - JJE1003769

1шт.

15

311470A1

SUPPORT

Serial No. JJE1003770 -

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

S/N JJE1003769

4шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

S/N JJE1003770

2шт.

17

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

18

282255A2

SUPPORT

1шт.

19

284085A1

CLAMP

1шт.

20

284159A1

SUPPORT

1шт.

21

299391A1

GUARD

1шт.

22

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

23

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

S/N JJE1003770 -

2шт.
