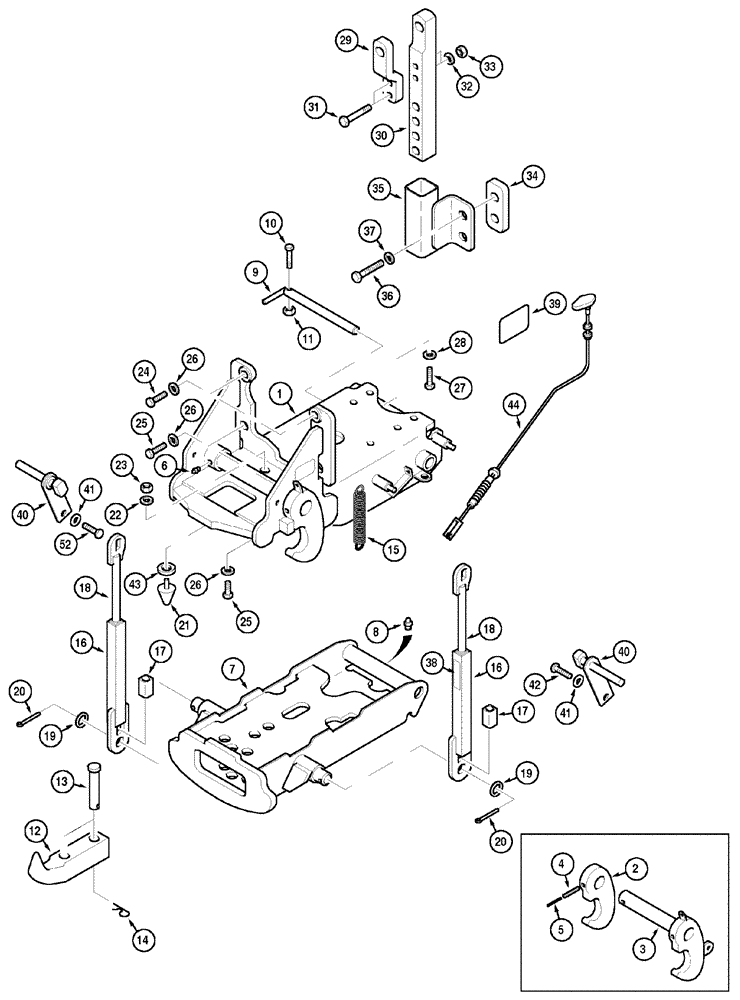

Запчасти Case IH C60 (09-25) - AUTOMATIC HITCH, DROMONE (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

Hitch Assy, Consists Of 1 - 56

1шт.

1

303225A1

FRAME

Includes 2 - 6

1шт.

2

304157A1

HOOK

Left

1шт.

3

305142A1

HOOK

Right

1шт.

4

838-51080

LOCK PIN,M10 x 80 Slotted

1шт.

5

838-5680

SPLIT PIN/SAFETY PIN

6 x 80 mm

1шт.

6

219-25

LUBE NIPPLE,5/16" - 32

2шт.

7

228726A1

FRAME

Includes 8

1шт.

8

219-25

LUBE NIPPLE,5/16" - 32

1шт.

9

228727A1

PIN

1шт.

10

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

11

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

12

132252A1

HOOK

1шт.

13

228729A1

PIN,28mm OD x 117mm L

1шт.

14

136-163

HAIR PIN COTTER,Int, 5/16" x .177

1шт.

15

281262A1

SPRING

1шт.

243532A1

LIFTING ROD

Consists Of 16 - 18

2шт.

16

228734A1

HYD CYL SLEEVE

2шт.

17

228735A1

BUSHING

2шт.

18

228733A1

LIFTING ROD

2шт.

19

495-81197

WASHER,1 3/16" x 1 3/4" x .065"

1-3/16 x 1-3/4 x 1/16

2шт.

20

733-8040

COTTER PIN,M8 x 40

2шт.

21

235272A1

HITCH DAMPER

98 mm

1шт.

23

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

24

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8

2шт.

25

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

5шт.

26

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

7шт.

27

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

28

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

4шт.

29

132267A1

DRAWBAR

1шт.

30

132268A1

DRAWBAR

1шт.

31

828-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

32

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

2шт.

33

829-1416

NUT,M16, Cl 10

2шт.

34

241286A1

SPACER

If So Equipped

1шт.

35

241267A1

SUPPORT

1шт.

36

614-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

2шт.

37

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

38

141500A1

DECAL

1шт.

39

236006A1

DECAL

English

1шт.

40

225250A2

HANDLED SHAFT

2шт.

41

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

42

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

43

304148A1

SPACER,10mm ID x 50mm OD x 10mm L

1шт.

44

293020A3

CABLE ASSY.

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.
