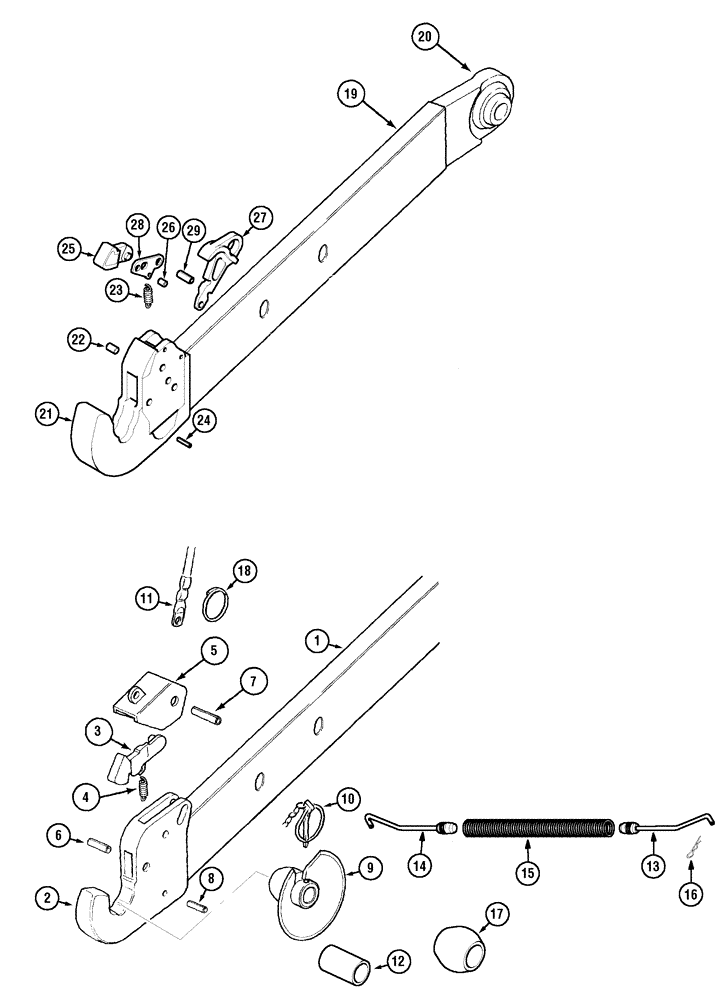

Запчасти Case IH C60 (09-23) - LOWER LINKS - THREE POINT HITCH - HOOK (09) - CHASSIS/ATTACHMENTS

1

138920A2

LOWER LINK

Left, Includes 2 - 8

1шт.

1

138921A2

LOWER LINK

Right, Includes 2 - 8

1шт.

2

1998125C1

DRAW HOOK

1шт.

3

1974206C2

LATCH ASSY.

1шт.

4

1974207C1

SPRING

1шт.

5

1974208C1

LEVER

1шт.

6

30783R1

LOCK PIN,M6 x 28, Slotted

1шт.

7

905985R1

LOCK PIN,M13 x 45, Slotted

1шт.

8

905984R1

LOCK PIN,M13 x 32, Slotted

1шт.

9

1537371C1

BALL JOINT

1шт.

10

1537373C1

LINCH PIN

1шт.

11

1534794C1

ROPE

1800 mm

1шт.

12

119576A1

SPACER

45 mm

2шт.

13

189585A1

LINKAGE

Left

1шт.

14

189586A1

LINKAGE

Right

1шт.

15

189587A1

SPRING

1шт.

16

198121A1

SPRING CLIP

2шт.

17

3224240R1

BALL,20.7mm ID x 56mm OD

2шт.

18

1534796C1

LOCK WASHER

2шт.

138920A3

LOWER LINK

Left, Consists Of 19 - 29

1шт.

138921A3

LOWER LINK

Right, Consists Of 19 - 29

1шт.

19

NSS

NOT SOLD SEPARAT

Link

1шт.

20

NSS

NOT SOLD SEPARAT

Ball

1шт.

357315A1

HOOK

CAT II, Consists Of 21 - 29

1шт.

21

NSS

NOT SOLD SEPARAT

Claw

1шт.

22

NSS

NOT SOLD SEPARAT

Pin

1шт.

23

357749A1

SPRING,16.5mm OD x 36mm L

1шт.

24

838-3636

PIN,M6 x 36, Coiled

6 x 26 mm

1шт.

370031A1

LATCH

CAT II, Consists Of 25 - 28

1шт.

25

359044A1

DRAW HOOK

CAT II

1шт.

26

359042A1

PIN

8.3 x 10 mm

1шт.

27

357748A1

LATCH

1шт.

28

357751A1

LEVER

1шт.

29

NSS

NOT SOLD SEPARAT

Pin

1шт.
